- 16 - 7VT600-RZ Series Motherboard
English

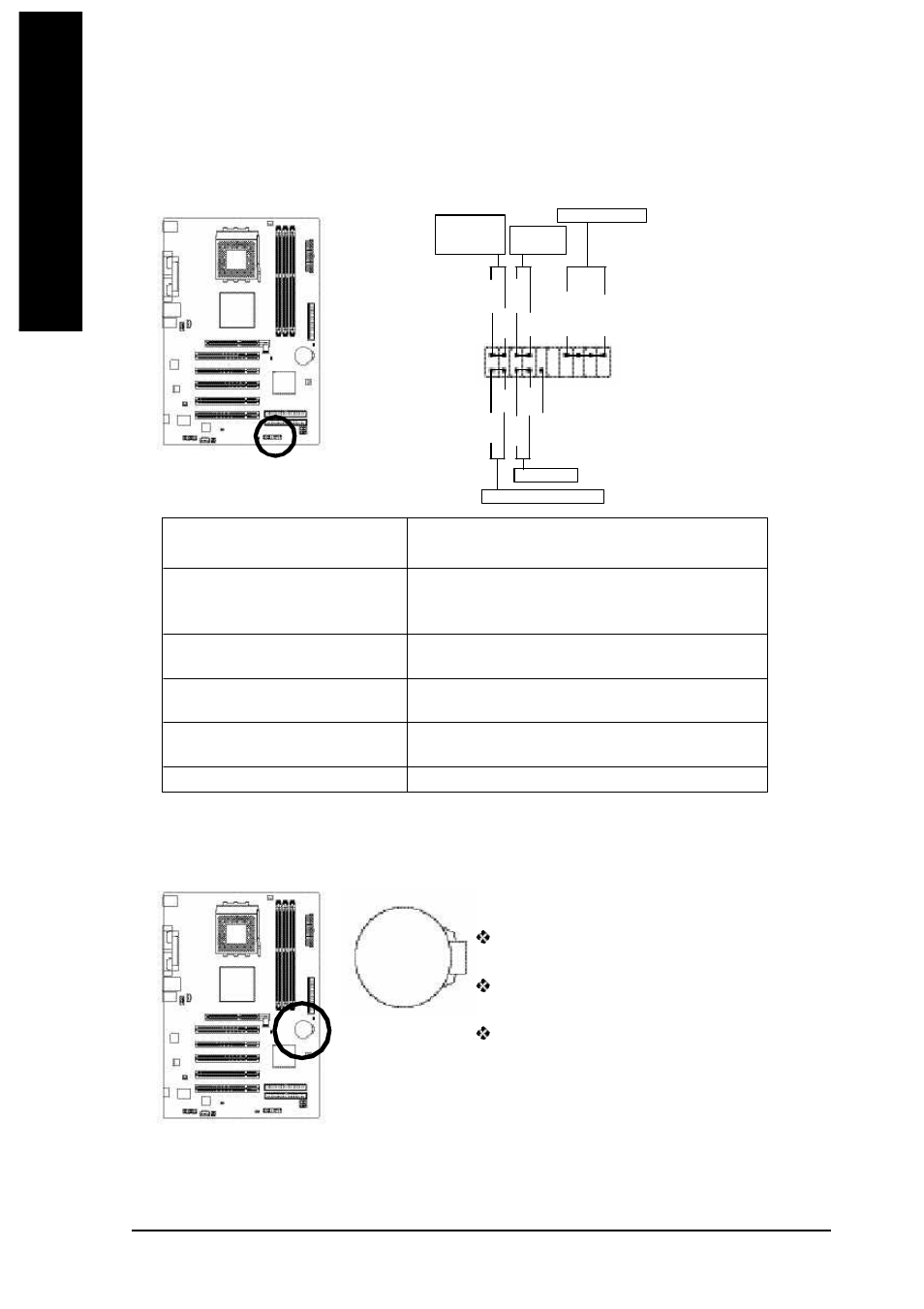

7) F_PANEL (2 x 10 pins Connector)
Please connect the power LED, PC speaker, reset switch and power switch etc. of your chassis front
panel to the F_PANEL connector according to the pin assignm ent below.
1
2
1 9
2 0
HD-
HD+
RES+
RES-
NC
IDE Ha rd Di sk Acti ve LED
Reset Swi tch
SPEAK- MSG-
MSG+
PW-
PW+
Messa ge L ED/
Po we r /
Sl ee p LED
Sp eaker Co nne ctor
SPEAK+
1 1
1 1 1
Soft Po we r
Con nector
HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)
Pin 2: LED cathode(-)
SPK (Speaker Connector) Pin 1: VCC(+)
Pin 2- Pin 3: NC
Pin 4: Data(-)
RST (Reset Switch) Open: Normal Operation
Close: Reset Hardware System
PW (Soft Power Connector) Open: Normal Operation
Close: Power On/Off
MPD(Message LED/Power/ Pin 1: LED anode(+)
Sleep LED) Pin 2: LED cathode(-)
NC NC
8) BATTERY (Battery)
CAUTION
Danger of explosion if battery is incorrectly
replaced.
Replace only with the same or equivalent type
recommended by the manufacturer.
Dispose of used batteries according to the
manufacturer's instructions.
+
If you want to erase CM OS...
1. Turn off the computer and unplug the power cord.
2. Rem ove the battery, wait for 30 second.
3. Re-install the battery.
4. Plug the power cord and turn on the computer.
