Step 2: Install the Central Processing Unit (CPU)
Before installing the processor, adhere to the following warning:
1. Please make sure the CPU type is supported by the motherboard.
2. The processor will overheat without the heatsink and/or fan, resulting in permanent
irreparable damage.
3. If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause
improper installation. Please change the insert orientation.
4. Apply therm al grease between the processor and cooling fan.
5. Never run the processor without the heatsink properly and firmly attached. Permanent
dam age will result.
6. Please set the CPU host frequency in accordance with your processor's specifications.
We don't recommend you to set the system bus frequency over the CPU's specification
because these specific bus frequencies are not the standard specifications for CPU,
chipset and most of the peripherals. Whether your system can run under these specific
bus frequencies properly will depend on your hardware configurations, including CPU,
Memory, Cards… etc.

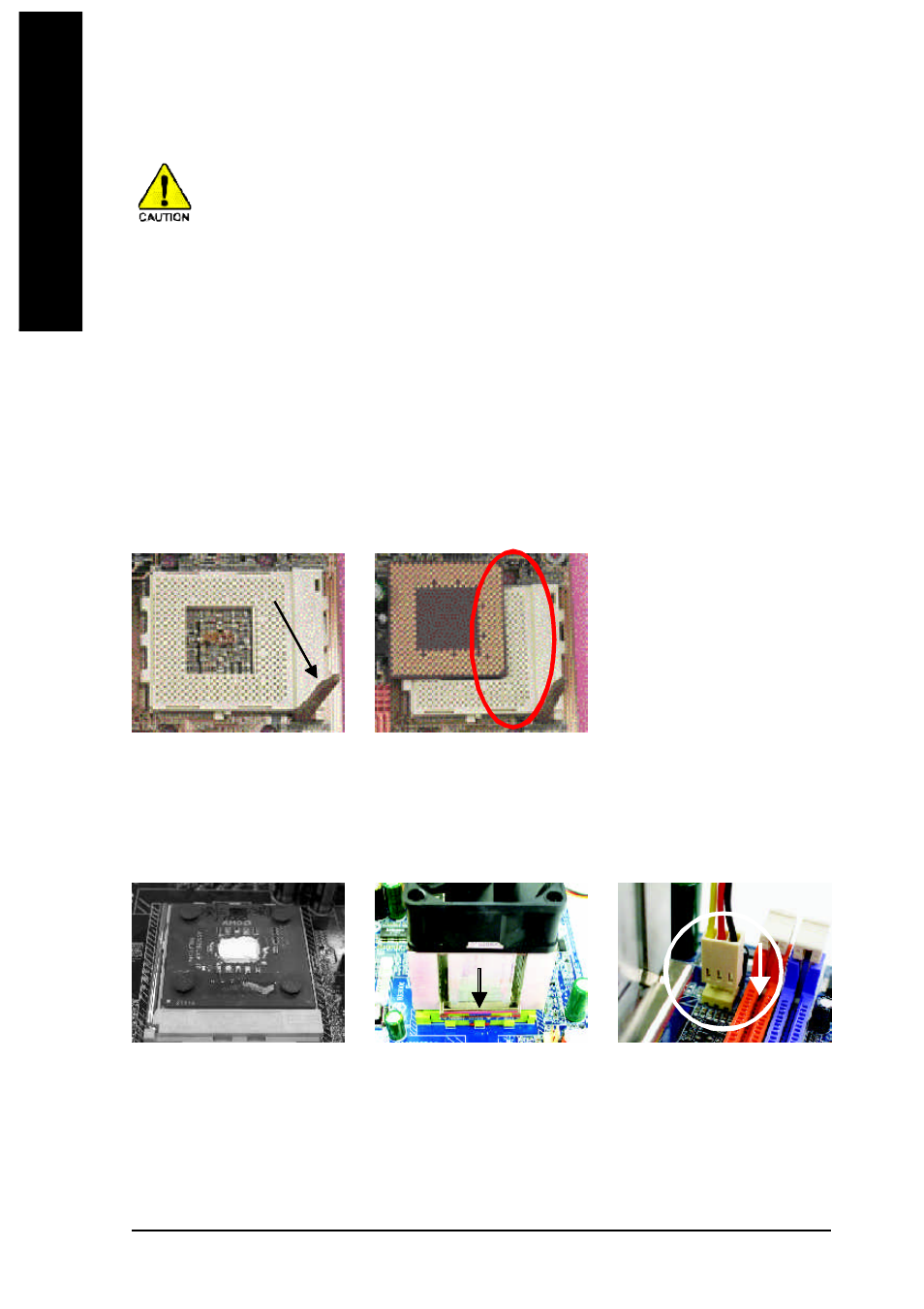

Step 2-1: CPU Installation
Figure 1.
Pull the rod to the 90-degree
directly.
Figure 2.
Locate Pin 1 in the socket and look
for a (golden) cut edge on the CPU
upper corner. Insert the CPU into
the socket. (Do not force the CPU into the socket.) Then move the
socket lever to the locked position while holding pressure on the
center of the CPU.
Step 2-2: CPU Cooling Fan Installation
Figure 1.
Apply the thermal tape(or grease)
to provide better heat conduction
between your CPU and cooling
fan. Figure 2.
Fasten the cooling fan support-
ing-base onto the CPU socket
on the motherboard.
Socket Actuation Lever
Figure 3.
Make sure the CPU fan is plugged
to the CPU fan connector, than
the install completely.
