- 12 - 7VT600-RZ Series Motherboard
English
y
u
v
x
w
y
z
{
|
}
Step 5: Install I/O Peripherals Cables

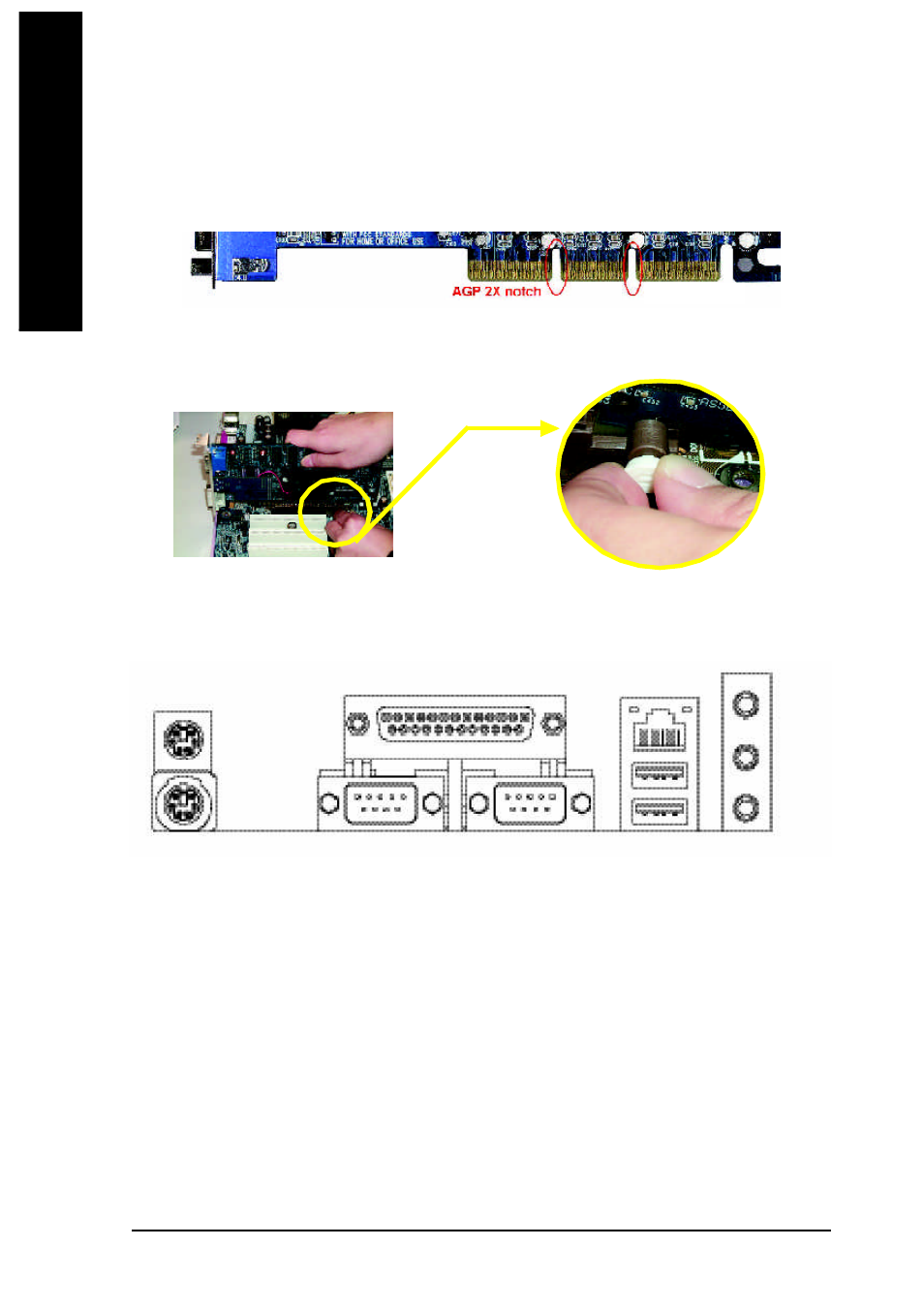

Step 5-1: I/O Back Panel Introduction
u PS/2 Keyboard and PS/2 Mouse connector
This connector supports standard PS/2 keyboard and PS/2 mouse.
v Parallel port (LPT)
Device like printer can be connected to Parallel port.
w/x Serial ports (COMA / COMB)
Mouse and modem etc. can be connected to Serial port.
y LAN port *
LAN is fast Ethernet with 10/100Mbps speed.
z USB port
Before you connect your device(s) into USB connector(s), please make sure your device(s)
such as USB keyboard, mouse, scanner, zip, speaker...etc. Have a standard USB interface.
Also make sure your OS supports USB controller. If your OS does not support USB controller,
please contact OS vendor for possible patch or driver upgrade. For more information please
contact your OS or device(s) vendors.
" * " Support 7VT600-RZ only.
AGP Card
Step 4: Install Expansion Cards
1. Read the related expansion card's instruction document before install the expansion card into
the com puter.
2. Please m ake sure your AGP card is AGP 4X/8X (1.5V).
3. Please carefully pull out the small white- drawable bar at the end of the AGP slot when you try to
install/ Uninstall the AGP card. Please align the AGP card to the onboard AGP slot and press firmly
down on the slot .M ake sure your AGP card is locked by the sm all white- drawable bar.
AGP 4X /8X notch
