Replacing the system board 53

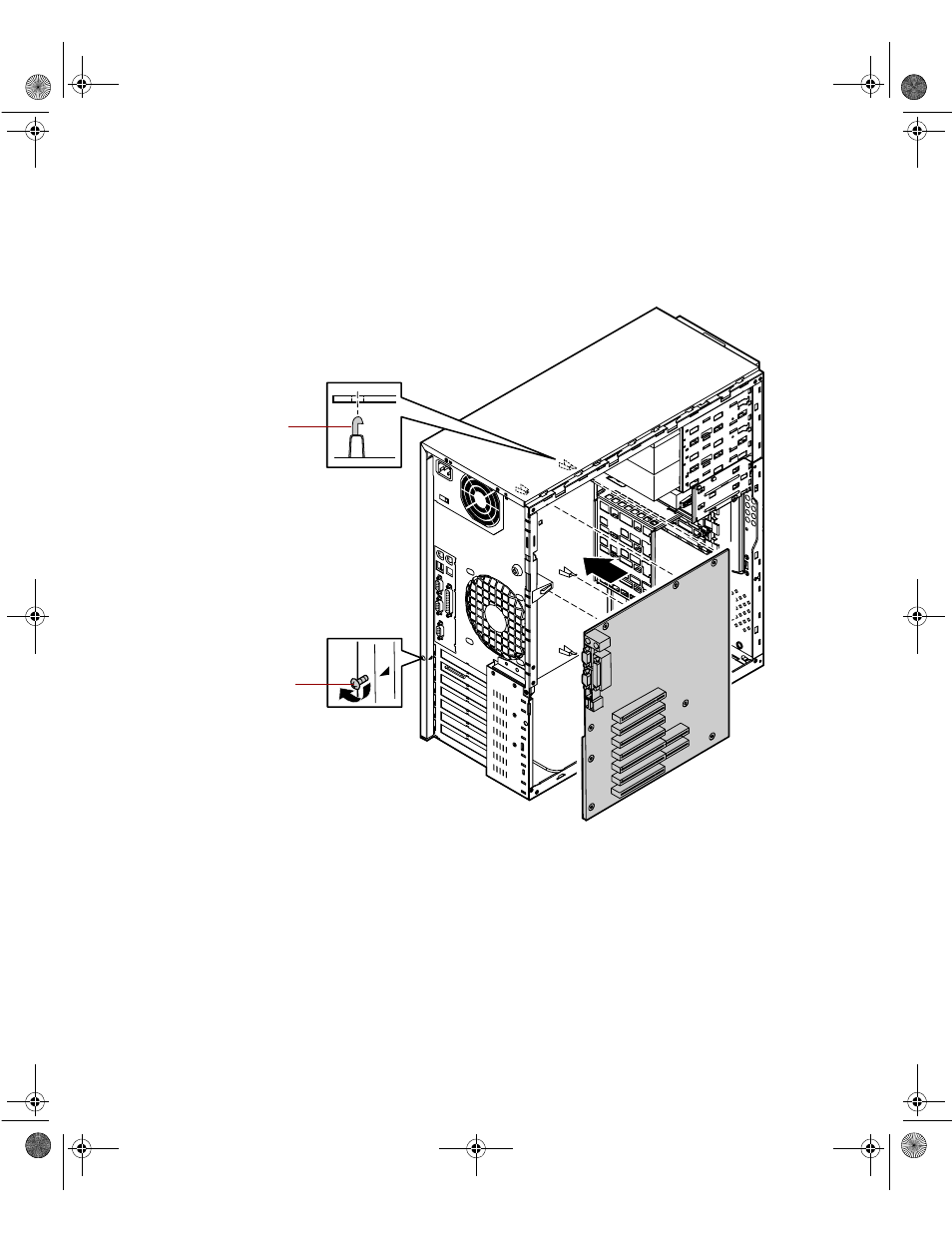

2 Holding the system board by the top and bottom edges, place it in the
case by aligning the mounting holes on the board with the standoffs
(threaded) and standoff retention hooks on the right side of the case.
Carefully align the I/O panel on the rear of the board with the I/O plate
on the case.
3 Holding the system board in place, tighten the retaining screw on the
right rear of the case.
4 Replace the retention screws previously removed from the system board,
then tighten the screws.
Standoff
retention hook
System board
retaining screw
