Magnum DS8016 Dual-Speed Stackable Hubs Installation and User Guide (07/06)

14

www GarrettCom com

.

.

Example 4:

A Magnum DS8016-R serves a good solution for the user, who expect a

high-availability, neat networking connection with clear visible display of LEDs port.

Specially a place where existing network is supporting10Mbps user and want to expand the

network with 100Mbps fast ethernet. Magnum DS8016-R equipped with bridge module

provide a very effective and reliable solution for these users.

+

GND

LK/RX
POR T

100

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

PWR BR

C OL 10
C OL 100

Magnum DS8016 Stackable Hub

Server

100

100

100

10 Mb Hub

10

1 2 3 4 5 6 7 8 9 10 11 12

10

10

10

100

Print Server

100

100

100

100

100

100

10

100

GA RRETT

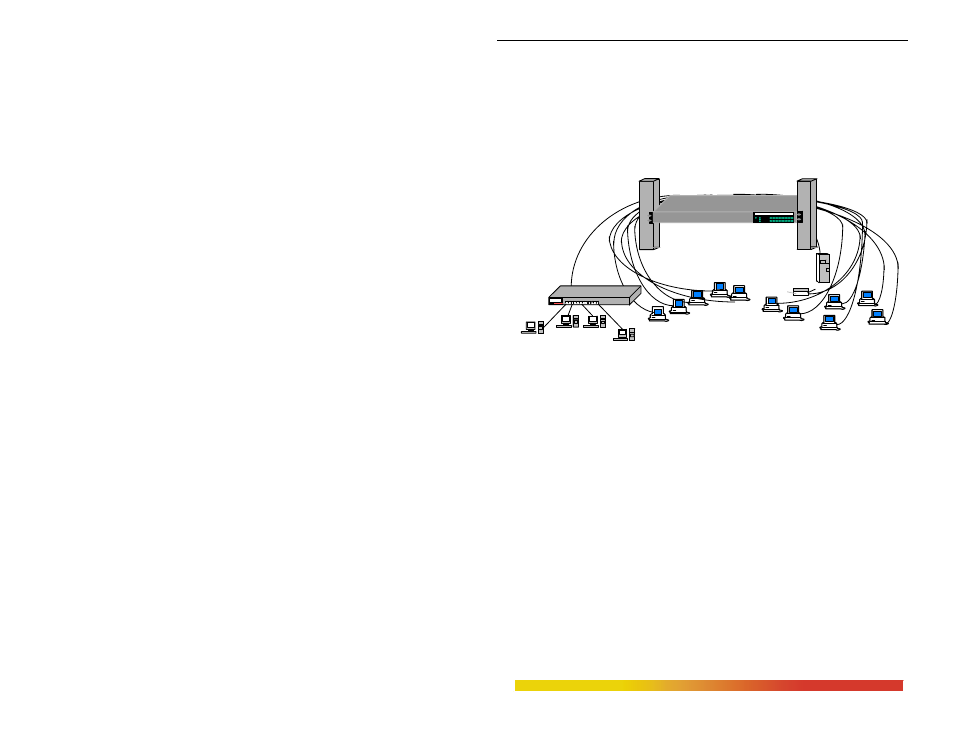

Magnum DS8016-R connects 10Mbps and 100Mbps domain with front LEDs display

In a Telecommunication co. the user expects a very reliable and high availability system,

which provide them the ability to join their existing 10Mbps network with fast ethernet. The

Magnum DS8016-R based on Dual-Speed with bridging facility communicate smoothly

between 10Mbps and 100Mbps . The front panel LED display and rear port connection gives

an adding advantage to run the neat network setup and help the user to trace out the defective

port easily. Magnum DS8016-R has an another adding feature to run at Dual-source 48VDC,

that gives a high availability and secure network.
