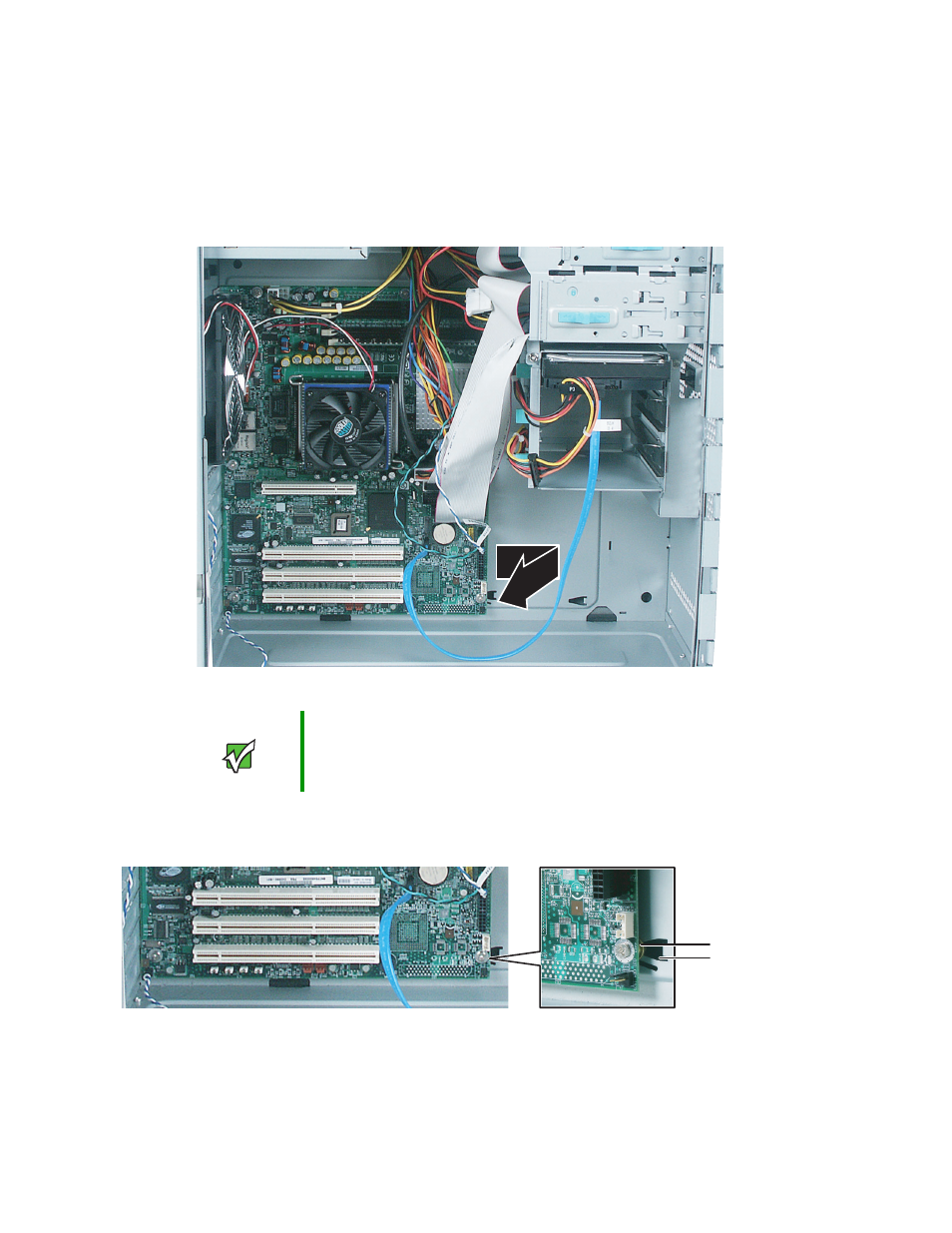

Remove the system board thumbscrew.
11
Slide the system board toward the front of the case, then lift it away from the case.
12
Slide the new system board’s standoffs into the keyhole slots, then slide the board
toward the back of the case.
Important
The new system board must have special standoffs
(
pem studs) mounted on the bottom of the board. If
necessary, use the standoffs from the original system
board.
Standoff
Keyhole slot
