Chapter 4: Operating the Autoloader
www.gateway.com
The Operator’s Panel
The Operator’s Panel consists of:
■ Status LEDs
■ LCD
■ Keypad
Status LEDs
The LEDs are updated during power up and reset sequences. When you turn
on the autoloader or do a software reset, the autoloader turns on all LEDs as
soon as the power-on self-test (POST) allows.
When mechanical initialization starts, all LEDs turn off and the
READY/ACTIVITY LED flashes at rate of approximately one second per cycle.
When the mechanical initialization is complete, the READY/ACTIVITY LED
stops flashing.
If a loader failure occurs, the READY/ACTIVITY LED turns off and the error LED
turns on. The Operator’s Panel also displays an appropriate error code to help
identify the failure.

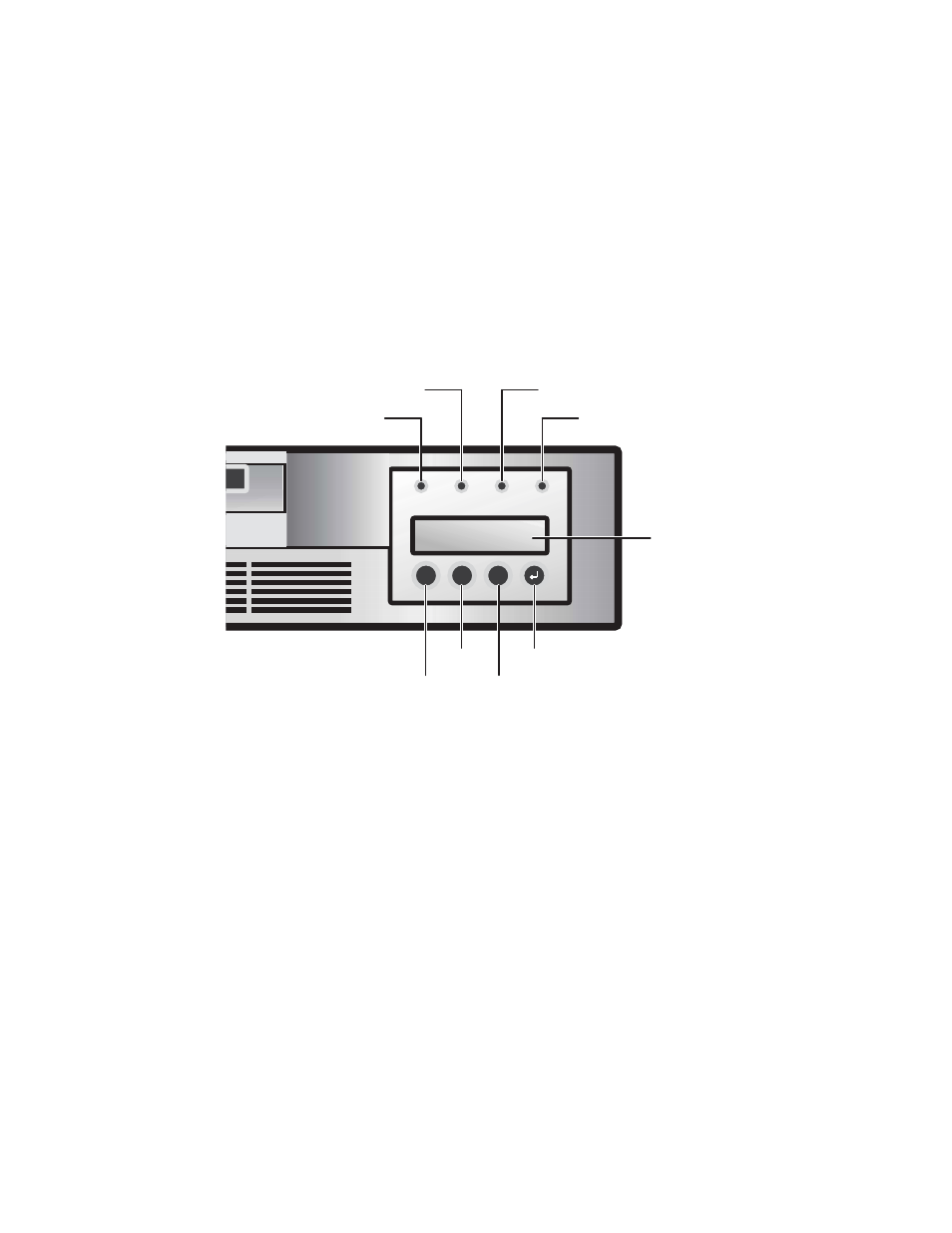

X X X X -- + +
Ready/activity LED
Clean Drive LED Media attention LED
Error LED
LCD
Enter Previous
Next Cancel
