Grizzly G4000 User Manual
Page 54

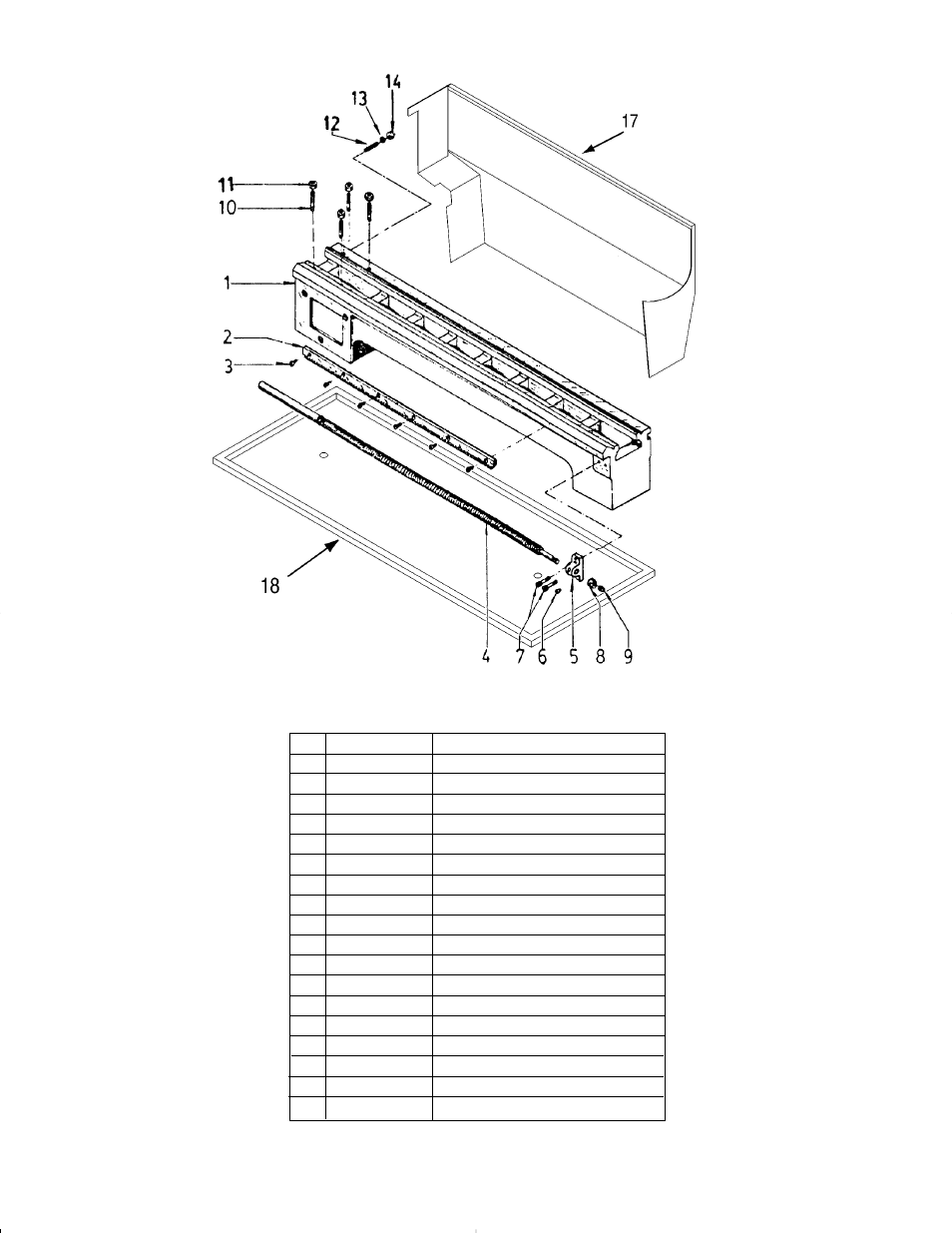

G4000 9'' x 19'' Lathe
-53-
R
RE
EF
F
P
PA
AR
RT
T #
#
D
DE
ES
SC
CR
RIIP
PT
TIIO
ON
N
01
P40001301
BED
02
P40001302
RACK
03
PSB18M
CAP SCREW M4-0.7 x 8mm
04
P4000706
FEED SCREW
05
P40001305
BRACKET
06
P40001306
OIL PORT
07
PSB02M
CAP SCR M6-1.0 x 20mm
08
P40001308
NUT
09
PSS17M
SET SCREW
10
P40001310
STUD M8-1.25 X 28
11
PN03M
HEX NUT
12
PSS12M
SET SCR M8-1.25 x 6mm
13
PW03M
FLAT WASHER 6mm
14
PN01M
HEX NUT M6-1.0
15
PB01M
HEX BOLT M10-1.5 x 30mm
16
P40001316
TOOL BOX
17
P40001317
CHIP SHIELD
18
P40001318
CHIP PAN
