G0604 6" X 56" Jointer
-41-
To set the 90˚ fence stop:
1. Loosen the set screw in the plunger lock
collar, shown in Figure 63, and loosen the
fence tilt lock.
2. Using a 90° square, adjust the fence to the
90° position, as shown in Figure 63.
To set the 45° outward fence stop:
1. Loosen the fence tilt lock, and position the
fence against the 45° outward positive stop
bolt.
2. Loosen the jam nut on the 45˚ outward fence
positive stop bolt ( Figure 64).

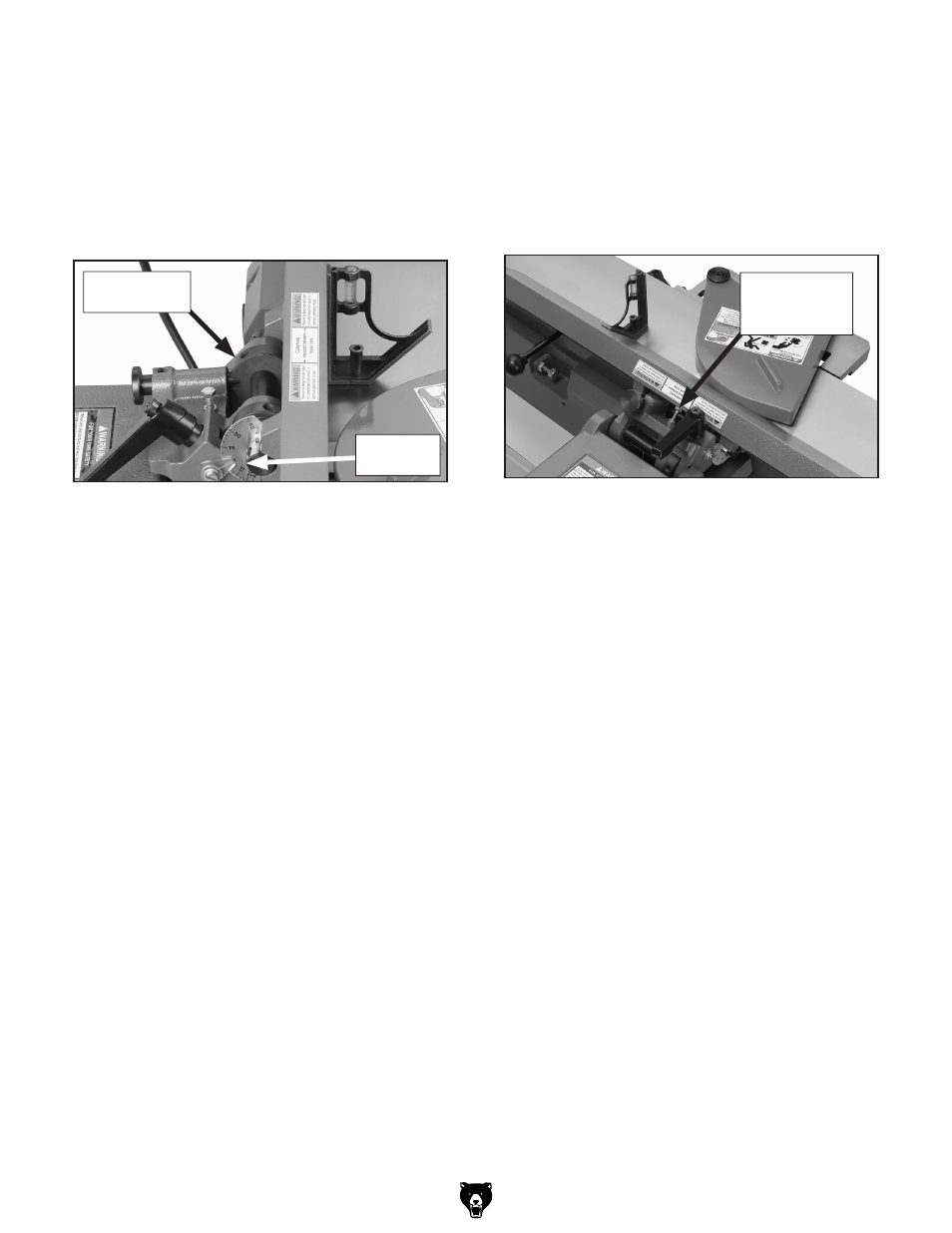

Figure 63. Adjusting fence to 90˚.
3. Adjust the 45˚ outward positive stop bolt until
the fence is exactly 45° outward while rest-
ing on the bolt (check the angle with a sliding
bevel set to 135°).
4. Retighten the jam nut loosened in Step 2.
Figure 64. Adjusting fence 45˚ outward.
Plunger
Lock Collar
3. Tighten the set screw in the plunger lock col-
lar.
4. Adjust the indicator (if necessary) to 0° to
calibrate the fence tilt scale.
Fence Tilt
Scale
45° Outward
Positive Stop
Bolt
