Grizzly G1019 - Manual (Page 13)

G1019 14'' Bandsaw -11-

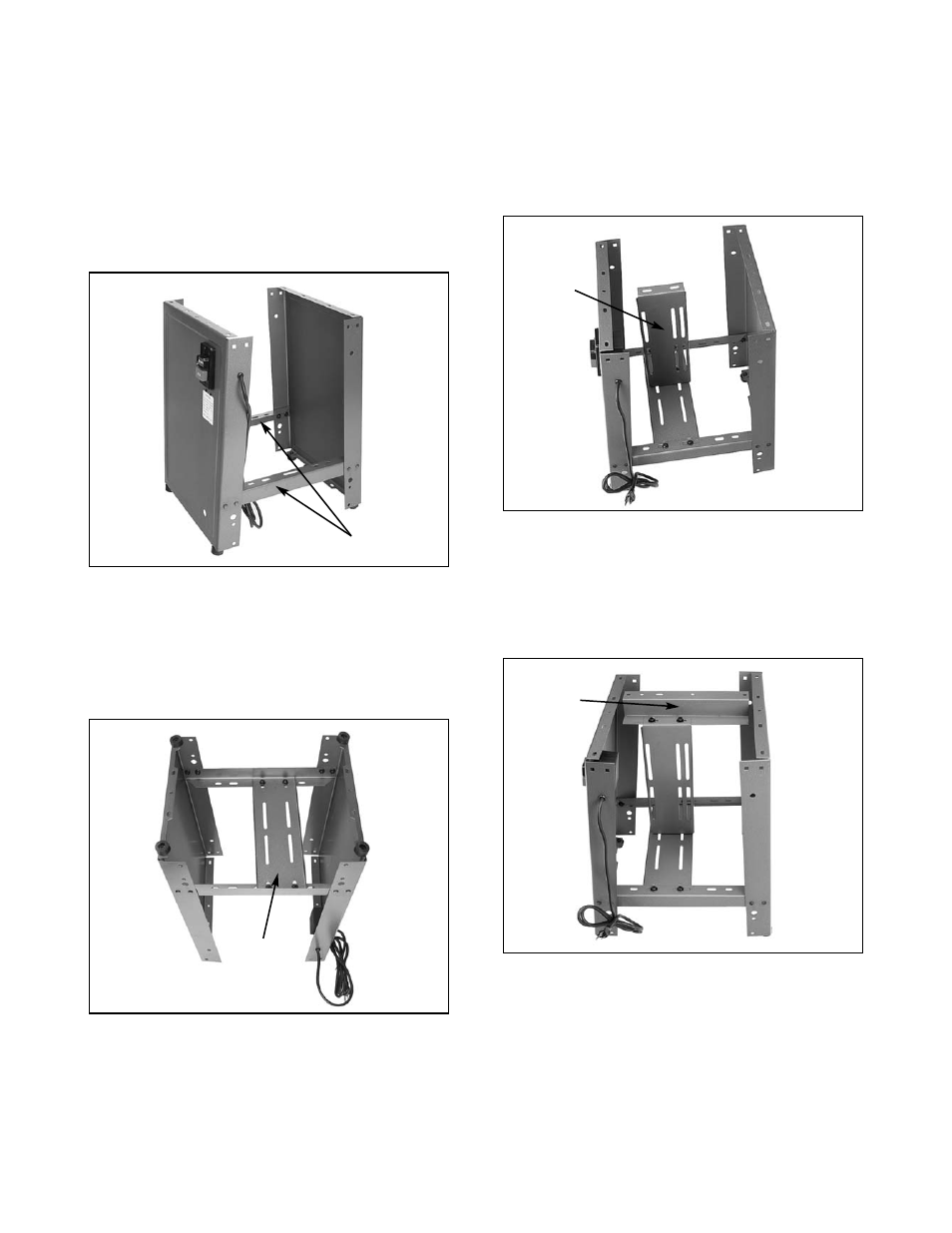

Figure 6. Add motor mount plate.
Figure 7. Mount double bend brace.
4. Turn the stand right side up and attach the
motor mount plate to the motor mount sup-
port plate using (4)
5 ⁄
16
"-18 x 3 ⁄
4
" hex bolts,
(8) flat washers and (4) hex nuts. See
Figure 6.
5. Mount the double bend brace to the motor
mount plate. Use (2) 5 ⁄
16
''-18 x 3 ⁄
4
'' hex bolts,
(8) flat washers and (2) hex nuts. See
Figure 7.
Figure 4. Attach cross braces.
Figure 5. Install motor support plate.
3. Now, turn the stand over and attach the
motor support plate using (4) 5 ⁄
16
''-18 x 3 ⁄
4
''
hex bolts, (8) washers and (4) hex nuts. See
Figure 5.
2. Stand the panels up so the rubber feet are
on the floor. Attach two cross braces to one
of the side panels using (4)
1 ⁄
4
''-20 x 1 ⁄
2
'' car-
riage bolts, flat washers and hex nuts pro-
vided. Next, attach the other side panel to
the cross braces already mounted. See
Figure 4. Note: Do not tighten any fasten-
ers at this time.
Cross Braces
Motor
Support
Plate
Motor
Mount
Plate
Double
Bend
Brace
