26

Genie TMZ-34/19

Part No. 97866

Operator's Manual

Fourth Edition • First Printing

OPERATING INSTRUCTIONS

Operation from Ground

1 Turn the key switch to ground control.

2 Pull out both ground and platform red

Emergency Stop buttons to the on position.

3 Be sure the batteries are connected before

operating the machine.

To Position Platform

1 Press and hold a function enable button.

2 Press the appropriate boom function button

according to markings on the control panel.

Operation from Platform

1 Turn the key switch to platform control.

2 Pull out both ground and platform red

Emergency Stop buttons to the on position.

3 Be sure that the batteries are connected before

operating machine.

To Position Platform

1 Press and hold a function enable button.

2 Press the appropriate boom function button

according to markings on the control panel.

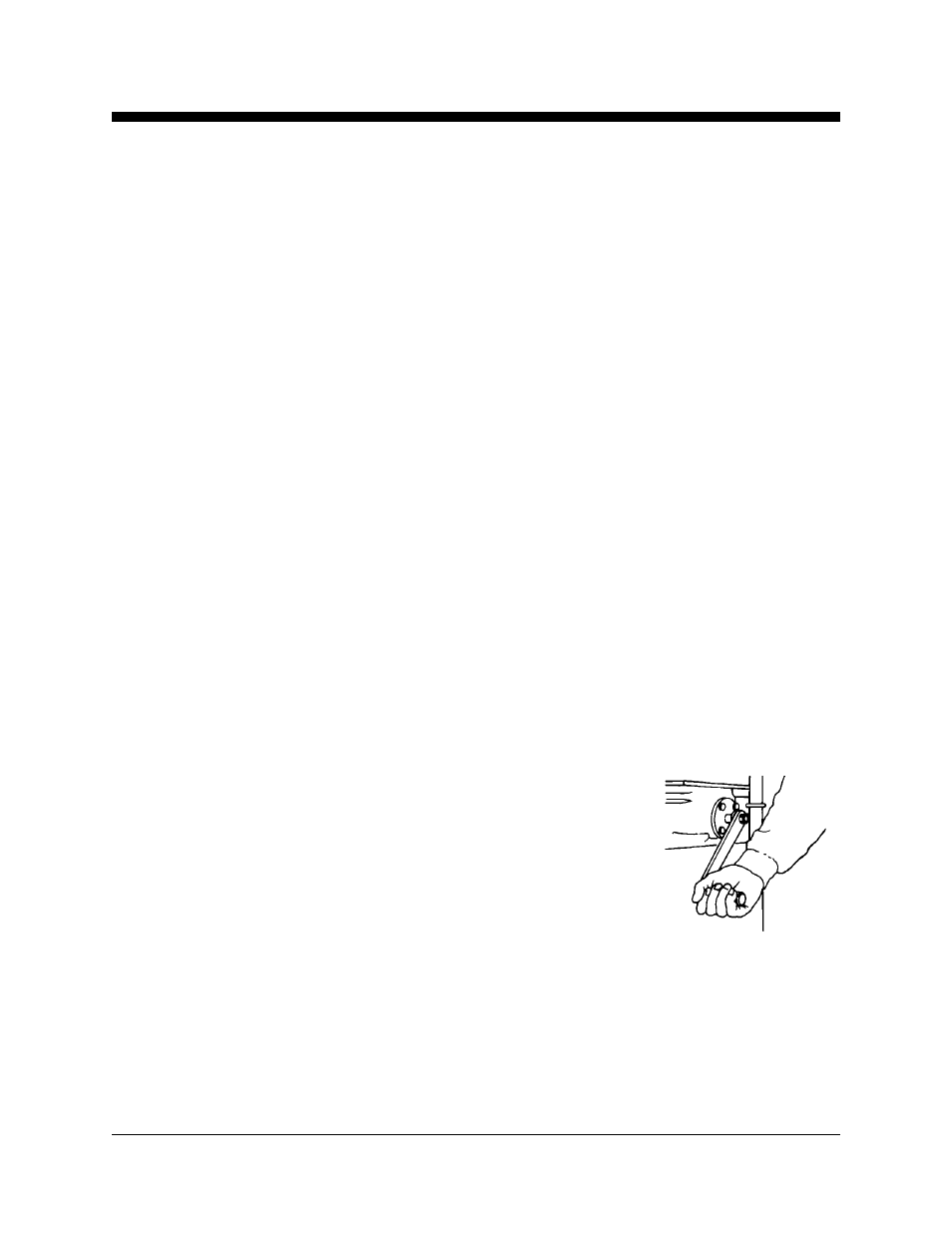

3 If equipped: Rotate

the platform by
turning the hand
crank in either a
clockwise or
counterclockwise
direction.

Emergency Stop

Push in the red Emergency Stop button to the off
position at the ground controls or the platform
controls to stop all machine functions.

Repair any function that operates when either red
Emergency Stop button is pushed in.

Set up

1 Position the machine directly below the desired

work area.

2 Set the parking brake.

3 Disconnect the trailer lights, chains and surge

brake safety cable from the vehicle.

4 Open the latch on the ball coupler.

5 Pull the jack release handle and rotate the

tongue jack to the lifting position.

6 Raise the tongue by turning the jack handle.

7 Open all boom hold-down latches.

8 Release the jib hold-down straps (if equipped).

9 Lower the outriggers and adjust to level the

machine and raise the wheels slightly off the
ground.

10 If equipped: Be sure that all four interlock

display lights are on at the ground control panel
and on the turntable.

11 If equipped: Check the bubble level to make

sure the machine is level.
