Part No. 97866 Genie TMZ-34/19 13
Operator's Manual Fourth Edition • First Printing

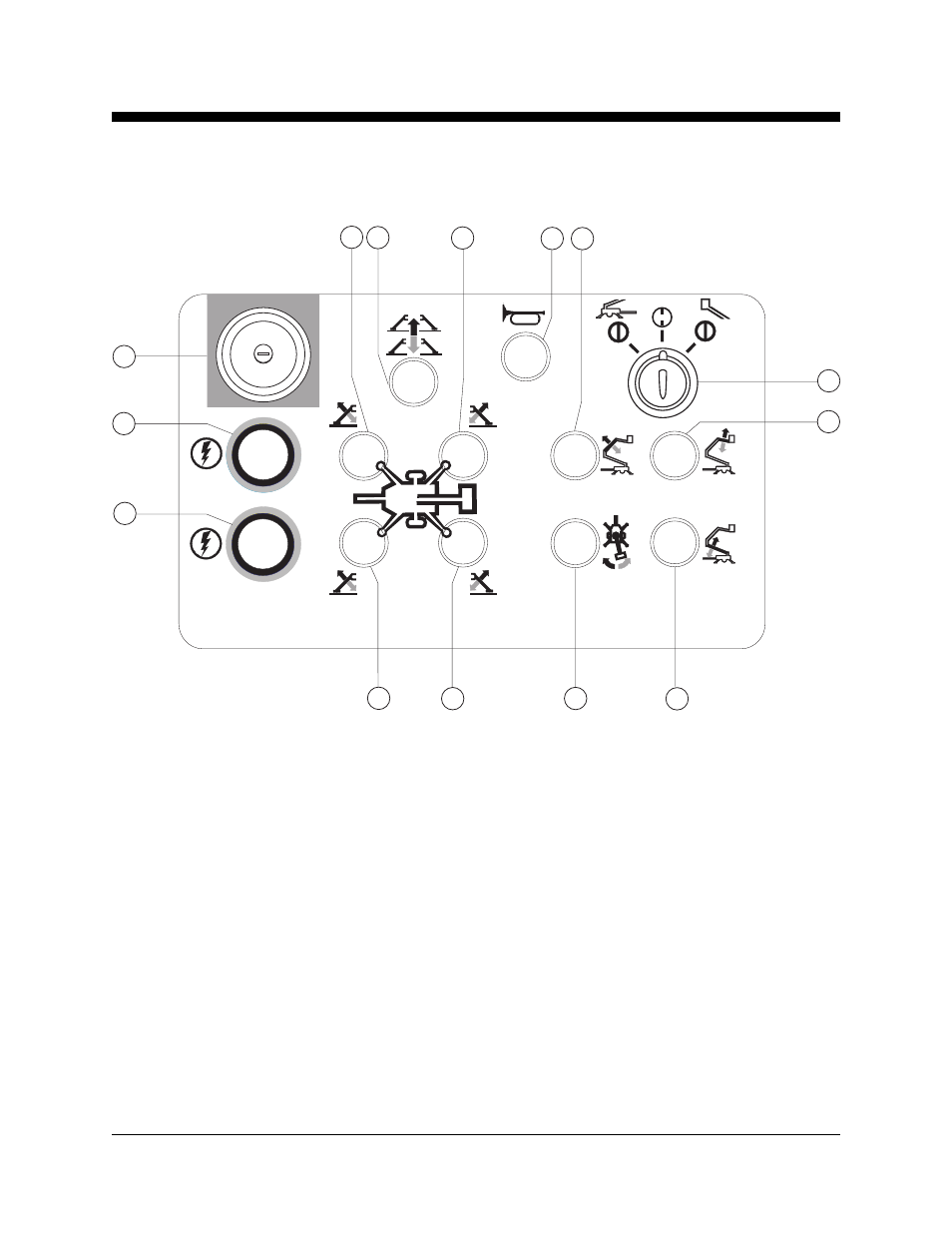

Ground Control Panel
(hydraulic outriggers)
1 Function enable button for:
Primary boom down
Secondary boom down
Jib boom down
Turntable rotate right
Outrigger lower
2 Function enable button for:
Primary boom up
Secondary boom up
Jib boom up
Turntable rotate left
Outrigger raise
3 Red Emergency Stop button
4 Outrigger raise/lower button
(individual outrigger)
5 Outrigger auto level button
6 Horn button
7 Primary boom up/down button
8 Key switch for ground/off/platform selection
9 Jib boom up/down button
10 Secondary boom up/down button
11 Turntable rotate button
CONTROLS
STOP
8
3
2
1
5 6 7 4 4
9
10 4 4 11
