Part No. 97866 Genie TMZ-34/19 21
Operator's Manual Fourth Edition • First Printing
FUNCTION TESTS
Test the Boom Functions
10 Do not hold a function enable/speed select
button. Attempt to activate each boom function
button.
Result: All boom functions should not operate.
11 Press and hold a function enable/speed select
button. Activate each boom function button.
Result: All boom functions should operate
through a full cycle.
Test the Tilt Sensor
12 Raise the jib boom approximately 6 in / 15 cm.
Raise the primary boom approximately 6 in /
15 cm off the boom rest. Raise the secondary
boom approximately 6 in / 15 cm off the boom
rest.

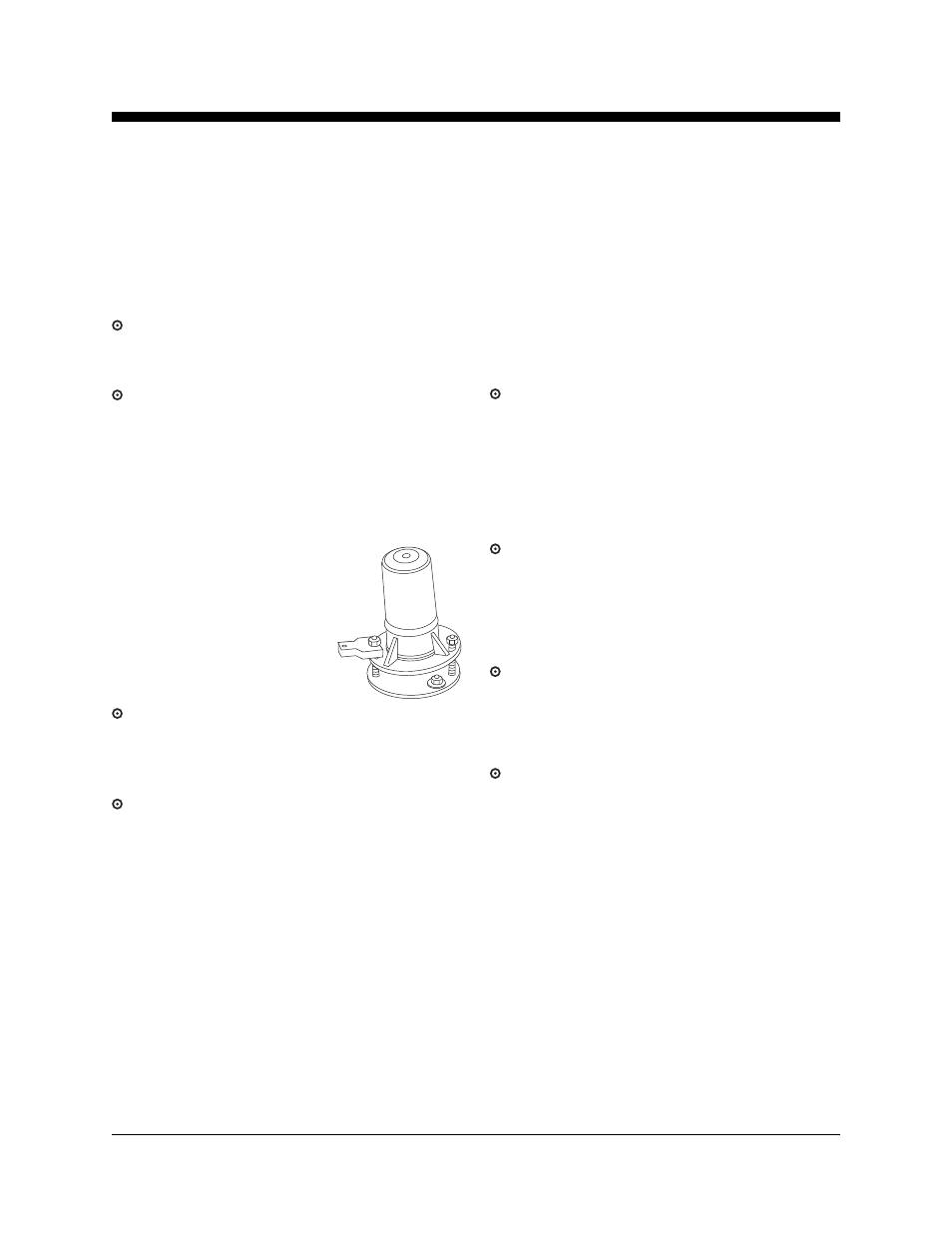

13 Locate the tilt sensor on
the chassis near the
ground controls.
14 Press down one side of the
tilt sensor and place the tilt
sensor test tool under one
of the posts.
Result: The alarm, located in the platform,
should sound after 1 second. The interlock
display light should flash.
15 Test all ground and platform control functions.
Result: The primary boom up, the secondary
boom up and the jib boom up functions should
not operate. The primary boom down, the
secondary boom down, the jib boom down and
the turntable rotate functions should operate
normally.
16 Remove the tilt sensor test tool.
17 Turn the key switch to platform control.
At the Platform Controls
18 Pull out the red Emergency Stop buttons at the
ground and platform controls.
Test Emergency Stop
19 Push in the platform red Emergency Stop button
to the off position.
Result: The power will shut off and all platform
control functions should not operate.
Test the Horn
20 Pull out the red Emergency Stop button to the
on position.
21 Push the horn button.
Result: The horn should sound.
Test Machine Functions
22 Do not hold a function enable/speed select
button. Attempt to activate each boom function
button.
Result: All boom functions should not operate.
23 Press and hold a function enable/speed select
button.
24 Activate each boom function button.
Result: All boom functions should operate
through a full cycle.
