Grizzly Vertical Milling Machines G0728 - Manual (Page 53)

Model G0728–31 (Mfg. Since 11/11)
-51-
G0730 Only
316
315
312
311
319
320
306
305
304
303
301
323
322
321
310
318
314
313
312
311
310
308
307
306
305
304
303 302
301
309
323
322
321
313
307 343
342
335
327
341
340 339
338
327
337
335
334
329
333
332
336
327
330
330
329
328
327
324
317
344-1
344-2
344-3
344-10
344-4
344-5
G0731 Only
344-6
344-7
344-8
344-9
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 P0730301 HANDLE 3/8-16 X 1/2 328 P0730328 SADDLE LOCK SCREW
302 PN04 HEX NUT 5/8-11 329 P0730329 TABLE LOCK SCREW
303 PSS03M SET SCREW M6-1 X 8 330 PCAP01M CAP SCREW M6-1 X 16
304 P0728141 HANDWHEEL 332 PS09M PHLP HD SCR M5-.8 X 10
305 P0728305 GRADUATED DIAL 333 P0728333 WAY WIPER
306 P0728306 LOCKING THUMB SCREW 5-.8 X 12 334 P0728334 SADDLE GIB
307 PCAP06M CAP SCREW M6-1 X 25 335 PCAP38M CAP SCREW M5-.8 X 25
308 P0730308 SPACER 336 P0728336 LIMIT SEAT
309 PR09M EXT RETAINING RING 20MM 337 P0728337 CROSS LEADSCREW NUT
310 P6004ZZ BALL BEARING 6004ZZ 338 PCAP31M CAP SCREW M8-1.25 X 25
311 PCAP30M CAP SCREW M6-1 X 45 339 P0730339 SADDLE
312 P0728312 LEADSCREW BRACKET 340 P0728340 STOP BLOCK
313 P0730313 WOODRUFF KEY 5 X 20 341 PS06M PHLP HD SCR M5-.8 X 20
314 P0730314 LONGITUDINAL LEADSCREW 342 P0728342 LONGITUDINAL NUT
315 PS03M PHLP HD SCR M6-1 X 8 343 PW03M FLAT WASHER 6MM
316 P0728316 WAY COVER 344-1 P0729344-1 POWER FEED ASSEMBLY
317 P0728317 WAY COVER HOLDER 344-2 P0729344-2 RETAINING COLLAR
318 P0730318 TABLE 344-3 P0729344-3 GRADUATED DIAL
319 P0730319 SPANNER NUT WASHER 20MM 344-4 PCAP06M CAP SCREW M6-1 X 25
320 P0728320 SPANNER NUT 344-5 P0729344-5 WOODRUFF KEY 3 X 30
321 PB01M HEX BOLT M10-1.5 X 30 344-6 P0729344-6 STOP W/ PLUNGER ASSY
322 P0730322 LIMIT STOP 344-7 P0729344-7 AUTO STOP SWITCH
323 PN02M HEX NUT M10-1.5 344-8 PS11M PHLP HD SCR M6-1 X 16
324 P0728324 TABLE GIB 344-9 PW03M FLAT WASHER 6MM
327 P0728327 GIB ADJUSTMENT SCREW 344-10 P0729344-10 POWER FEED ADAPTER GEAR

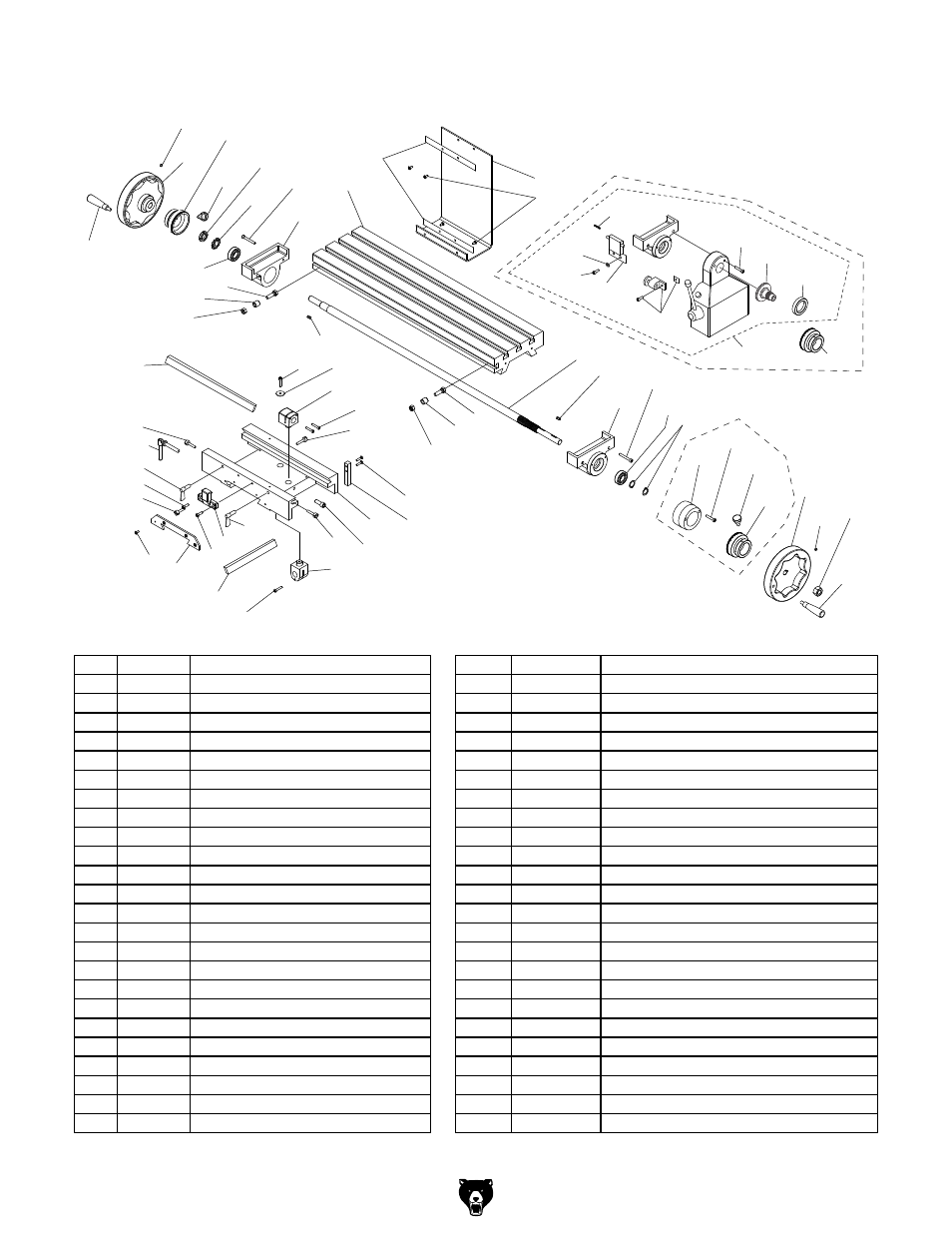

G0730 & G0731 Table & Saddle
