Model G0728–31 (Mfg. Since 11/11)
-17-
Assembly
gather the needed tools and components listed in
Needed for Setup on page 12.
To assemble the mill:
1. secure the three handles to the handwheels,
as shown in figures 11 and 12.

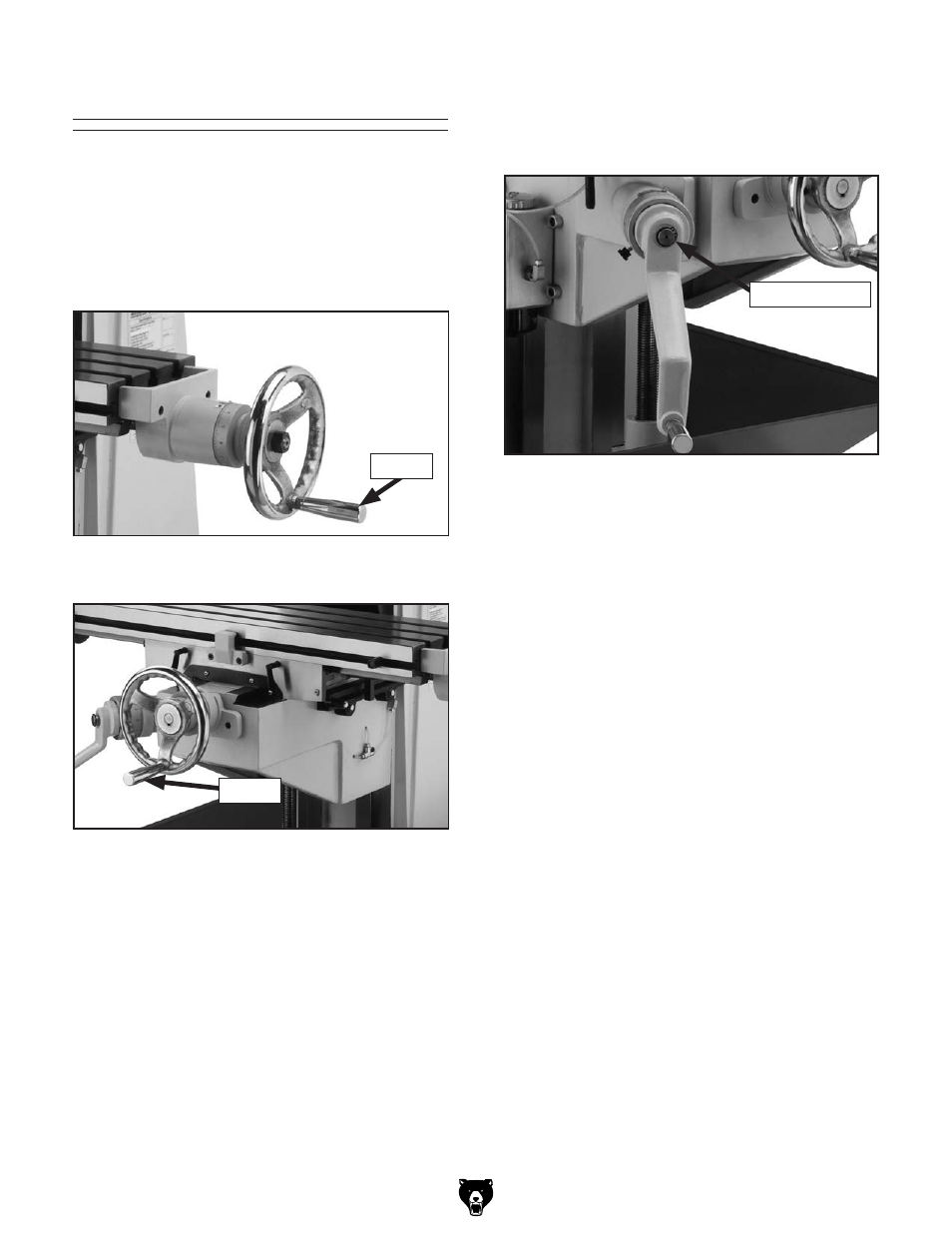

figure 11. right table handle attached to
handwheel (left table handle not shown).
handle
figure 12. Cross feed handle attached to
handwheel.
handle
2. remove the retaining ring from the end of the
vertical crank screw, install the crank handle,
then re-install the retaining ring, as shown in
figure 13.
figure 13. vertical crank handle properly
installed.
retaining ring
