Models G0728–31 (Mfg. Since 11/11)
One-Shot Oiler
Lubricant frequency Qty
iso 68 lubricant or
Equivalent Every
8 hours
of operation 1
pump
the oil lines running from the one-shot oiler feed
lubrication to the ways of the column (knee),
saddle, and table.
use the sight glass on the front of the oiler to
make sure it is full, then pull the handle (see
figure 41) and release it to send the lubricant
through the lines.

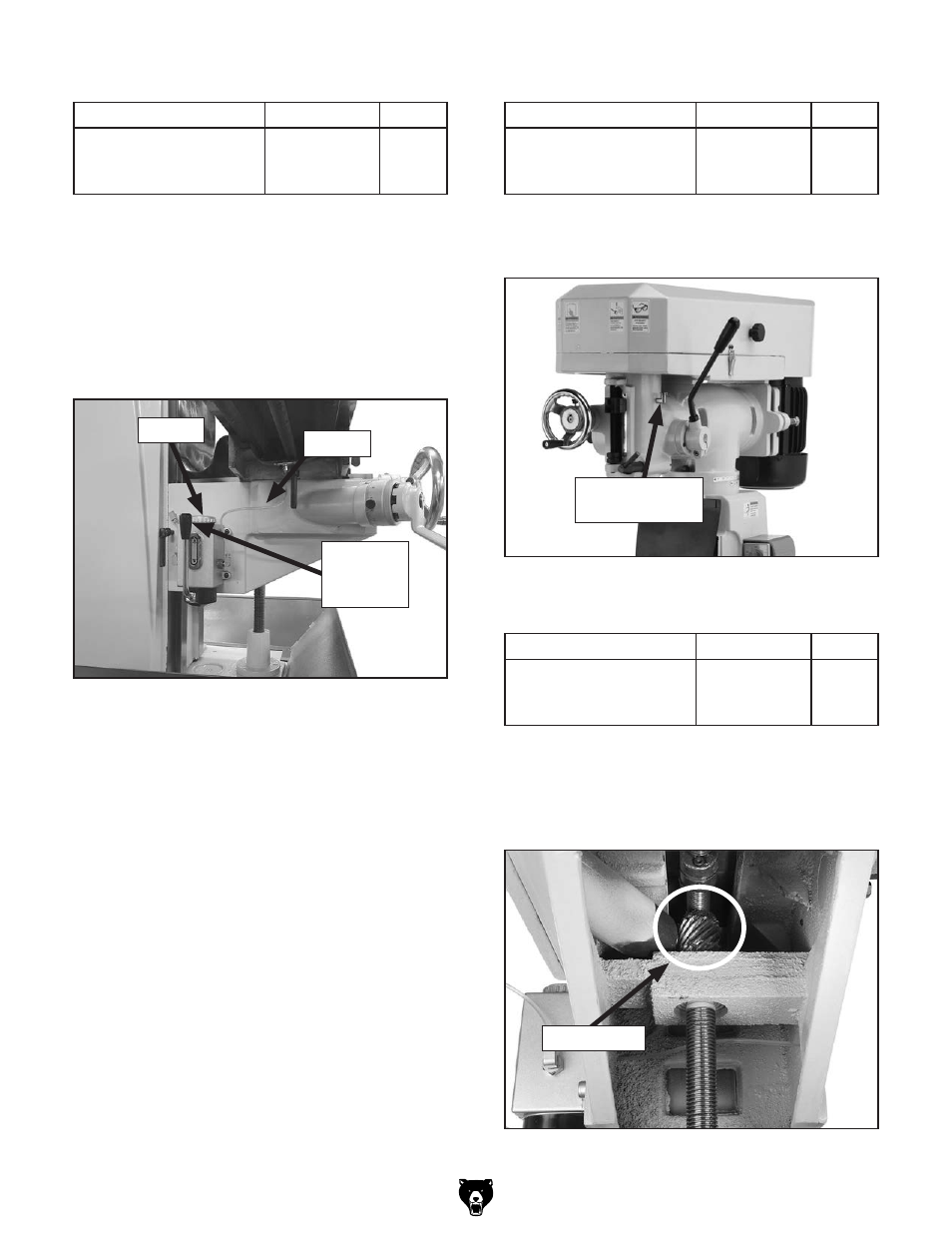

figure 41. one-shot oiler.
oil line
one-shot
pump
handle
Fill Cap
Quill Gearing
Lubricant frequency Qty
iso 68 lubricant or
Equivalent Every
8 hours
of operation 5
Drops
lift the cap of the oil cup shown in figure 42 to
add the lubricant.
figure 42. Quill gearing oil cup.
spindle
lubrication Cup
Vertical bevel Gears
Lubricant frequency Qty
nlgi #2 grease Every
40 hours
of operation thin
Coat
raise the knee up to access the vertical bevel
gears underneath the saddle, then using a lightly
oiled shop rag or stiff brush, clean and lubricate
the bevel gears shown in
figure 43.
figure 43. vertical bevel gears.
Bevel gears
