20 connection – Furuno FAR-2827 User Manual
Page 80
4. INSTALLING OPTIONAL EQUIPMENT
4-20

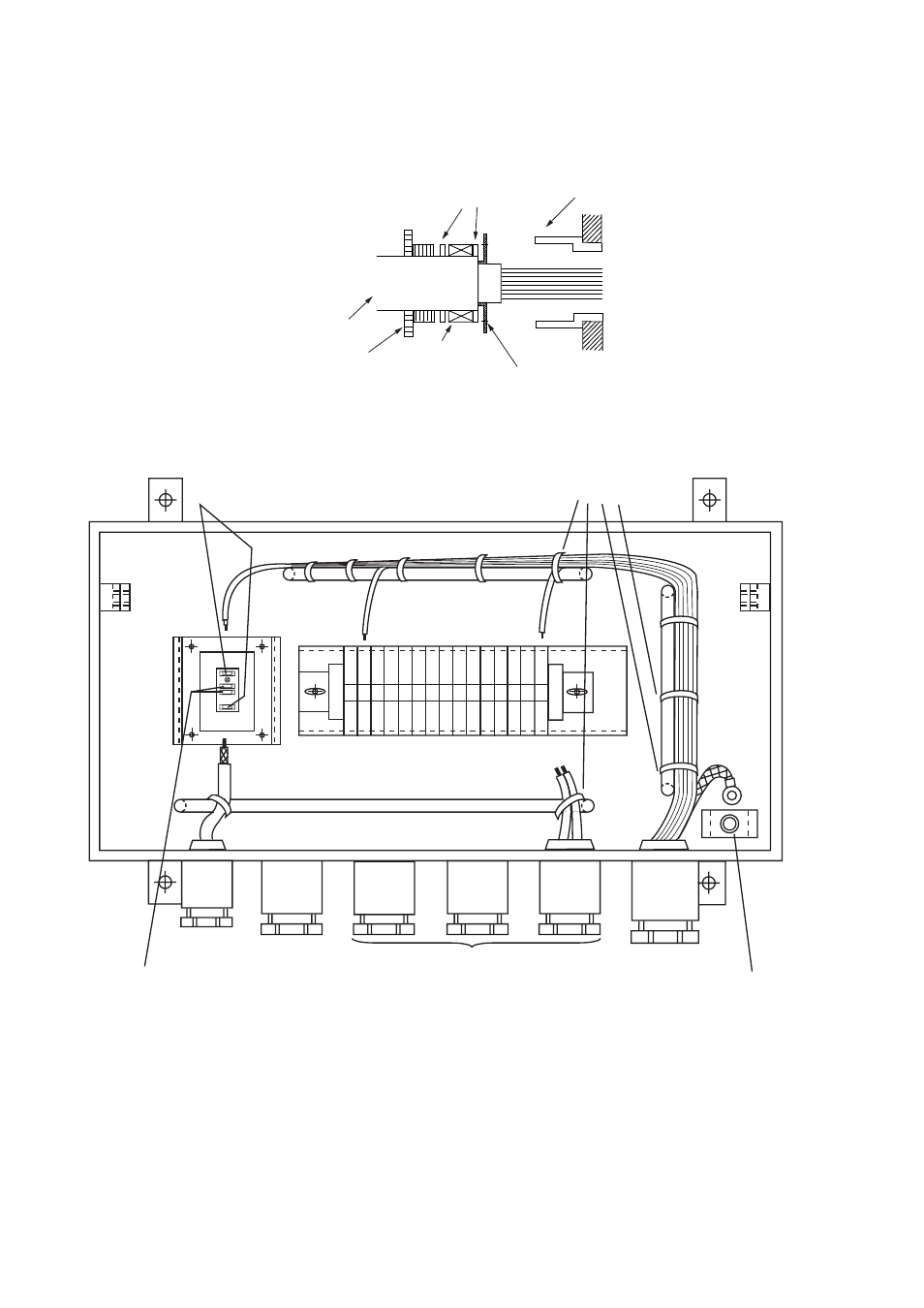

Connection
Insert each cable to the cable gland as follows.
Flat washer
Cable gland
Vinyl sheath
Clamping gland
Gasket
Cut and trim armor.
Connect each cable cores to the terminal board, referring to the interconnection diagram on
next page.
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
RG12/UY
RG-12/UY
TTYCY-4
DPYCY-6
RW-9600
Connect inner conductors.
M8 screw for grounding
Clamp outer conductor of coaxial cables.
Fix wires with cable-tie.
