5 bnc connector converter, Interconnection – Furuno FAR-2827 User Manual
Page 77
4. INSTALLING OPTIONAL EQUIPMENT
4-17

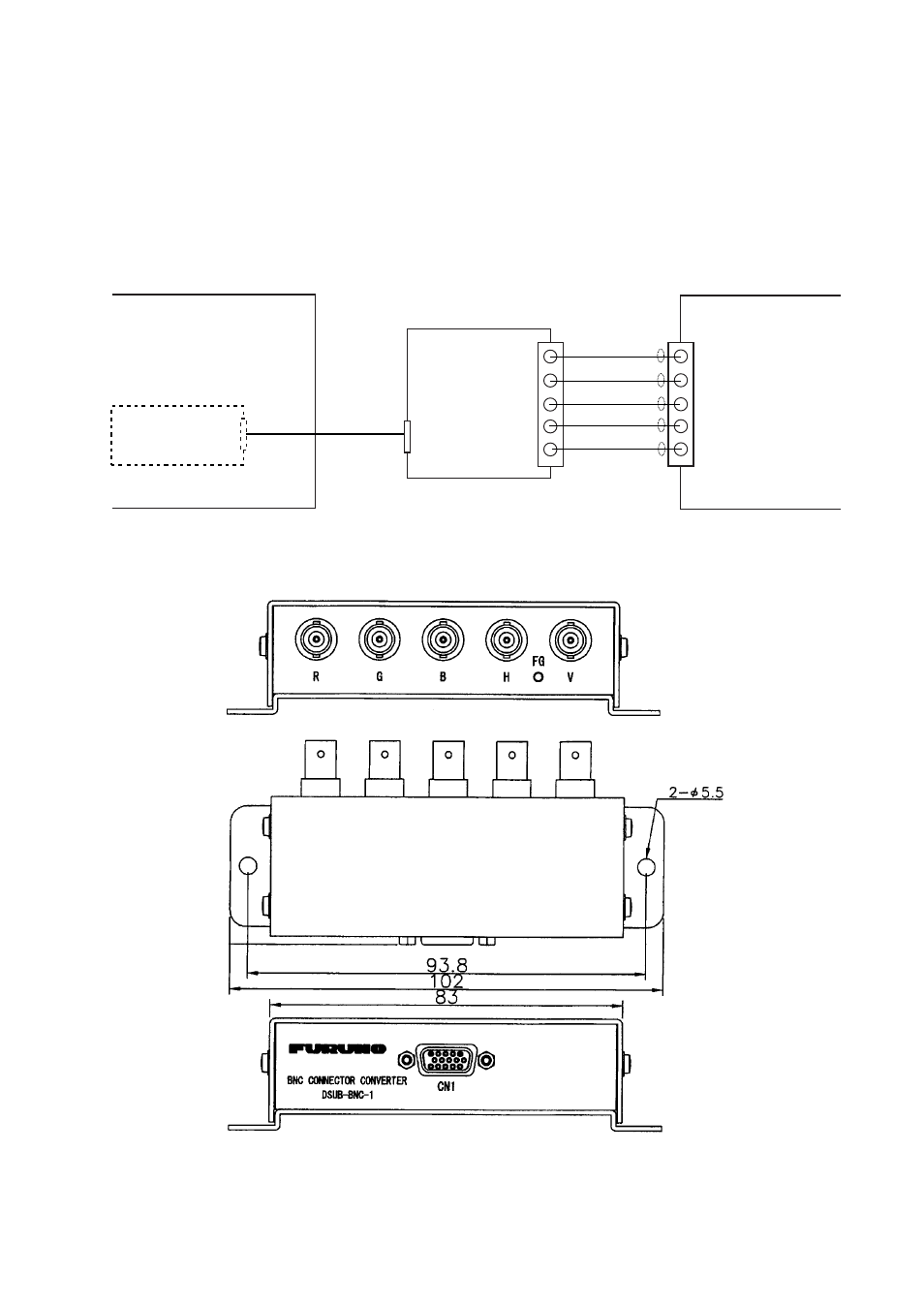

4.5 BNC Connector Converter
To connect the VR-5000 (FURUNO Voyage Data Recorder) to this radar, the DVI-RGB
conversion kit (mentioned at previous paragraph) and the BNC connector converter are
required. Also VGA cable (between the processor unit and the BNC connector converter)
and five 75 ohms coaxial cables (between the BNC connector converter and VR-5000) are
required.
BNC connector
converter
DSUB-BNC-1
VR-5000
Data collecting unit
FAR-2107
Processor Unit
DVI-RGB
Conversion kit
D-sub 15P
Female
VGA cable
75
W
coax. cable
VD1
R
G
B
HS
VS
R
G
B
H
V
D-sub 15P
Male
Interconnection
