Furuno FAR-2827 User Manual
Page 76
4. INSTALLING OPTIONAL EQUIPMENT
4-16

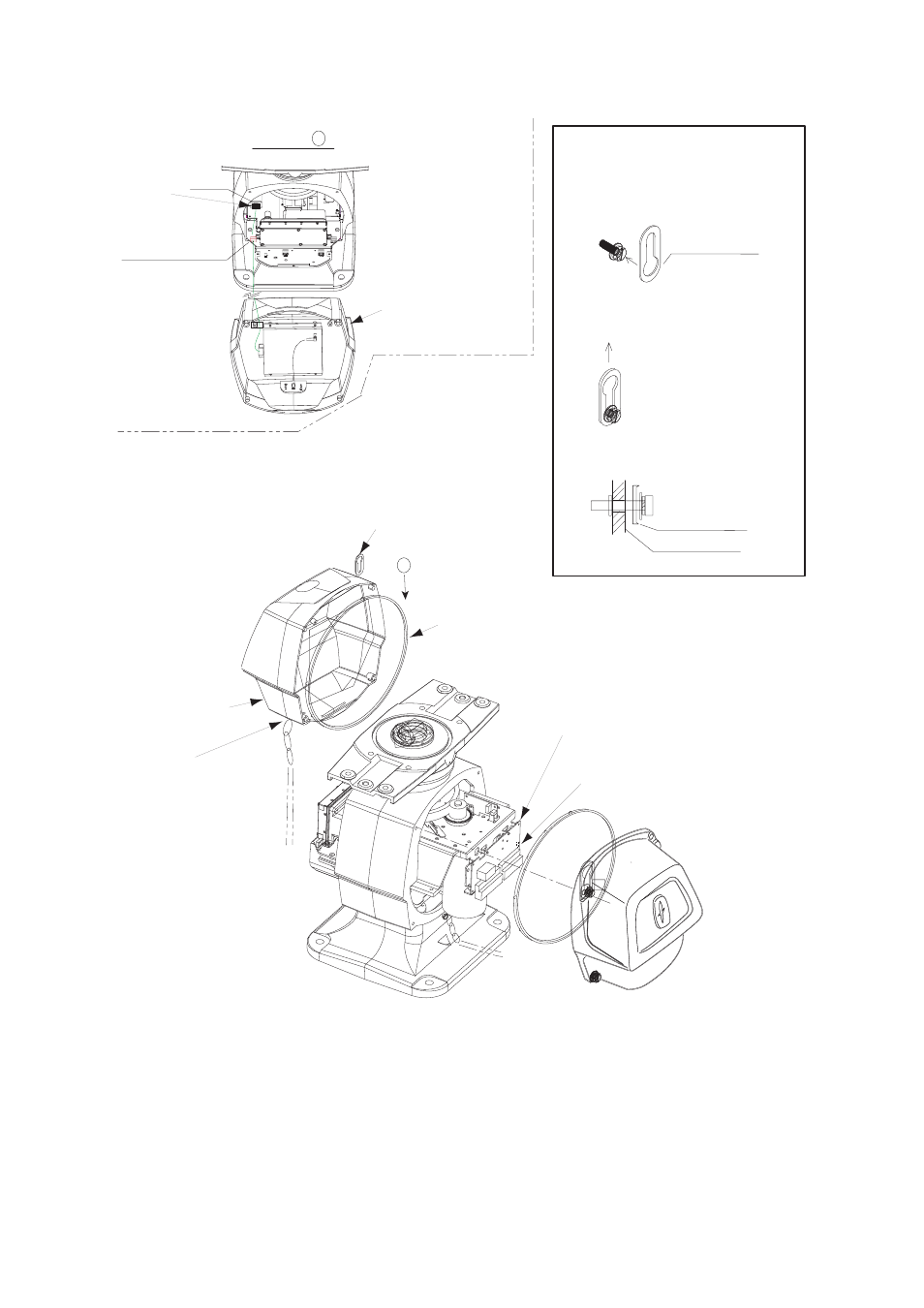

Lifting fixture
*
A
P922
View
Fix the cable.
Stern side
Bow side
Gasket
Lifting fixture
Scanner cover assy
Scanner cover assy
Relay plate
TB board
J911 is on rear side.
1.Insert the lifting fixture
as shown below.
Lifting fixture
Coating face
Note:Fix flat side of the fixture to
the coating face.
2. Fix the lifting fixture
as shown below.
Upside down the fixture
from step 1 and pull it
in arrow mark direction.
TB board 03P9349
How to fix lifting fixture
Change the chain here.
B
