Furuno FAR-2827 User Manual
Page 17
1. MOUNTING
1-9

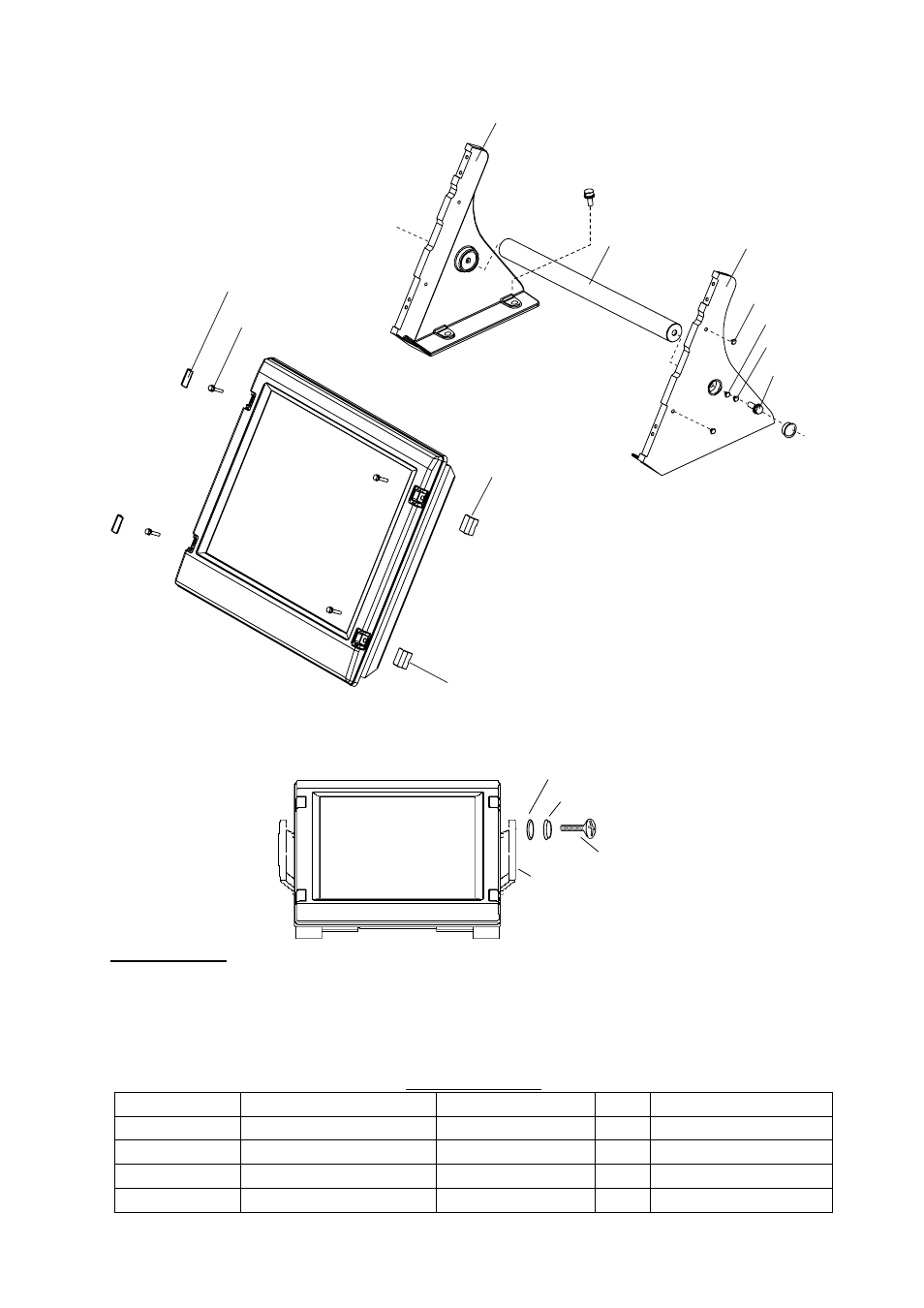

Panel cover
Hex bolt
(M6x25)
Hanger (R)
Hanger stay
M12 bolts for fixing
(Dockyard supply)
Hanger (L)
Hex bolt
M10x30
Plastic rivet
Hole plug
Panel cover
To remove this, insert fingernail in groove.
Flat Washer M10
Spring Washer M10
Monitor Unit
The hand grip is optionally available for the desktop mounting monitor unit.
Handle
Screw
Wave washer
Rosette washer
Hood (option)
When it is too bright in the daytime, use the optional hood to shade the screen.
•
For FAR-2117/2127: FP03-11500 (Code No.: 001-020-090)
•
For FAR-2817/2827: FP03-11000 (Code No.: 008-571-680)
Contents of hood
Name Type Code
No.
Qty.
Remarks
Hood (21)
FP03-11501
001-020-120
1
For FAR-2117/2127
Hood (23)
FP03-11001
008-571-700
1
For FAR-2817/2827
Fixing plate
03-163-2202-0
100-335-560-10
4
Screw
M4x10 D=13 US304
000-862-543
4
