1. MOUNTING
1-12

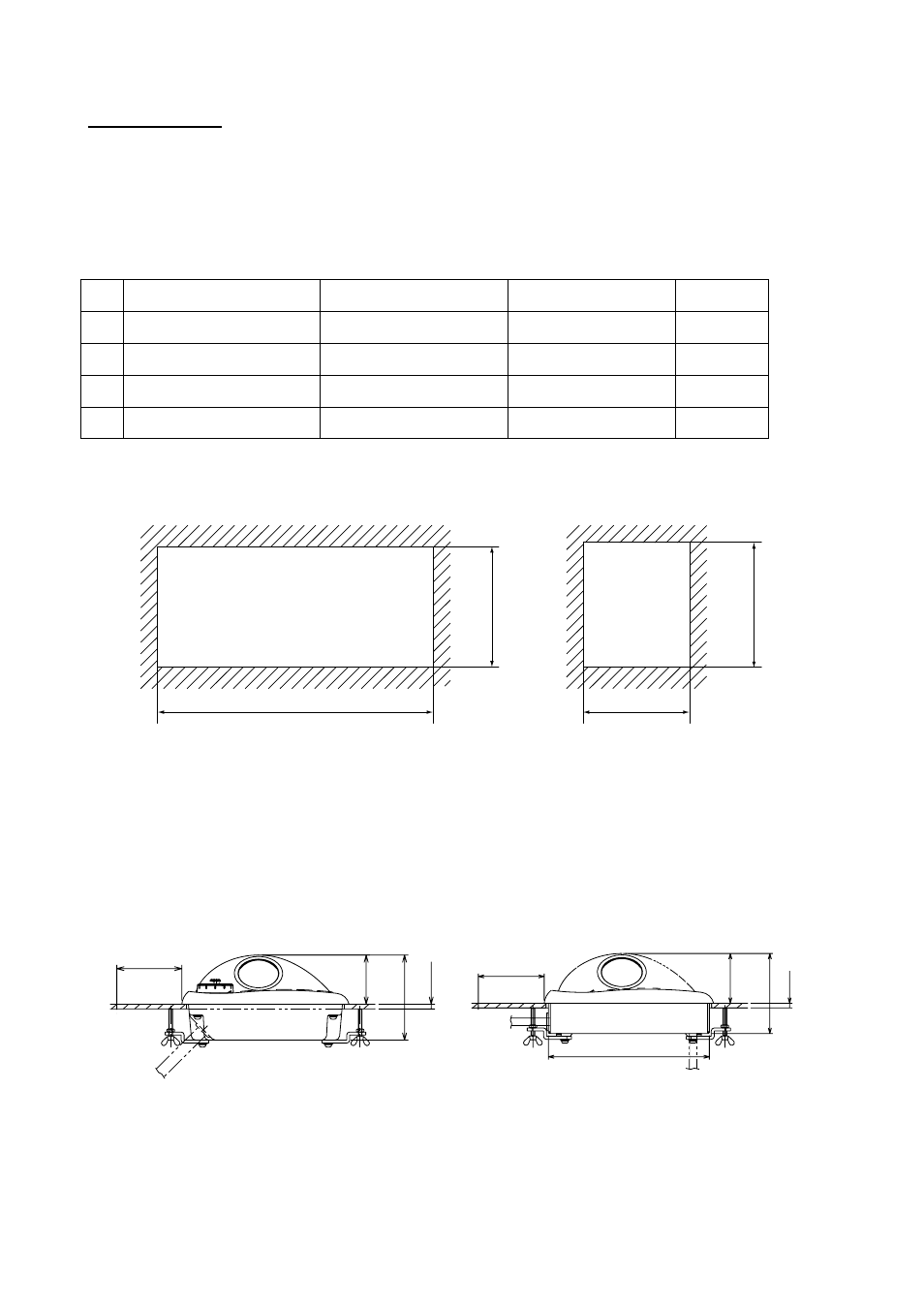

Flush mounting
Use the optional flush mount kit FP03-09870 to mount the control unit RCU-014, RCU-015
and/or RCU016 to a console panel.
Name: Flush mount kit
Type: FP03-09870
Code No.: 008-535-630
No. Name Type Code No. Qty
1 Mount plate 03-163-7531 100-306-261 4
2 Hex nut M5 000-863-108 4
3 Wing screw M5x40 000-162-682-10 4
4 Pan head screw M4x12 000-163-192-10 4
1. Prepare a cutout in the mounting location as shown in the figure below.
388 150
±2
170
±2
176
±2
±2
For RCU-014 For RCU-015 and RCU-016
2. Set the control unit to the cutout.
3. Attach the mounting plate to the control unit with four screws from the rear side.
4. Screw the wing screw to each mounting plate and then insert hex bolt to each wing
screw.
5. Fasten each wing screw and then fasten the hex nuts as shown in the figure below.
(P)
#70
53
92
(P)
#70
171
53
86
Note: P 10 <
=
RCU-014 RCU-015/RCU-016
