Setting and adjustment, 1 dip switch setting – Furuno FAR-2827 User Manual
Page 39
3-1
3. SETTING AND ADJUSTMENT
3.1 DIP
Switch
Setting
The processor unit is shipped for model FAR-2117 or FAR-2127. If your model is FAR-2817/
2827/2117-BB/2127-BB, change the DIP switch setting as follows.

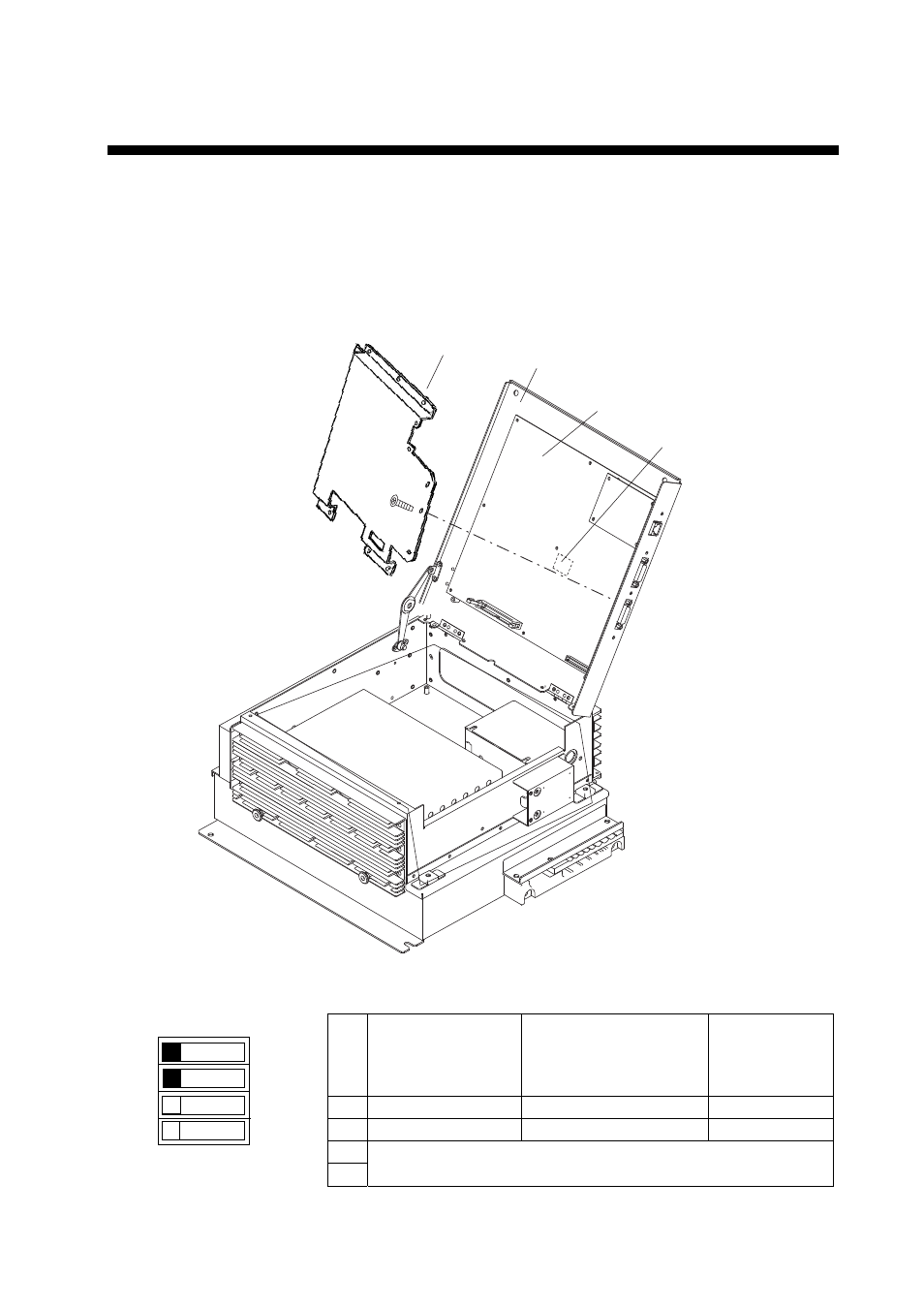

1. Remove the top cover of the processor unit.
2. Open the SPU assembly block.
Shield cover
SPU assembly block
SPU board 03P9337
DIP switch S1
3. Set the DIP switch S1 as follows.
S1
Monitor SXGA for
FAR-2117/2127
(Default)
Monitor UXGA for
FAR2817/2827
(MU-231CR
S. No. 0269 and later)
FAR-2117-BB
FAR-2127-BB
1 OFF
ON
OFF
2 OFF
OFF
ON
3
4
Not used.
Note: Set #1 and #2 of S1 to OFF for MU-231CR S. No. 0268 and earlier.
1
2
3
4
OFF
ON
S1
