5.3 Setting a Reset Signal
■ Setting the Reset signal
A setup at the time of product shipment of a jumper plug is shown in Fig. 5.3-1. By this setup, the
INITX signal (INIT) of evaluation MCU is supplied from the INITX signal of a user system via an
emulator, and the TRSTX signal (TRST) of evaluation MCU is supplied from the reset signal of an
emulator
.

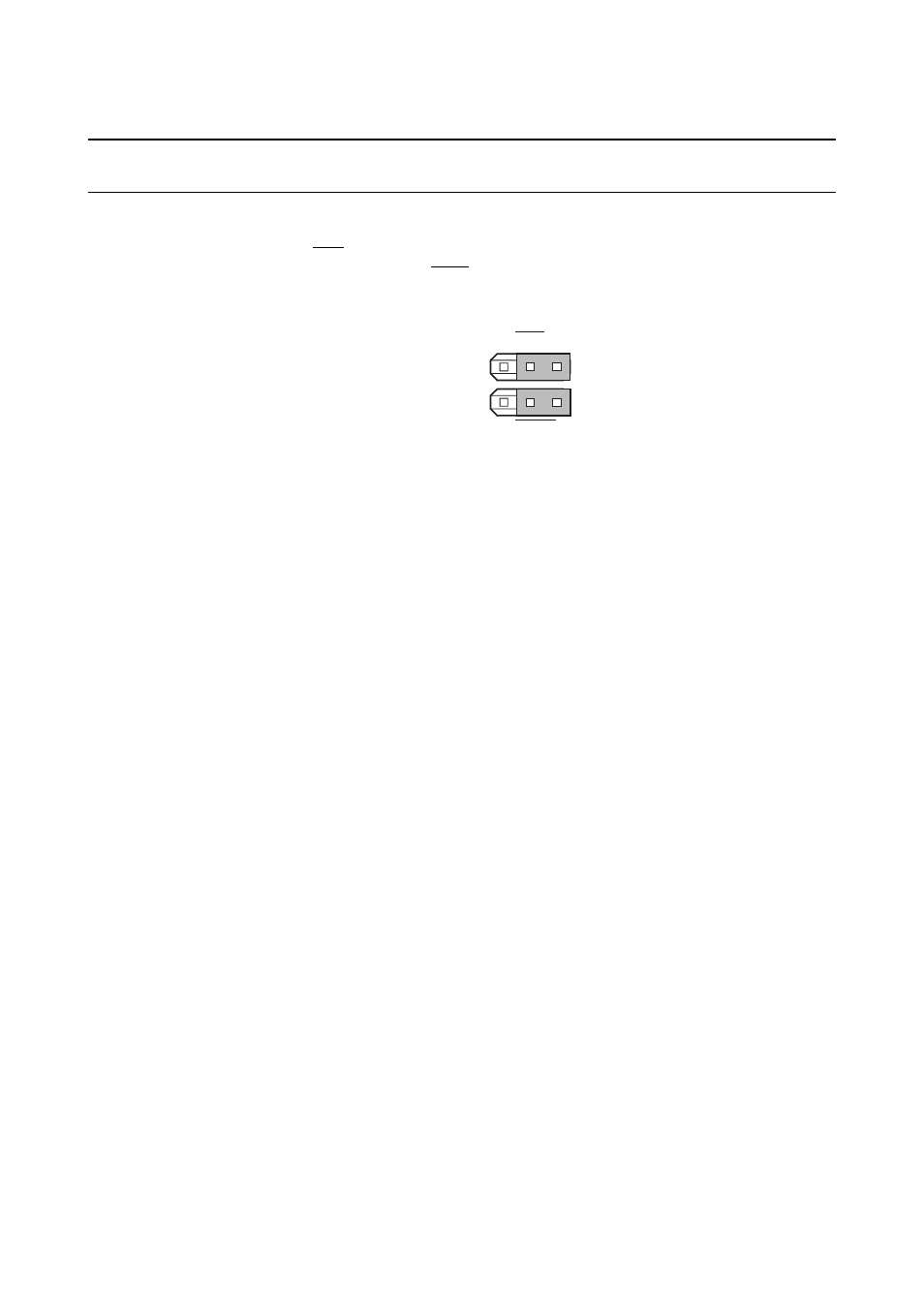

Figure 5.3-1 Setting the Reset Signal Setting Jumper Plugs (Factory Setting)
The reset signal is supplied to evaluation MCU from the user system or the emulater. Please use a setup at
the time of product shipment of a jumper plug.
INIT
USR EML
TRST
USR EML
