8
2.1 System Configuration
■ System Configuration

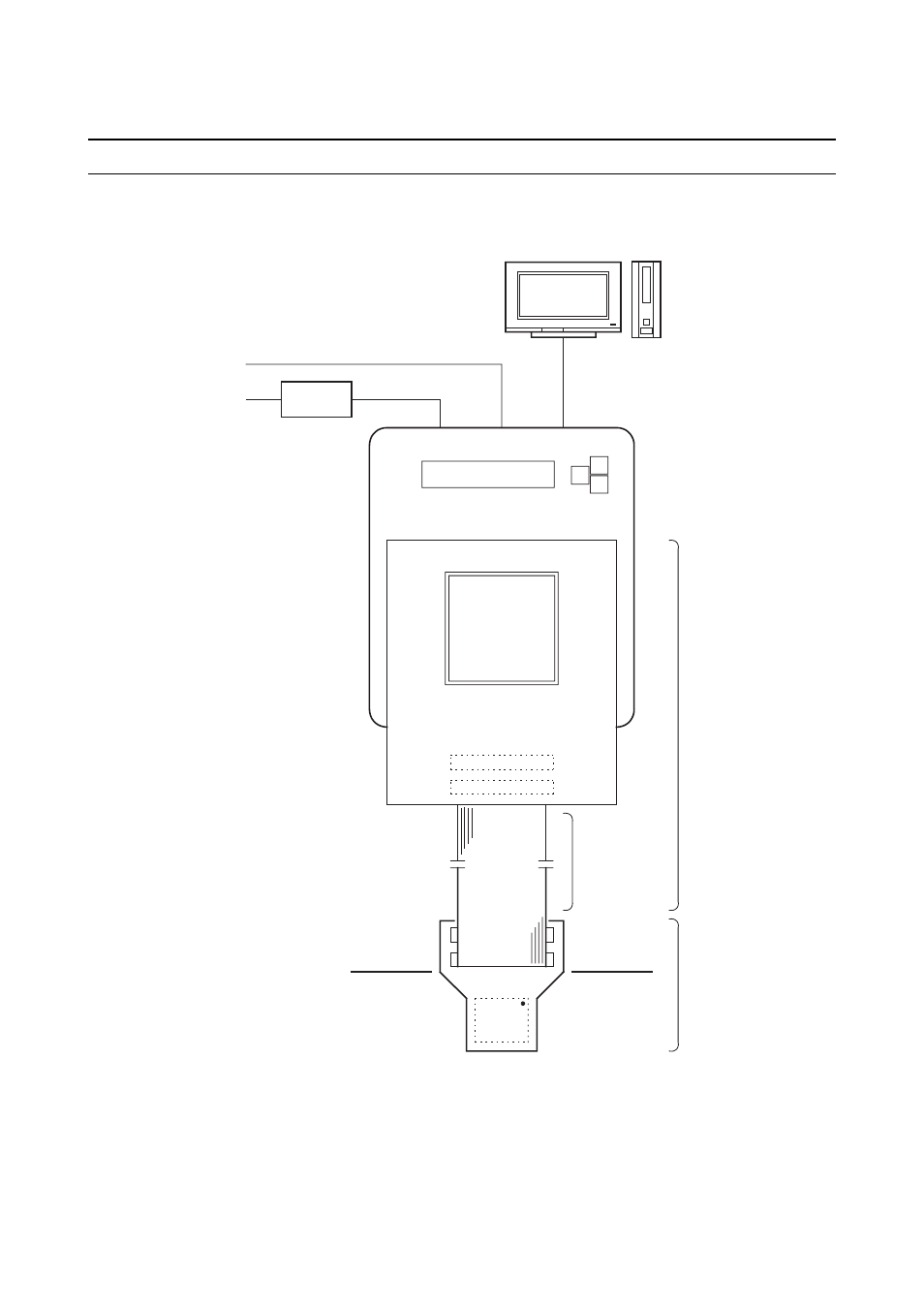

Figure 2.1-1 shows the system configuration for the adapter.
* : The AC adapter is bundled with the emulator.
Figure 2.1-1 System Configuration Diagram
Refer to the emulator hardware manual for connecting the emulator to a host computer or general-
purpose measuring instrument.
To use the emulator, you need the host computer and emulator debugger software separately from
this product. Refer to the emulator hardware manual for information on the specifications of the em-
ulator.
Used in combination with the header, the adapter is connected to the emulator and the user system.
Fujitsu Emulator
Loader Mode Now.
Host computer
External trigger / program execution
AC adapter
RS232C, USB, LAN
DSU-FR emulator
Evaluation
MCU
User system
Header board
Flat cable
Adapter board
General-purpose
measuring instrument
AC in
Adapter
(this product)
Header
Chapter 2 Product Description
