4.2 Connecting the Adapter Board with the Header Board
■ Connecting the Adapter Board to the Header Board
•
To connect the flat cable, insert each of its connectors into the mating connector on each board
until the eject lock of the cable’s connector locks into place in the board’s connector.
•
To disconnect the flat cable, pinch the eject lock of each of its connectors to unlock the con-
nector and unplug the cable.

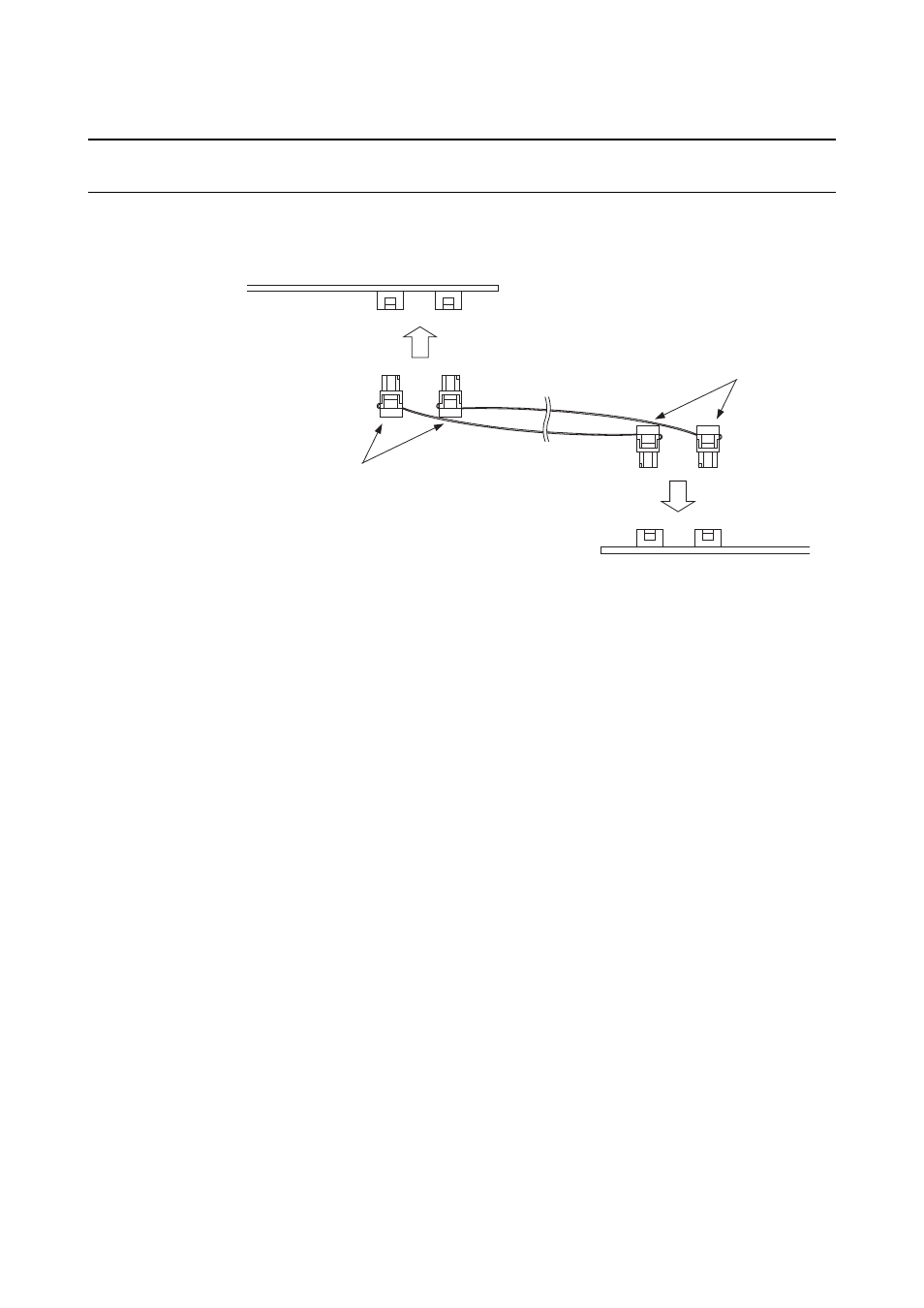

Figure 4.2-1 Connecting the Adapter Board with the Header Board
Note : Before plugging or unplugging the cable, turn off the power supply.
When unplugging the cable, remove it while holding the case connector without pulling the cable itself.
Connect the adapter board with the header board using a flat cable coming with the adapter as illustrated in
Figure 4.2-1.
Adapter board
Flat cable
connector A
Flat cable
connector B
Eject lock
Flat cable
Eject lock
Flat cable
connector A
Flat cable
connector B
