18
4.1 Connecting the Adapter Board to the Emulator
■ Connecting the Adapter Board and the Emulator
•
Connect the adapter board to the emulator in such a manner that their connectors aligned by
indexes (▲) provided to prevent accidental insertion mate deep with each other.
•
When disconnecting the adapter board from the emulator, remove it with uniform force with-
out applying force to one point.

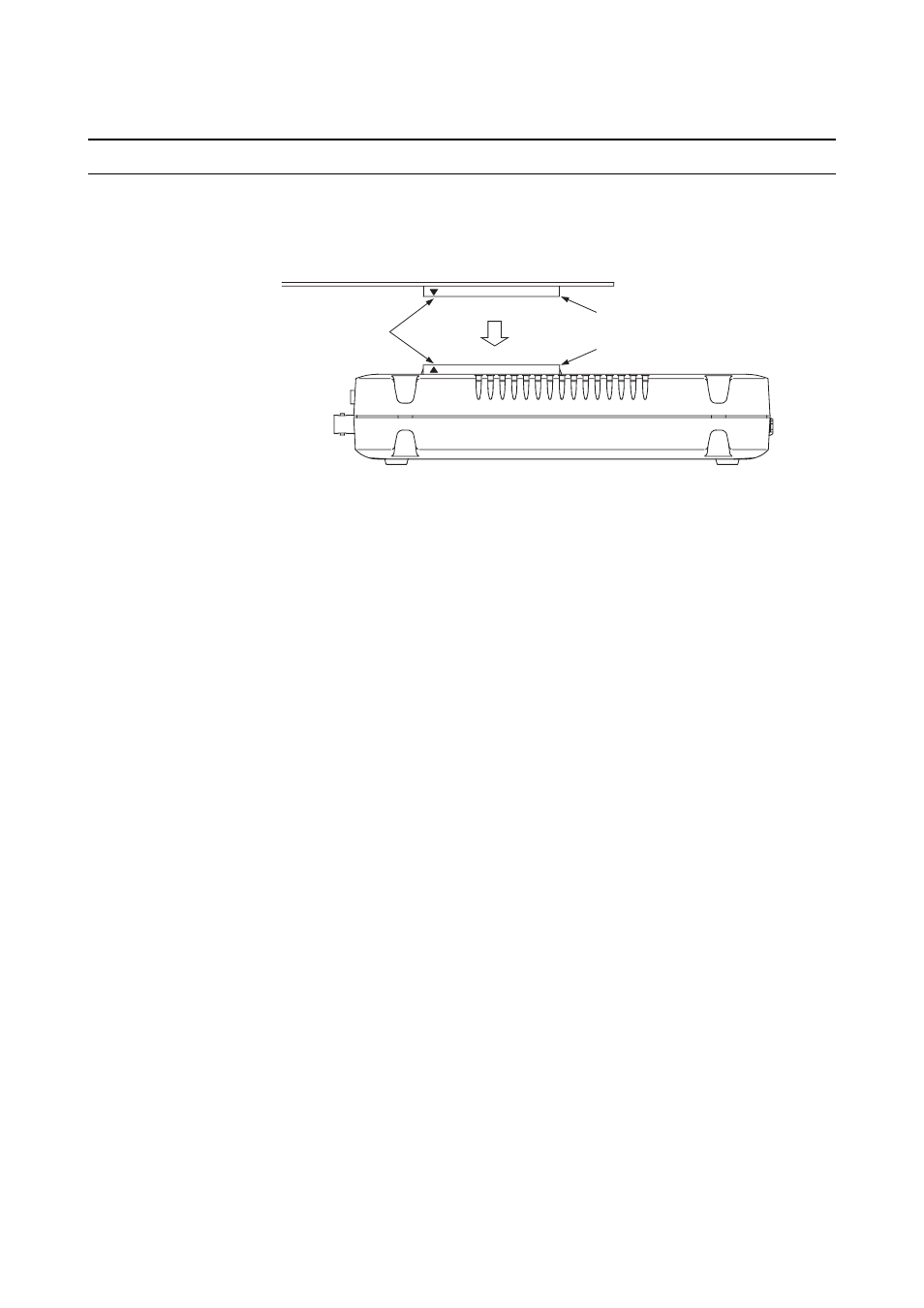

Figure 4.1-1 Connecting the Adapter Board to the Emulator
Note : Before plugging or unplugging the board, turn off the power supply.
When unplugging the board, remove it with uniform force without applying force to one point.
Connect the adapter board to the adapter board connector on the emulator as illustrated in Figure 4.1-1.
Adapter board
Index
Emulator connector
Adapter board connector
Emulator
Chapter 4 Connections
