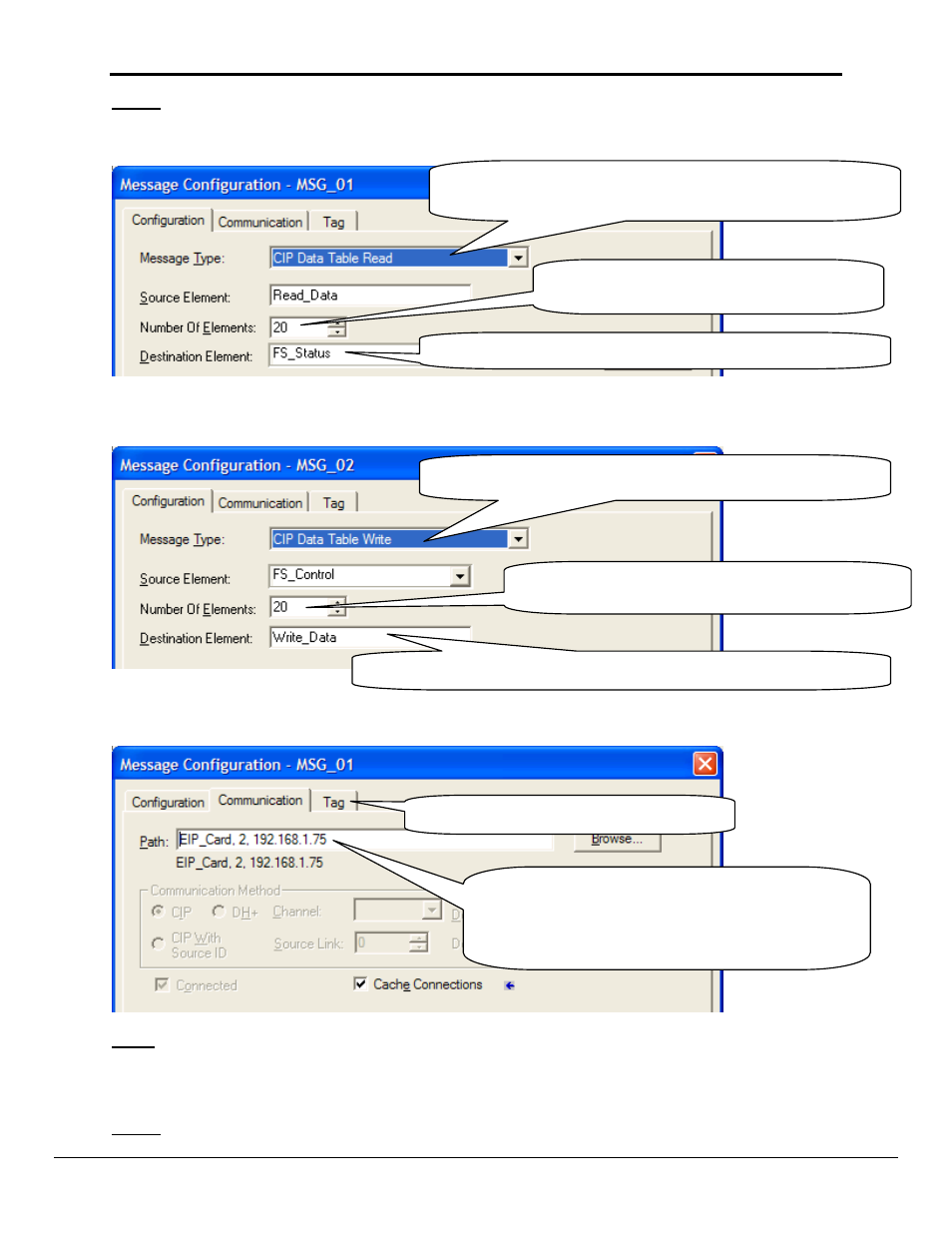

Step 4: Configure the Properties for the two Message Blocks by clicking on the “…” button:
Read Message Block:
Write Message Block:
Communication Tab for both Message Blocks:
Notes:
1) A message block only executes on the leading edge of a rung condition
2) No more than one message block executes at a time.
Step 5: Download the program and set the PLC to Run Mode.
Remote FieldServer Tag Configured in the FieldServer (see
example above)
Local PLC Tag configured in the PLC Tag List (see example above)
Local PLC Tag configured in the PLC Tag List (see example above)
Remote FieldServer Tag configured in the FieldServer (see example above)
Number of points transferred from FieldServer
to PLC regardless of Tag and Array Sizes
Number of points transferred from PLC to FieldServer
regardless of Tag and Array Sizes
EIP_Card is the name of the Ethernet ENBT Card in the
ControlLogix Rack.
“2” refers to the port number on the ENBT Card.
192.168.1.75 is the IP Address of the FieldServer.
The Tag Tab requires no configuration.
