2640A/2645A NetDAQ
Users Manual
4-6

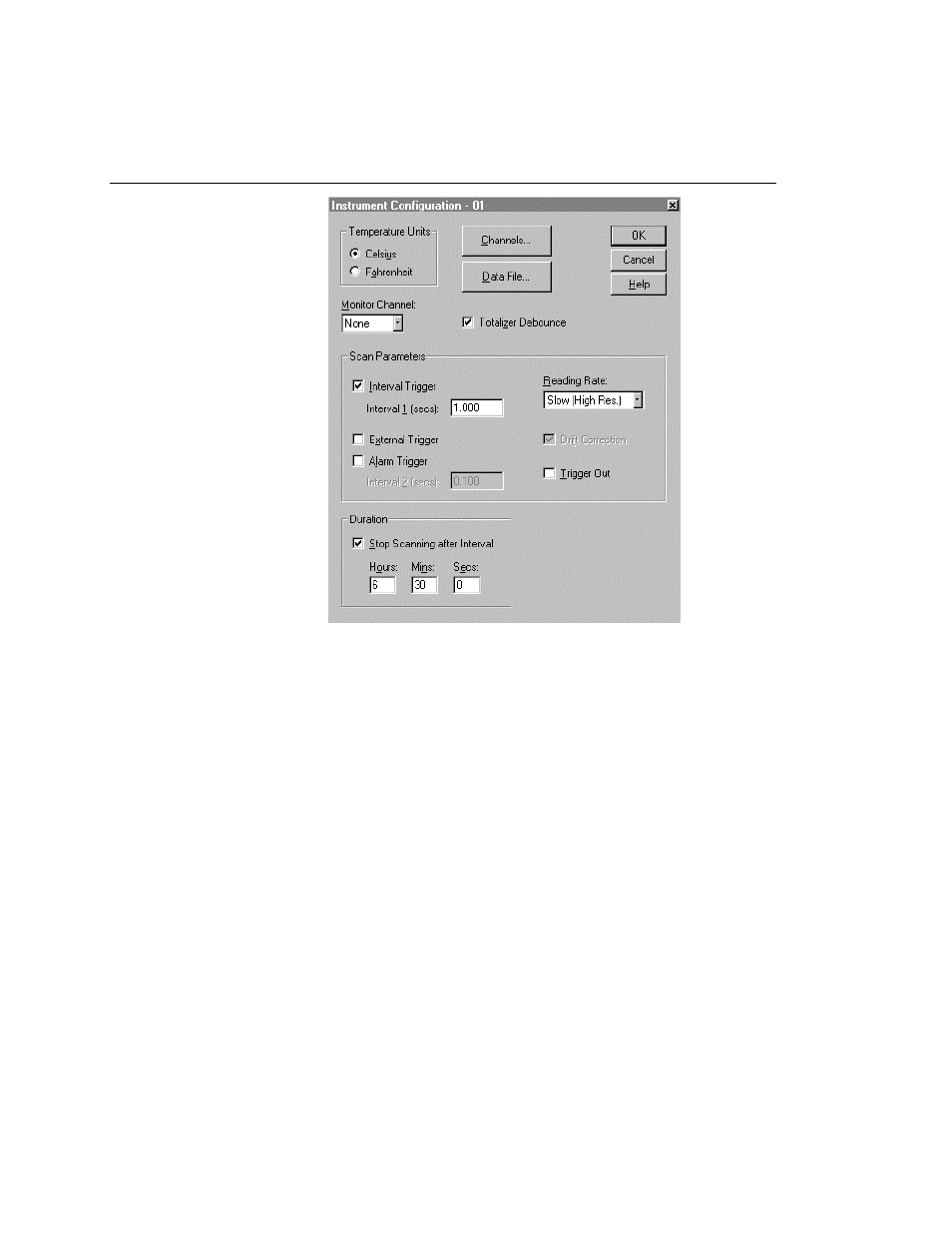

3. Check Stop Scanning after Interval. Enter the hours/minutes/seconds for the
duration. The maximum entry is 999 hours, 99 minutes, 99 seconds
(999:99:99).
4. Click OK to return to the Main Window.
Real-Time Displays 4-8.
The Real-Time displays let you monitor data as it is being collected. The
following displays are available:
•
Logging Status displays the status of data collection during real scanning or
simulated scanning.
•
Readings Table displays the latest scan data collected from the currently
selected instrument.
•
Spy triggers and collects its own measurements from up to eight channels
from any combination of instruments. These measurements are performed in
the instrument independent of any scanning.
•
Quick Plot provides a quick visual trend of eight channels.
