8-Pin RJ-45 Pinout Connections
Receptacle
Function
Pin #
Key
Pin #
TX+
1
1
TX–
2
2
RX+
3
3
4
4
5
5
RX–
6
6
7
7
8
8
8-Pin RJ-45 Pinout Connections
(Reversed TX/RX)
Receptacle
Function
Pin #
Key
Pin #
TX+
1
1
TX–
2
2
RX+
3
3
4
4
5
5
RX–
6
6
7
7
8
8
1
8
1
8
Key
Receptacle

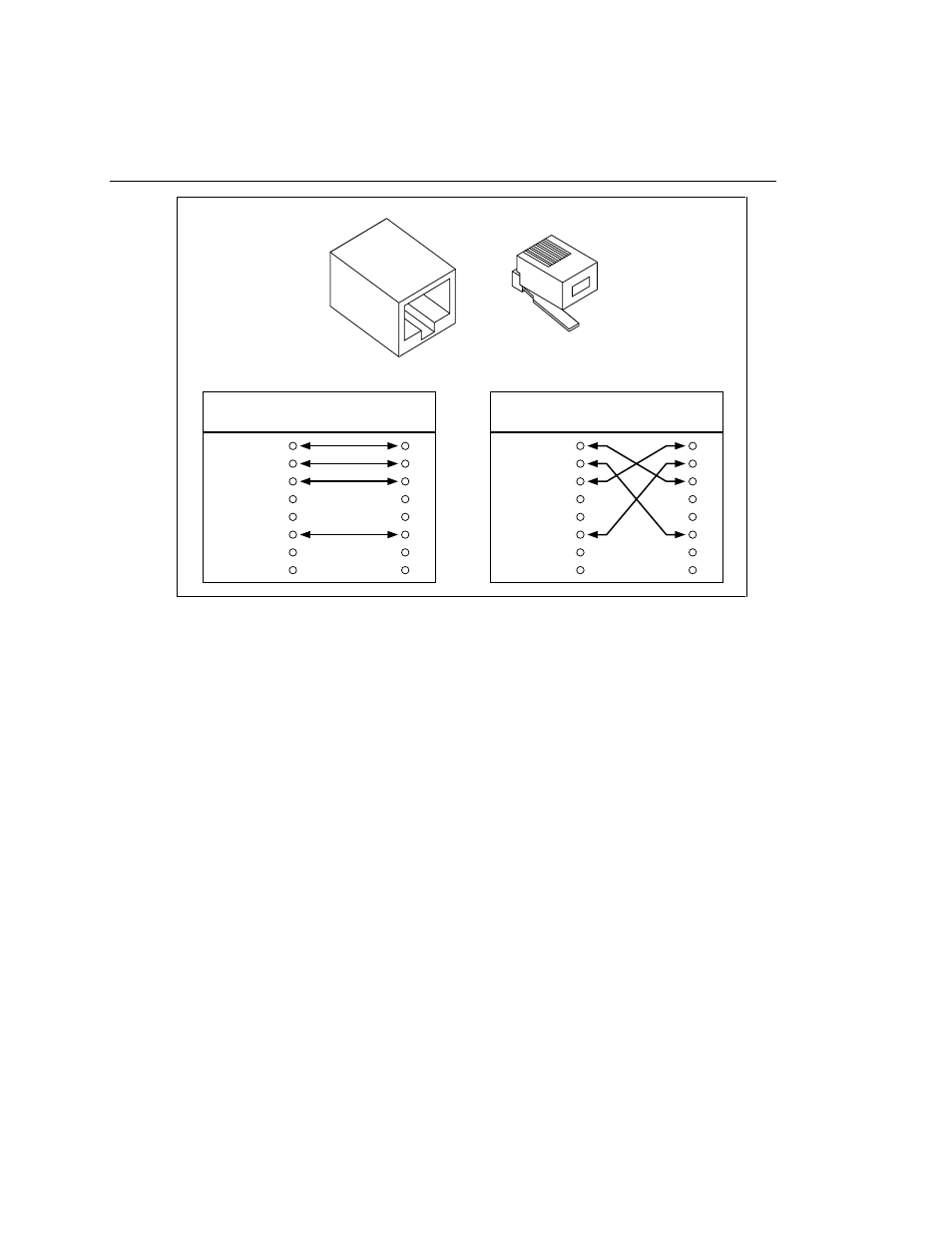

Figure H-1. 10BaseT Ethernet Cables
