BX960 S1 Operating Manual 37
Connecting devices

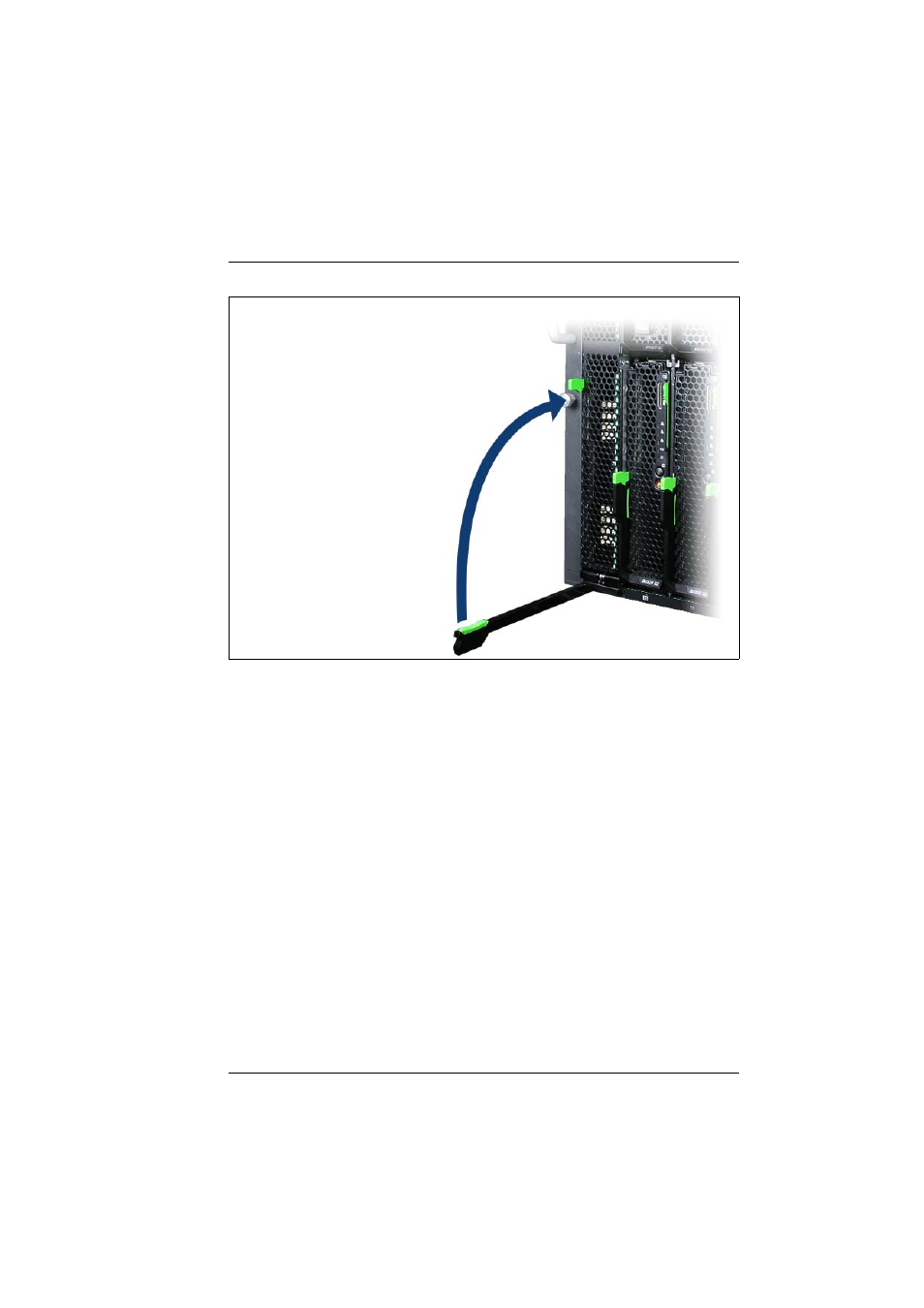

Figure 4: Locking the Server Blade
Ê Pull the release lever up until it engages.
Removal is carried out in reverse order.
V
CAUTION!
If you remove a BX960 S1 server blade and do not replace it with a new
one, you must install dummy modules to comply with the regulations
regarding electromagnetic compatibility and to ensure sufficient cooling
of the system components.
4.3 Connecting devices
All connections that are required to operate the server blade are made via the
midplane of the PRIMERGY BX900 S1 system unit. When the server blade is
installed, midplane contacts automatically establish connections to the
infrastructure modules on the rear of the system unit:
– Power supply units
– Management blade(s) for server administration
