36

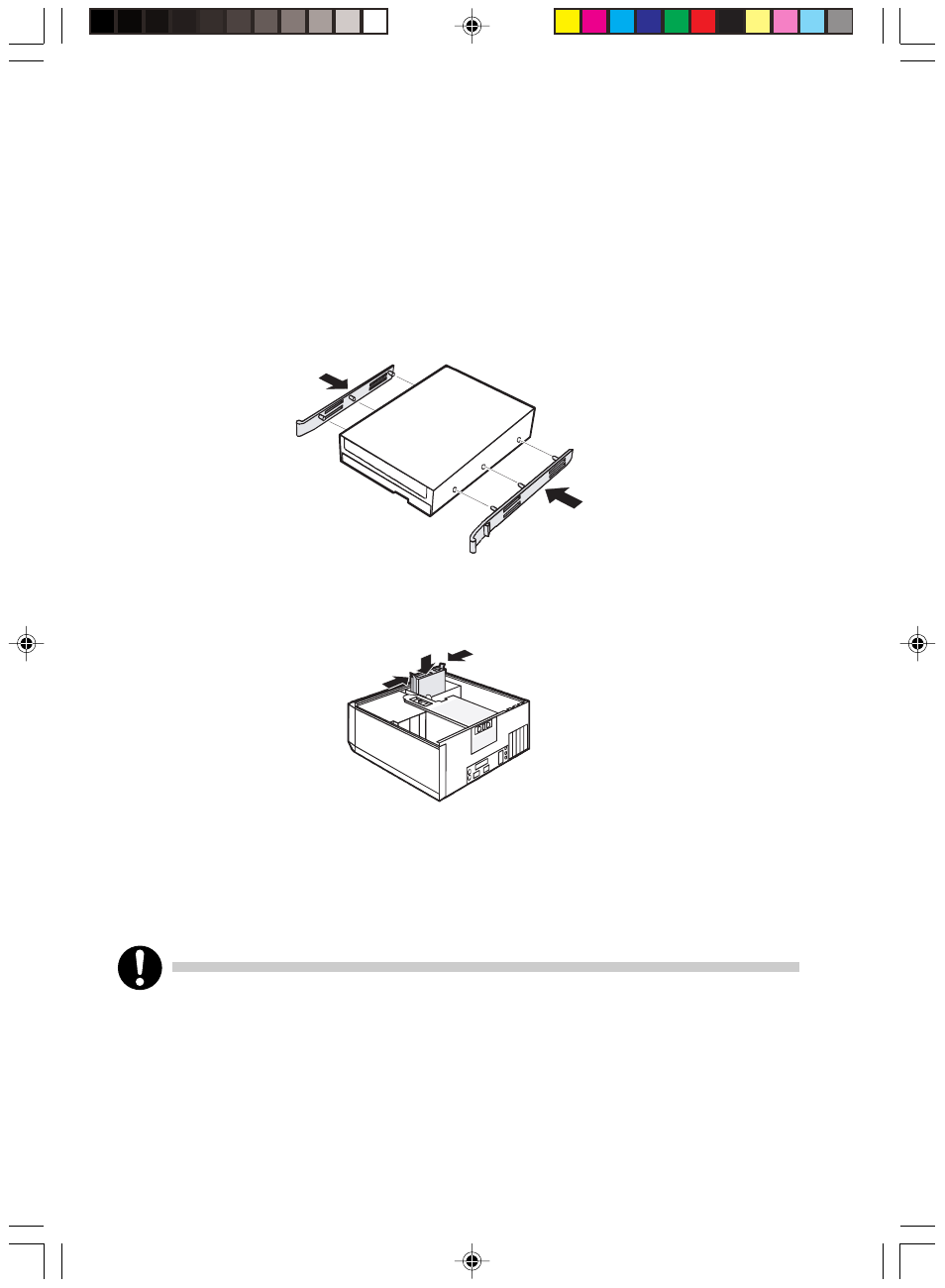

Installing a hard disk drive
1 Take the new hard disk drive out of its packaging.
2 Make the required settings (e.g. master/slave, cable select) on the drives.
3 Secure the EasyChange rails on the side of the hard disk by inserting the upper pins of
the EasyChange rail in the corresponding holes of the hard disk.
4 Connect the cables to the hard disk drive.
5 Press the EasyChange rails mounted on the hard disk drive together somewhat (1) and
slide the hard disk drive into the case in the direction of the arrow (2).
6 Close the casing (see "Closing the casing").
It may be necessary to modify the entry for the drive in the BIOS Setup.
EasyChange rails for a second hard disk drive are mounted on the drive cage.
1
1 2
