Low-Profile boards
For units with a particularly low overall height, there are so-called low-profile boards with a slot cover
with a lower overall height to match the low-profile units. To also install these low-profile boards in
normal board slots, you must mount a corresponding slot adapter beforehand.
Mounting slot adapter

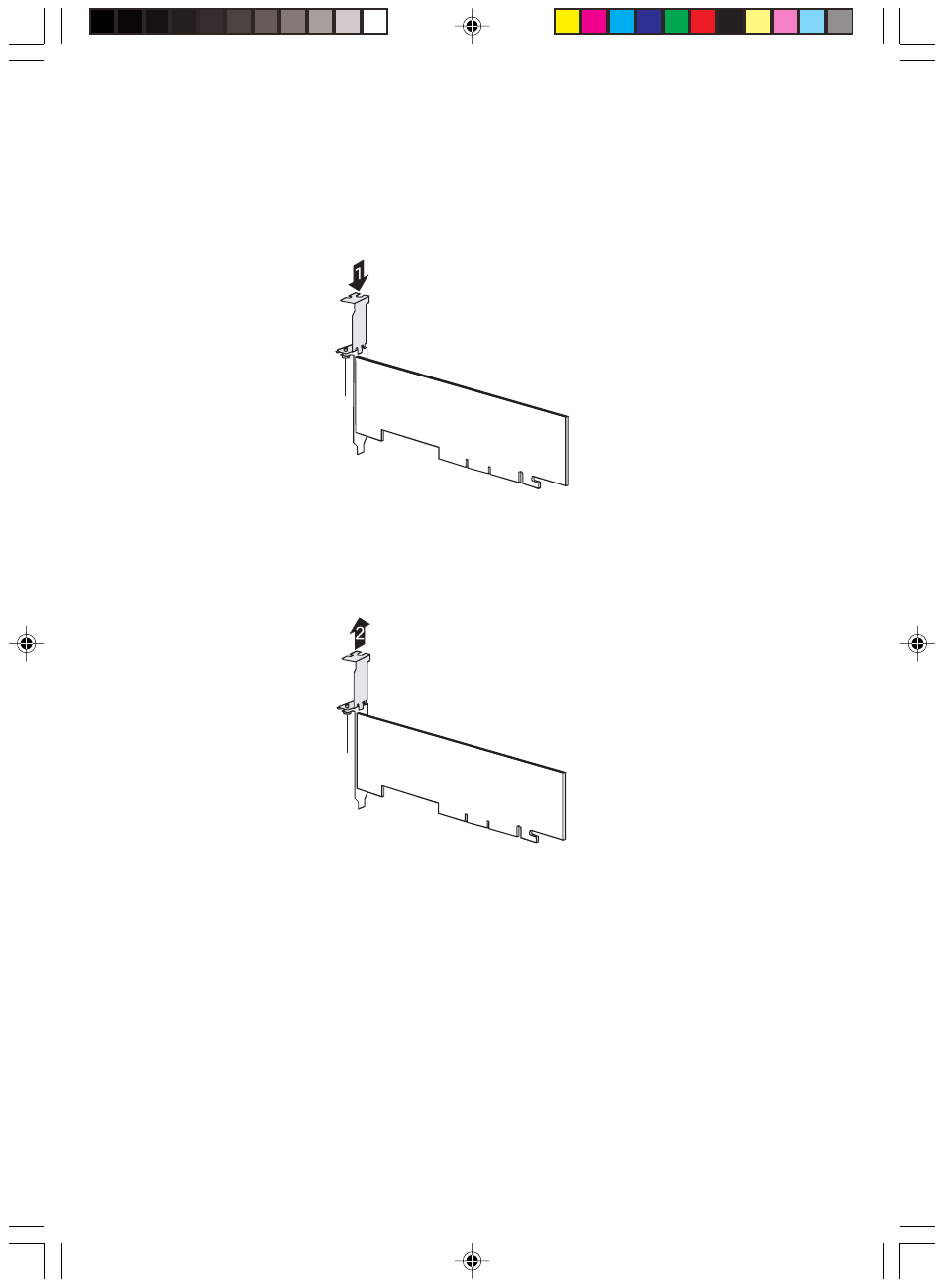

Fit the slot adapter on the slot cover of the low-profile board (1) and screw it on (2).
Now you can install the low-profile board in a suitable slot like a normal board (see the chapter
"Installing board").
Removing slot adapter
Unscrew the screw (1) and remove the slot adapter (2).
2
1
■
Installing an Additional Serial Port
An additional serial interface can be installed in a rear slot cover plate like a board. The condition is
that the system board has a free internal serial port.
Connect the cable of the additional serial port to the connector on the system board.
