C141-E093-01EN 3 - 15

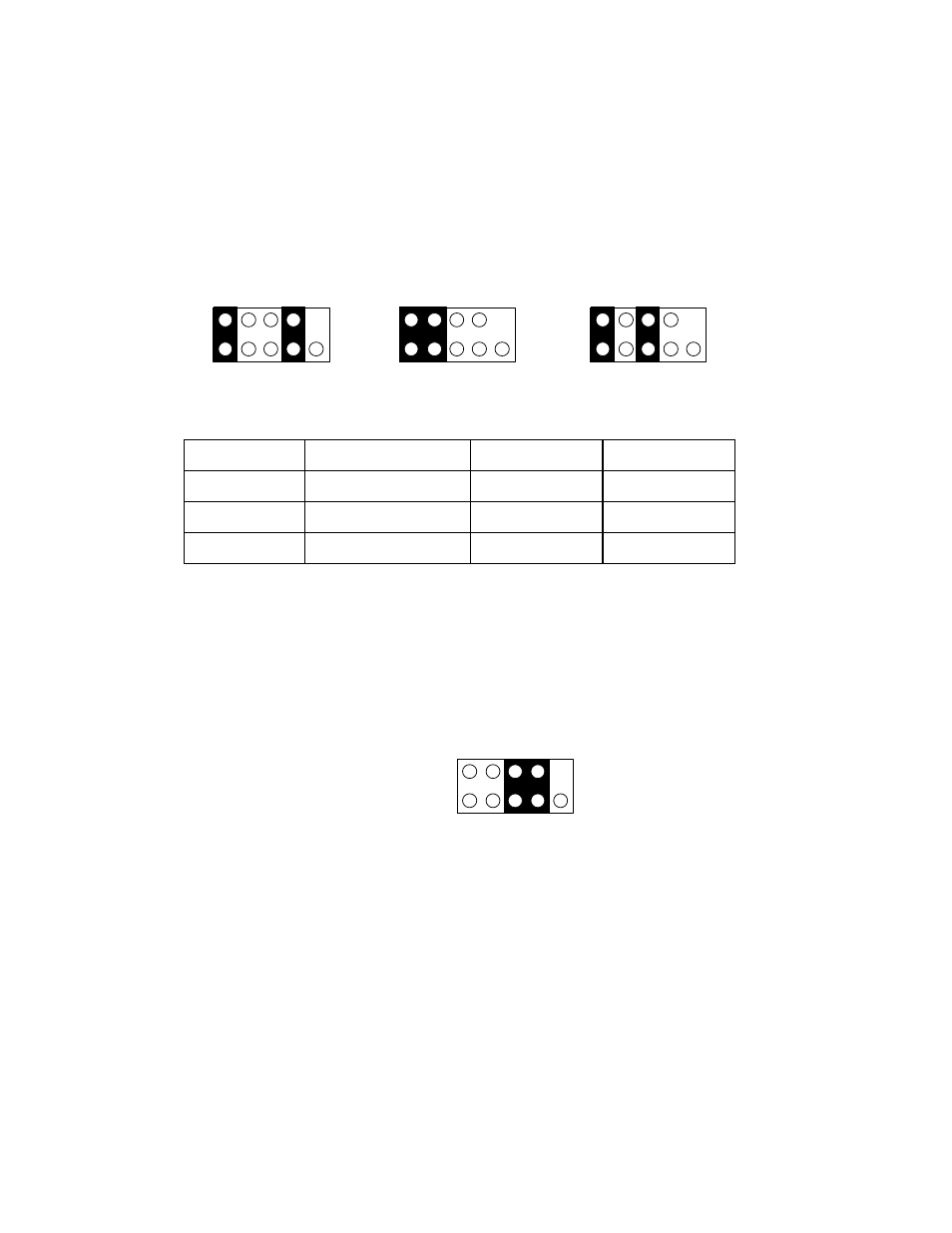

(3) Special jumper settings
(a) 2.1 GB clip (Limit capacity to 2.1 GB)
If the drive cannot be recognized by system with legacy BIOS’s which do not allow single
volume sizes greater than approximately 2.1 GB, the following jumper settings should be
applied.
Slave Device Master Device Cable Select
8 6 4 2
9 7 5 3 1
8 6 4 2
9 7 5 3 1
8 6 4 2
9 7 5 3 1
Model No. of cylinders No. of heads No. of sectors
MPE3043AE 4,092 16 63
MPE3084AE 4,092 16 63
MPE3173AE 4,092 16 63
(b) Slave present
If the slave device does not use the Device Active/Slave Present (DASP–) signal to
indicate its presence, the device is configured as a Master with slave present when the
following jumper settings is applied.
Slave present
8 6 4 2
9 7 5 3 1
