FUJITSU FM3 32-Bit Microcontroller MB9B300A - Manual (Page 23)

AN706-00044-1v0-E

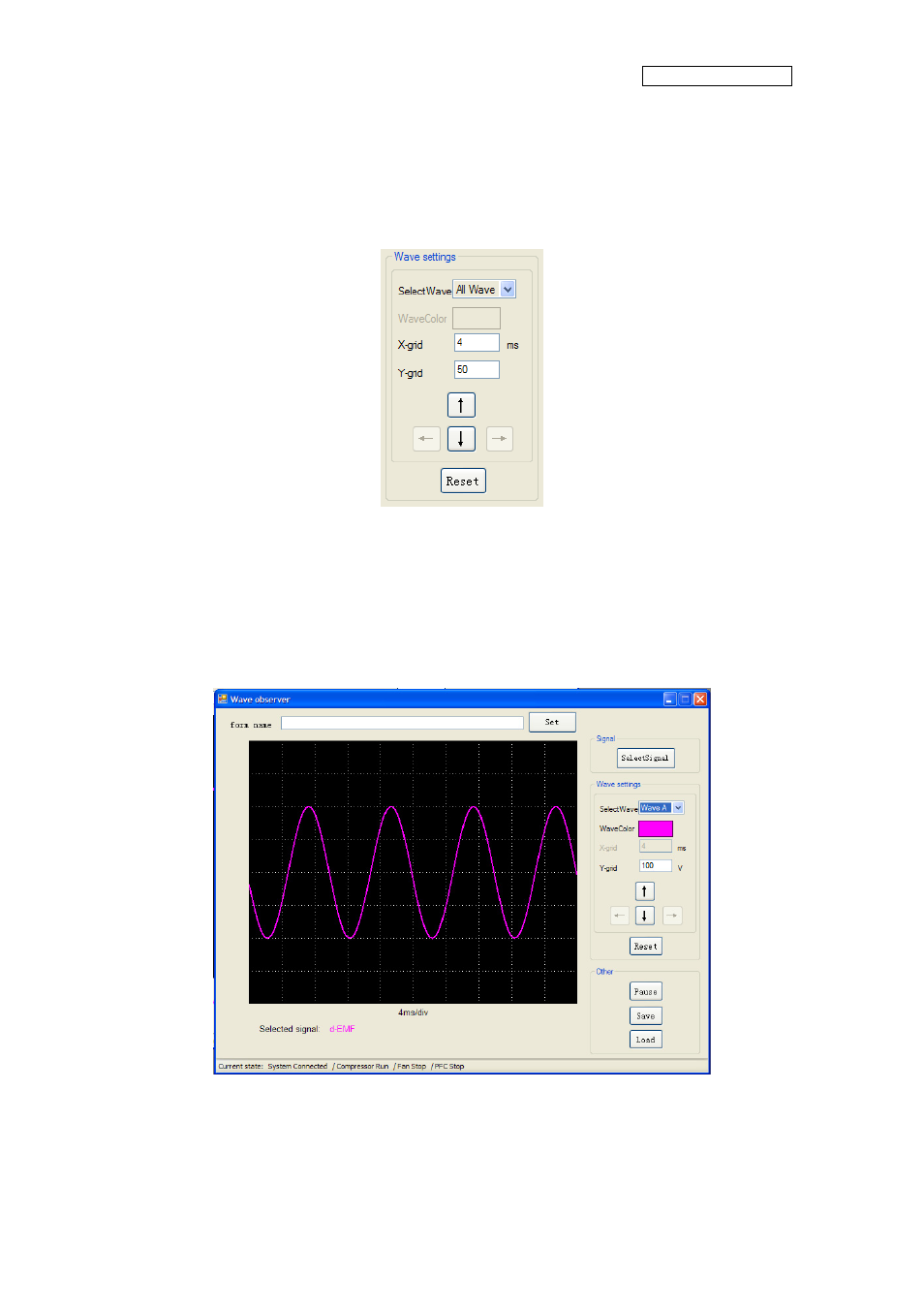

Also, you can adjust the waveform position each other.
Select the waveform you want to adjust at the selectwave menu, and push the up / down
arrow button, so the waveform can be adjusted.
You can adjust the X and Y grid unit each other.
Set the value in the X and Y gird box directly, you can set them.
When you select one waveform, you can see the unit under the window. But when you
select over two waveforms, you cannot see it. If you want to confirm the unit, please select
one wave by select wave pull-down menu and you can see the unit on the right of Y-grid
box.
22
