AN706-00044-1v0-E
5.4.2 Main window
- Name : Main window
- Function: connect control, start/stop control, function/parameter setting,
Constant/variable observation, language setting, and current state.

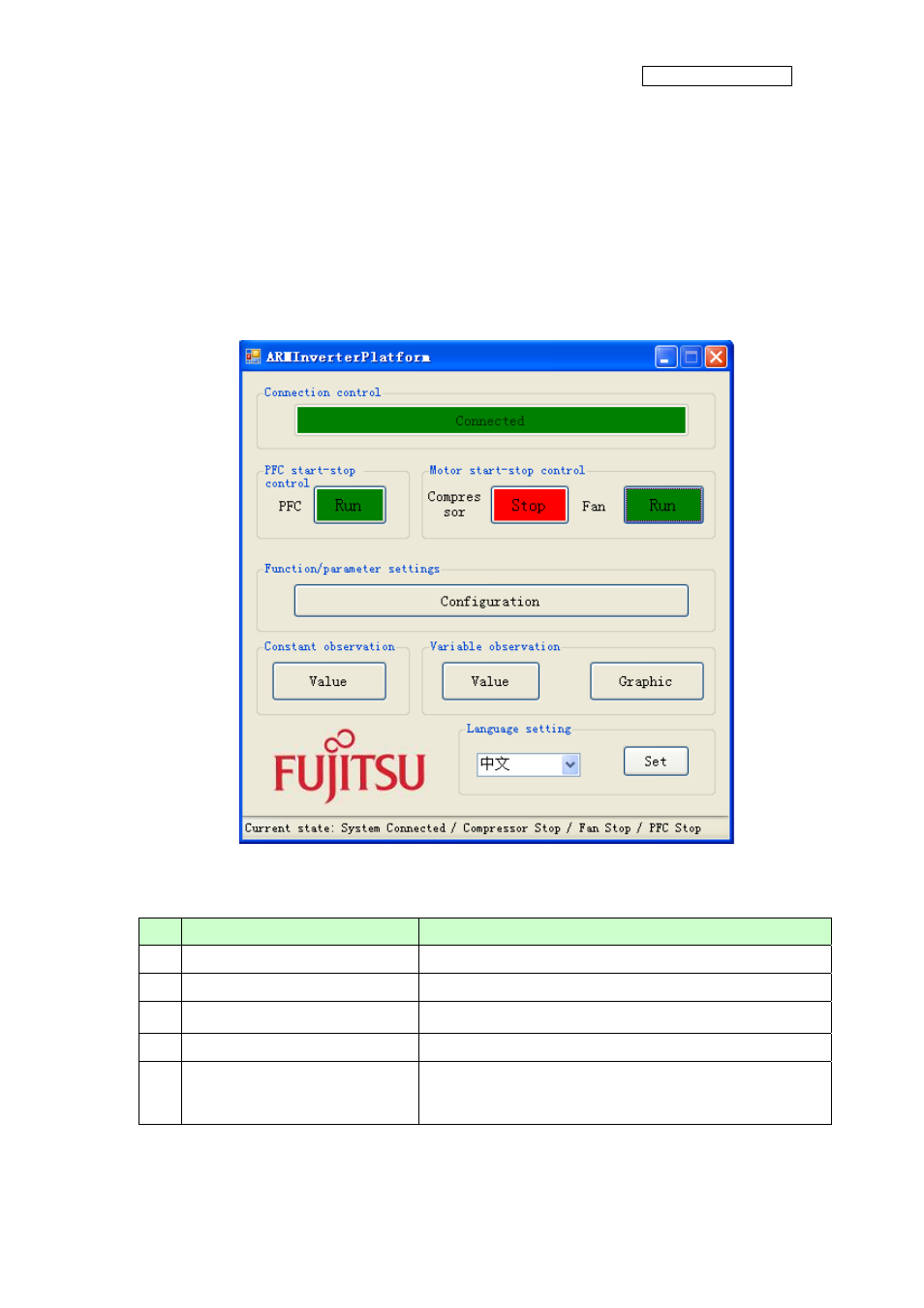

Figure 5-4: main window
Table 5-1: main window function
Name of button Specification
1 Connect Init the FTDI and Connect with MCU
2 PFC start-stop control Operate PFC module function start / stop
3 Compressor start-stop control Operate compressor start/stop
4 Fan start-stop control Operate fan start / stop
5 Function/Parameter setting
Set motor function and parameter.
If the button is pushed, the configuration window opens.
(See Chapter 4.4.2)
10
8 7 6
5
4 2 3
9
1
11
