5.4.5 Graphic

window

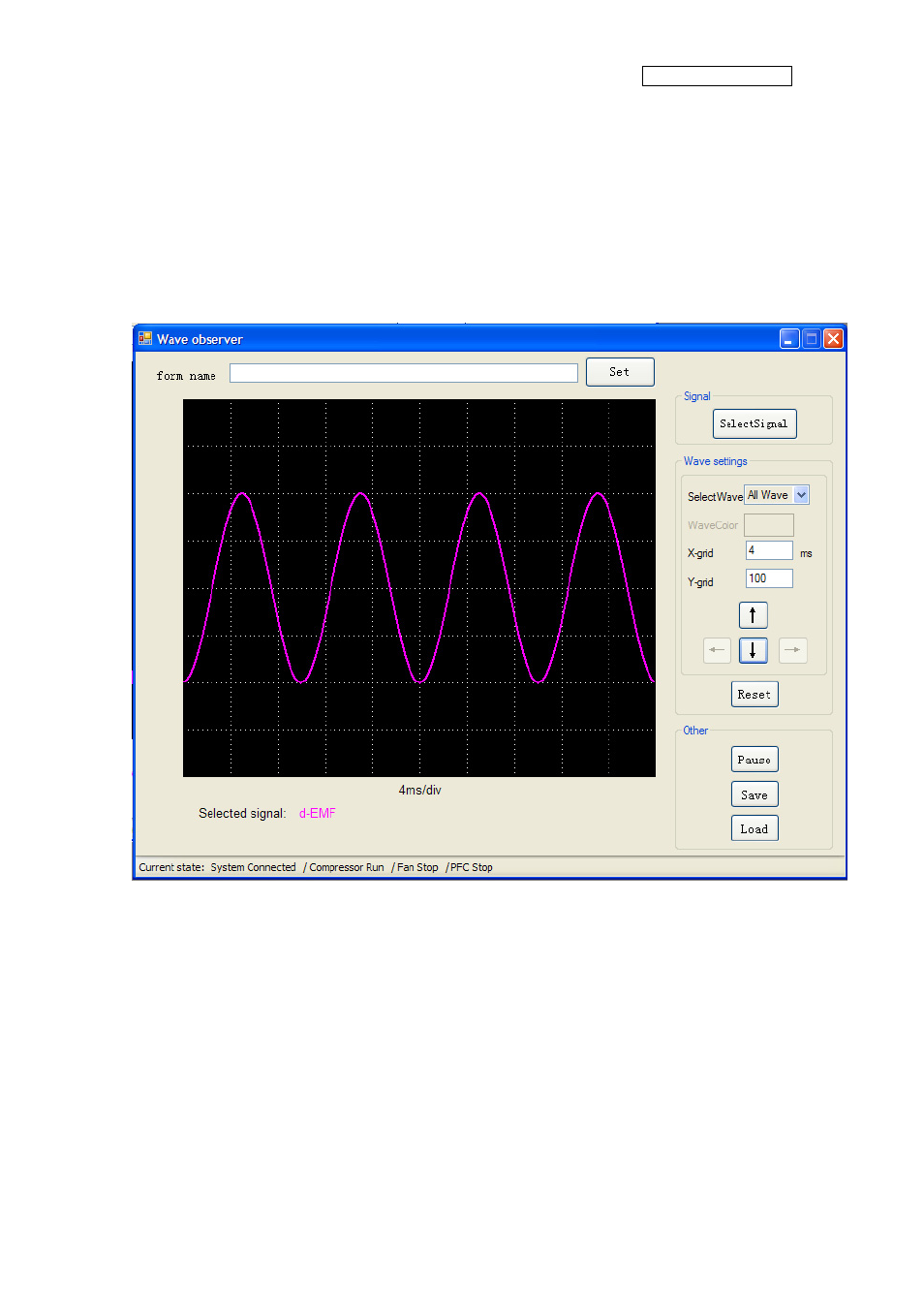

- Name : wave observer window

- Function: window name set, real-time drawing the wave, showing the selection

signal name, setting the wave station, run/pause set, save/load wave data, current

state.

7

6

5

4

3

2

1

Figure 5-7: wave observer window
