3-4
ITEM PART # COMPONENT
1 106-6708 Interface Board, SMT, Gas, non-Basket Lift, FV (U.S., Canada, Mexico)
2 826-2264 Interface Board, SMT, Gas, with Basket Lift, FV (U.S., Canada, Mexico)
3 106-6707 Interface Board, SMT, Gas, non-Basket Lift, FV (Export)
4 106-6711 Interface Board, SMT, Gas, non-Basket Lift, DV (FAST)
5 807-3366 Ignition Module, Dual-spark, Full-vat (U.S., Canada, HK, Mexico)
* 807-3365 Ignition Module, Single-spark, Dual-vat (U.S., Canada, H.K., Mexico)
6 807-1006 Ignition Module, CE/non-CE Export (except Australia, Canada, H.K., Mexico)
* 807-2971 Ignition Module (Australia)
7 806-6085 Wire, Ignitor
* 807-3483 Cable, Ignition
8 807-1878 Cable, 19" Ignition (used with 807-1006)
9 807-3484 Connector, Rajah
10 807-0833 Relay, Latch/Valve
11 807-3969 Relay, 5A (24VDC)
12 807-0834 Relay, Basket Lift, 15A, 12V
13 810-1164 Block, 1 Piece Screwless Terminal
14 816-0217 Paper, CE Single Terminal, Black, Insulating
* Not illustrated.
NOTE 1: U.S., Canadian, Hong Kong, and Mexican units use two different modules depending upon the configuration of the frypot.
Dual-vat units use two 807-3365 Single-Spark Ignition Modules. Full-vat units use one 807-3366 Dual-Spark Ignition Module. Also,
in full-vat units, only one latch relay (Item 10) is used, located in the lower right socket.
NOTE 2: Basket Lift Relays (Item 12) are present only on units equipped with basket lifts.

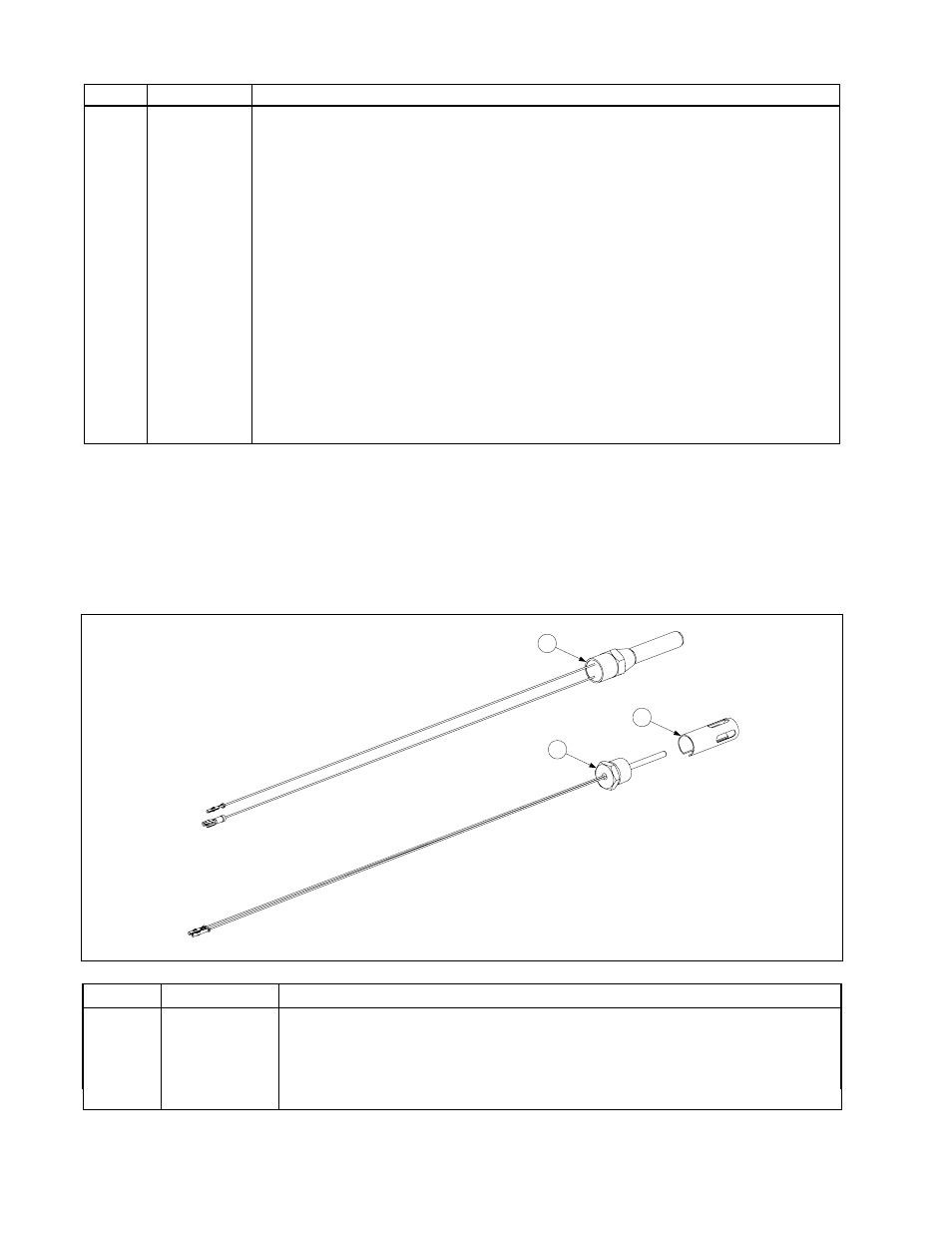

3.4 Single H50/55 High-Limit Thermostat and Temperature Probe
1
2
3
ITEM PART # COMPONENT
1 826-1177 High Limit Thermostat - 425
°F/218°C
2 806-4206 Temperature Probe
* 106-8457SP Temperature Probe, FAST
* 806-5046 Cable, FAST Probe
3 210-0681 Probe Guard
* Not illustrated.
