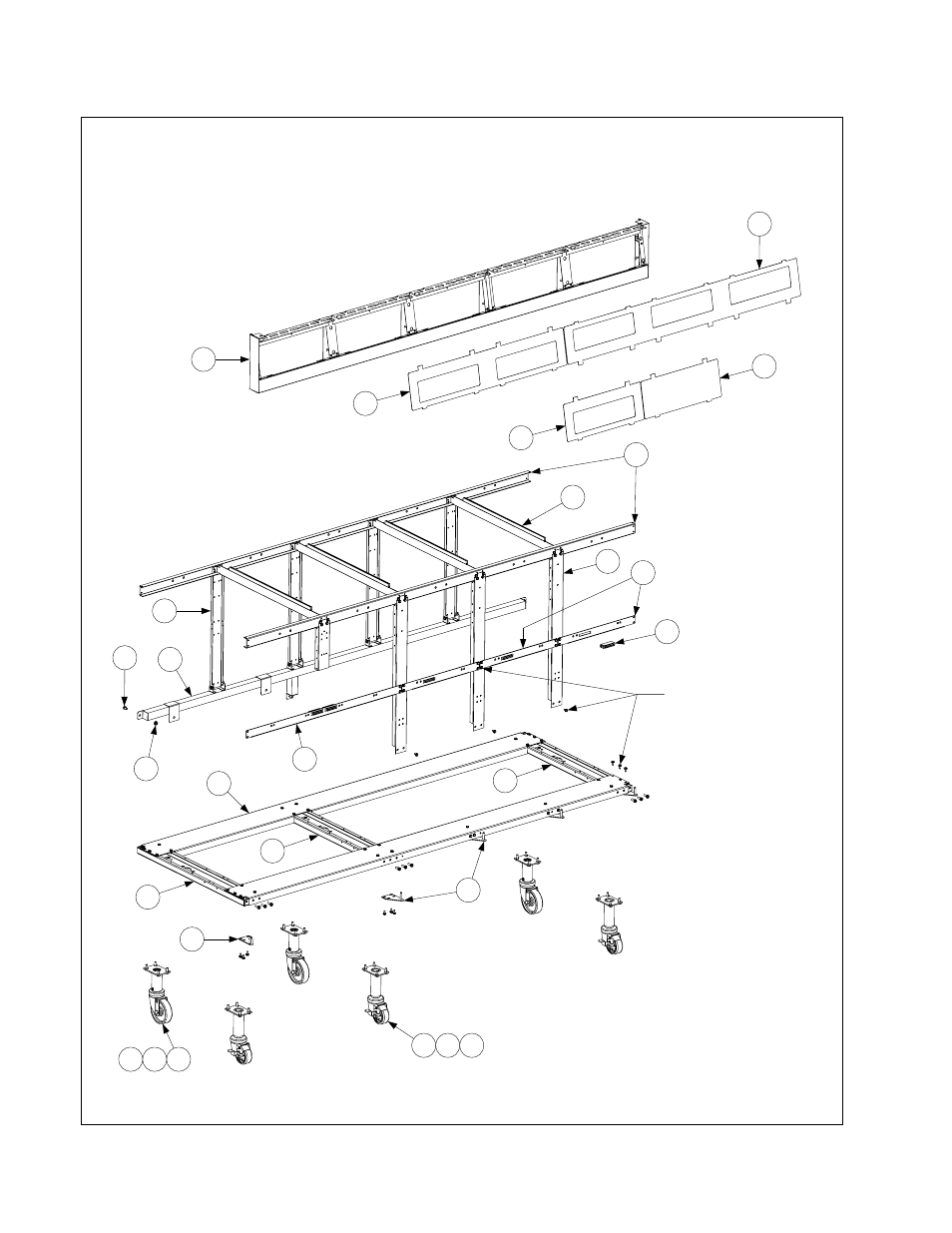

2.3.3 Non-Filter Cabinet Bases, Casters, Framing, and Related Components
NOTE: 2- and 3-station
fryers have 4 casters; 4- and
5-station fryers have 6.
See Page 2-4 for upper hinges.
The 5-station cabinet illustrated is typical of
all Pro Series (H50/55) gas non-filter
cabinets. All base and framing components
used in Pro Series (H50/55) gas non-filter
cabinets are identified, but not all
components are used in every configuration.
All cabinet screws, unless
otherwise indicated, are #10
x 1/2-inch Hex Washer
Head P/N 826-1374, sold in
packages of 25.
1
2
3
2
5
6
7
8
13
11
12
24
22
10
14
17
15
15
15
18
19
20 22 23
23 22 21
