2-35
ITEM PART # COMPONENT
1 Valve, Non-CE Gas
826-1122 Natural Gas (G20, G25)
826-1123 Propane Gas (G30, G31)
2 810-1715 Valve, CE Gas (G20, G25, G30, G31)
3 810-1041 Accessory Kit (contains parts to adapt Item 2 to specific fryer configuration)
4 806-9678SP Plug Assembly, CE Gas Valve
5 810-0494 Ferrule (Nut), Orifice
6 810-1355 Gas Line, 3/8-inch OD X 15-inch SS Flexible
7 810-1354 Gas Line, 3/8-inch OD X 12-inch SS Flexible
* 810-1353 Gas Line, 3/8-inch OD X 9-inch SS Flexible
8 811-0800 Tube, 1/8-inch OD X 12.5-inch Enrichment (cut and form to fit)
9 813-0301 Tee, 1/4-inch Male NPT to 3/8-inch Tube
10 813-0302 Elbow, 1/4-inch Male NPT to 3/8-inch Tube 90°
11 813-0304 Bushing, 1/2-inch NPT to 1/4-inch NPT Flush Reducing
12 813-0405 Nipple, 1/8-inch NPT X 2-inch
13 813-0378 Fitting, 1/8-inch NPT Cross
14 813-0340 Adapter, 1/8-inch NPT to 1/8-inch Tube
15 813-0154 Plug, 1/8-inch NPT Hex Head Pipe
16 810-1176 Tap, 1/8-inch NPT Pressure
17 813-0377 Tee, 1/8-inch NPT Female
18 813-0354 Elbow, 1/8-inch NPT X 1/8-inch Tube Compression
19 813-0016 Nipple, 1/8-inch NPT X Close
20 810-1006 Bushing, 1/4-inch NPT to 1/8-inch NPT Reducing
21 813-0495 Tee, 1/4-inch Male NPT to Female NPT
22 810-1025 Connector, 1/4-inch Male NPT to 3/8-inch Tube
23 810-1026 Tee, 1/4-inch Male NPT to Female NPT Street
24 810-0691 Tube, 1/8-inch Vent
* Not illustrated.
ITEM PART # COMPONENT
1 806-3941 Harness, Full Vat Gas Valve
2 806-3940 Harness, Dual Vat Gas Valve
3 806-9678SP Plug Assembly, CE Gas Valve

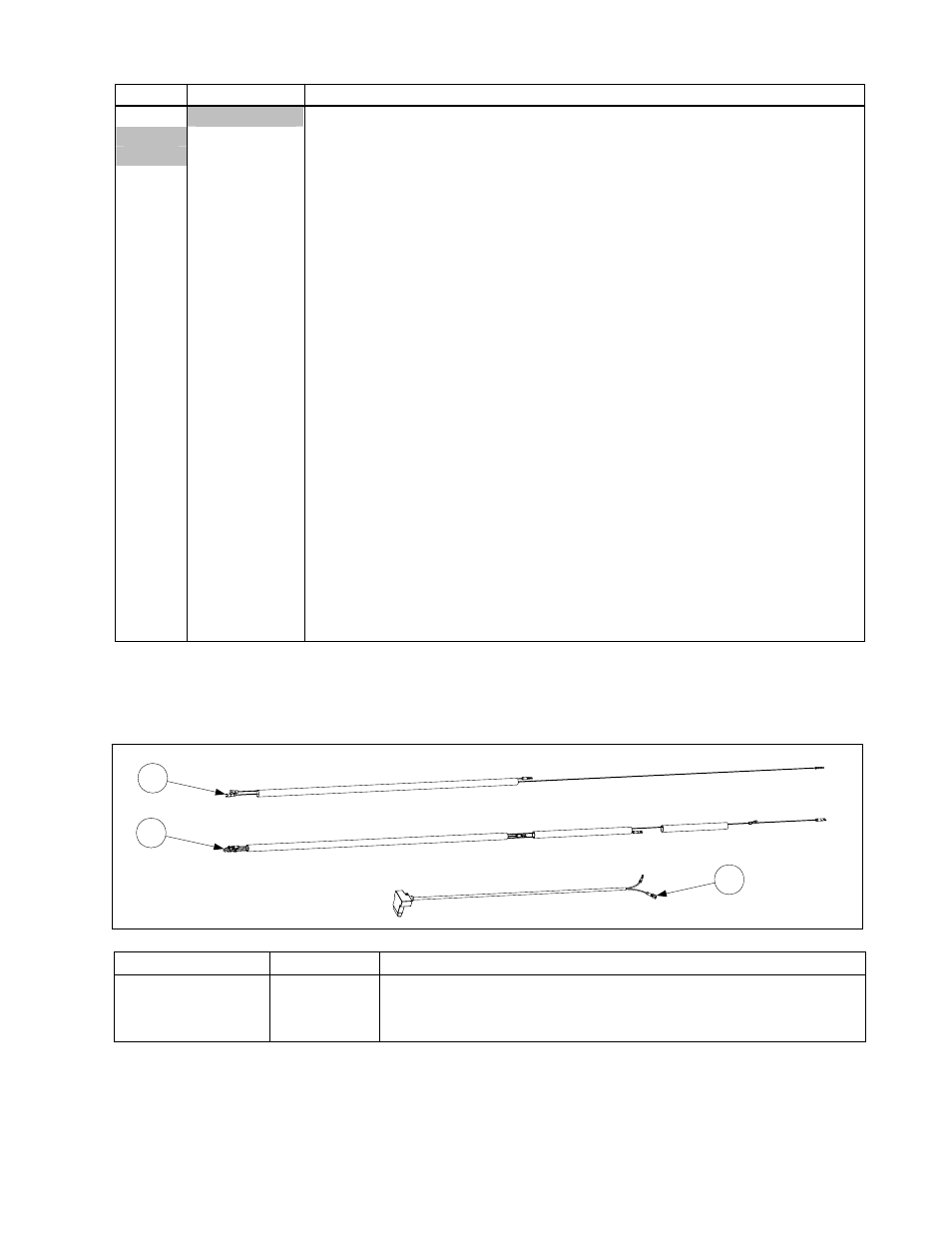

Gas Valve Wiring
1
2
3
