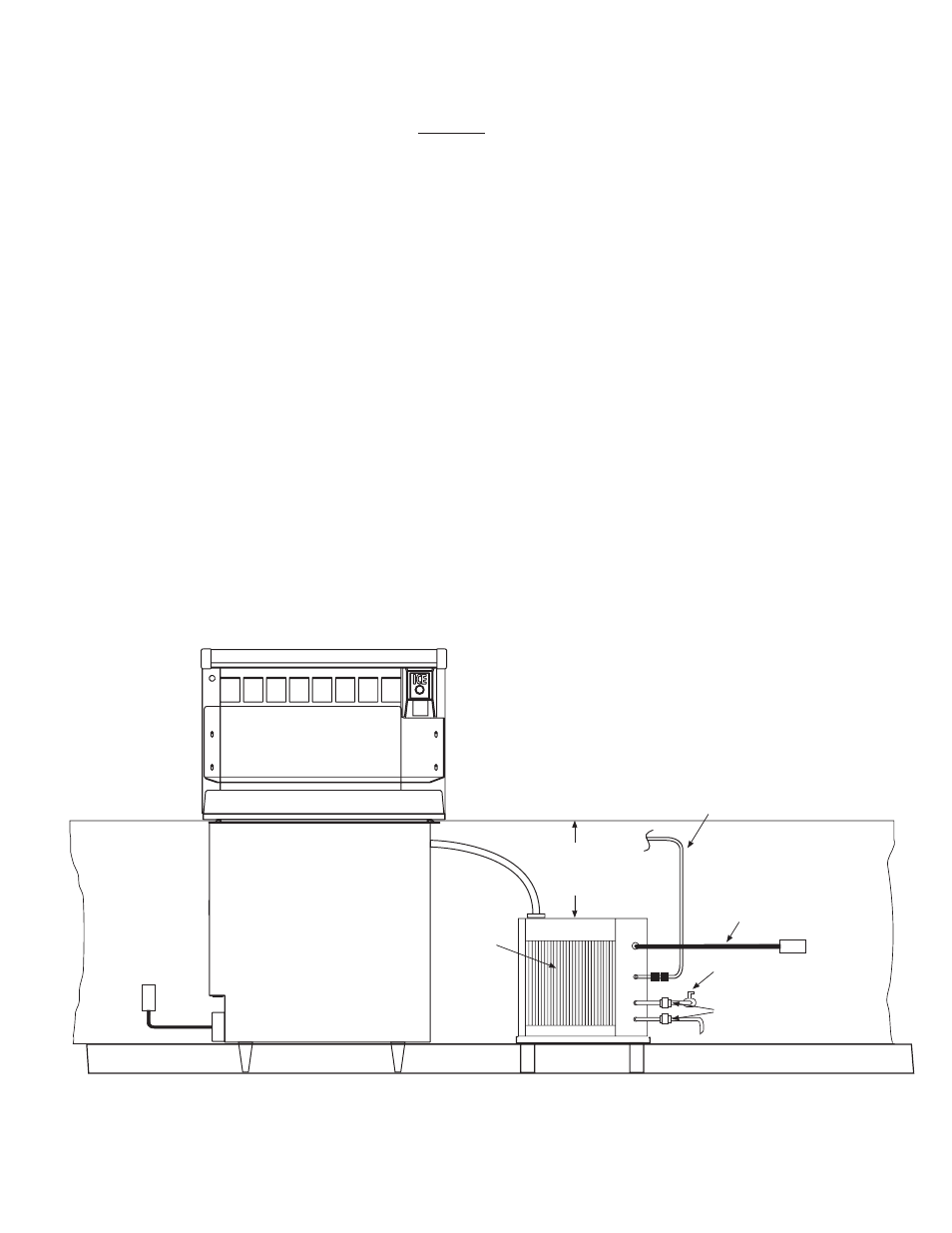

Note: Diagram intended as guide only.
Satellite-fill icemaker installation procedure
Install icemaker and rough-in utilities without optional slide-out accessory
The requirements below are for icemaker installation without the Follett slide-out accessory. These procedures
ensure that the icemaker can be easily removed as one unit for cleaning and maintenance. For installation
with the slide-out accessory, refer to instructions to install icemaker and rough-in utilities with optional slide-out
accessory.
General requirements
Front of icemaker free of obstructions, plumbing lines, electric conduits.
305mm (12") minimum clearance above icemaker for access to icemaker components.
153mm (6") minimum clearance between exhaust side of icemaker and adjacent equipment.
Do NOT weld icemaker to counter channels.
Large, removable panels in counter face to allow icemaker removal.
Machine stand accessory required for icemakers not supported on counter channels.
Connection requirements
Compression fittings for water and drain lines.
Separate drains for condenser and icemaker. Do NOT connect drains.
Power supply with 6 feet.
bin signal from
dispenser
to icemaker
water shut off
compression fittings
for water and drain lines
separate power
to icemaker
separate power
to dispenser
305mm
(12")
clearance
front of
icemaker
clear
