Follett MCC400A/W - Manual (Page 14)

14
Satellite-fill icemaker ventilation and exhaust requirements
Fabricator-supplied, custom air intake grilles must have 305mm x 305mm (12" x 12") opening yielding 645 sq. cm
(100 sq. inches) of open air space within duct perimeter. Block off any open area outside of the air duct.
Intake air requirements — air-cooled icemakers (MCC400A & C/ER400A only)
1. Check that 51mm (2") duct is installed on condenser front.
2. Cut a 305mm x 305mm (12" x 12") opening in counter face to align with duct.
3. Position icemaker to mate duct flush with back of counter opening.
4. Install supplied grille on outside of counter opening.
Exhaust air — all icemakers (MCC400A/W & C/ER400A/W)
Provide 645 sq. cm. (100 sq. in) of counter opening for exhaust air at least 457mm (18") from intake opening but
not more than 3m (10 ft) away.

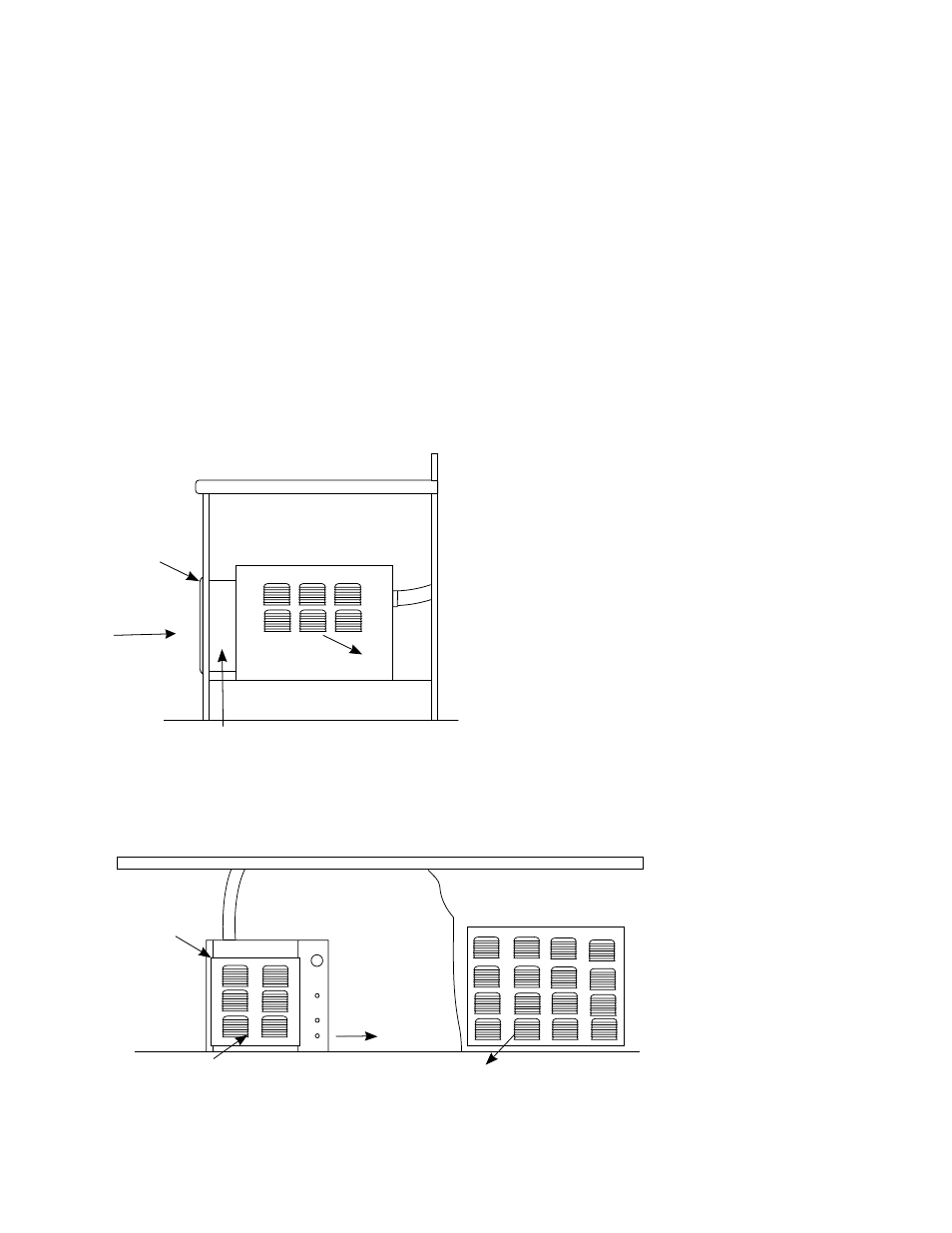

Air in
through louver
Standard 51mm
(2") duct
mates counter
opening
(behind grille) to
condenser front
Exhaust air
out side to
opening at least
457mm (18" )
from air intake
Air out through louver
Provide at least 645 sq. cm
(100 sq. inches) of counter
opening for exhaust air
Exhaust air
Air intake
Standard
louvered grille
(supplied)
Supplied 2" (51mm) duct MUST be installed
to front of icemaker and mated flush to inside
of counter face opening.
MCC400A & C/ER400A — Side view
Front view
