90 • Technical Specifications
Genie Monochrome Series-GigE Vision Camera
Notes:
Genie supports a screw lock Ethernet cable (see
"
Ruggedized RJ45 Ethernet Cables
" on page 97
).
For information on Genie lens requirements see
"
" on page 93
.
Lens flange focal distance = 17.52 mm.
The camera top also has four mounting holes in identical locations.
Connectors
• A single RJ45 Ethernet connector for control and video data to the host Gigabit NIC. Genie is available with
an industrial case supporting a screw lock Ethernet cable (see
"
Ruggedized RJ45 Ethernet Cables
" on page 97
).
• A single 12-pin Hirose male connector for power, trigger and strobe signals. The suggested female cable
mating connector is Hirose model HR10A-10P-12S.
12-Pin Hirose Connector Signal Details

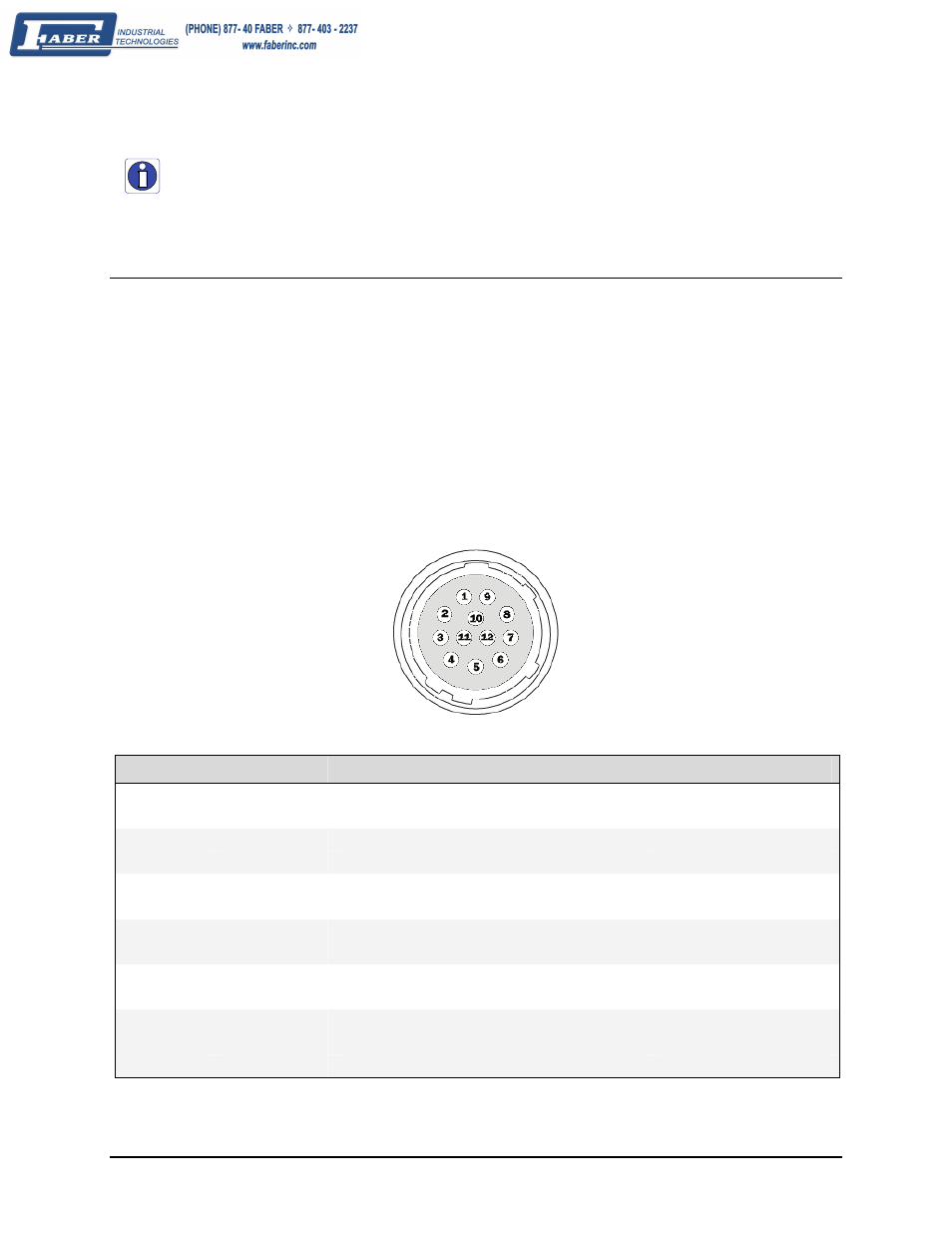

The following figure shows the pinout identification when looking at the Genie camera 12-pin male Hirose
connector. The table below the figure lists the Genie I/O signal specifications.
Pin
Direction
Genie Signal (see details below)
Notes
1 -
Power
GND
2
-
+12V DC power supply
10% tolerance
3
Out
Output 1 -
4
Out
Output 1 +
5
In
Input 1 -
RS422- or TTL GND
6
In
Input 1 +
RS422+ or TTL
7
Out
Output 2 + / Strobe +
8
Out
Output 2 - / Strobe -
9 -
Reserved
10 -
Reserved
11
In
Input 2 +
RS422+ or TTL
12
In
Input 2 -
RS422- or TTL GND
shell / shield
via cable shield
Genie chassis connects to supply earth ground
improves EMI shielding
