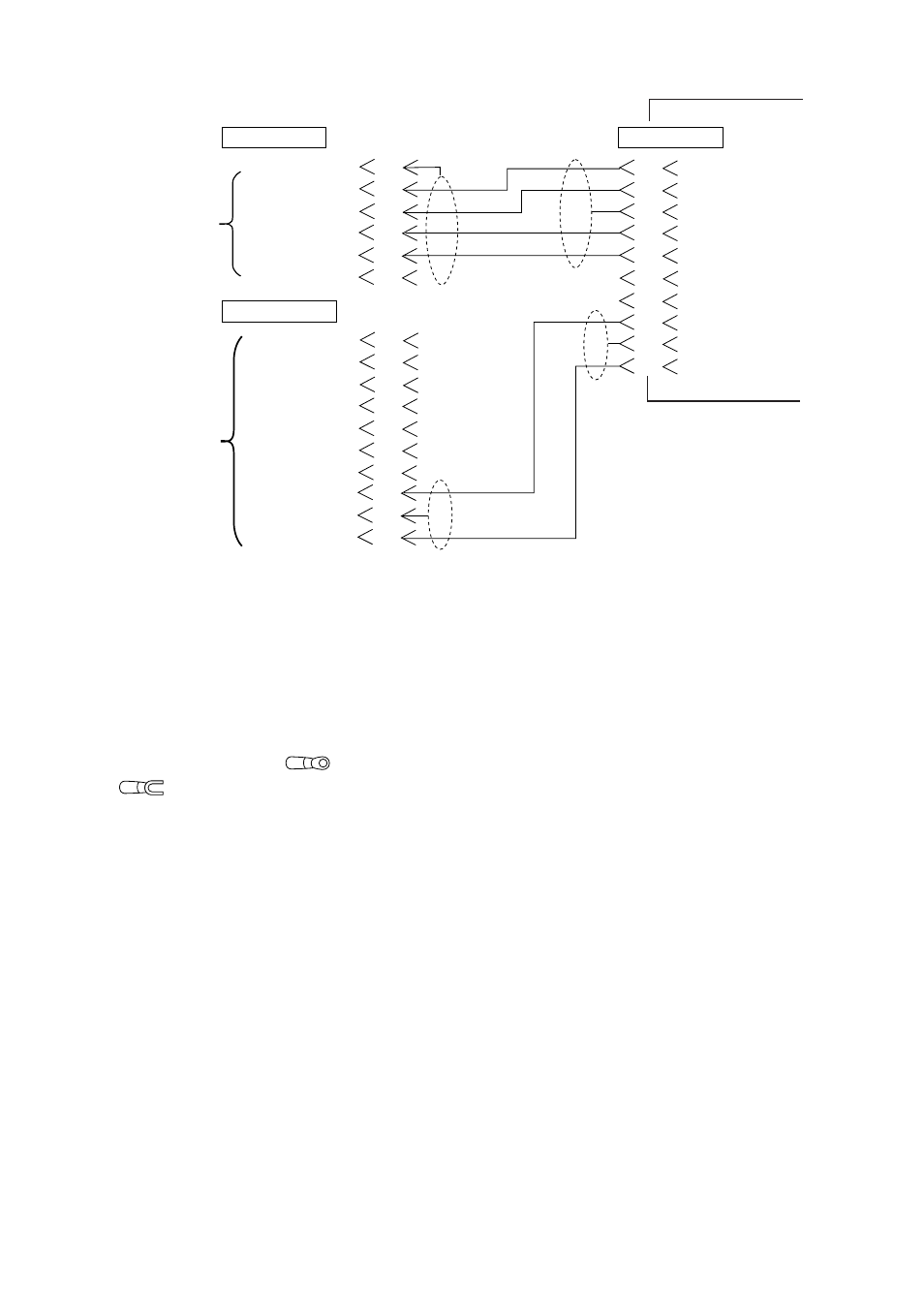

Wiring for connection of speed/water temperature sensor with cable 02S4147
Ground
Connect the ground wire to the boat's grounding bus. If the unit is not grounded, noise may result.
If noise is a problem on an FRP vessel, fasten a ground plate of 20 cm x 30 cm to the outside of
the ship's hull and connect the ground wire there.
Use a closed-type lug (
) for the connection on the display unit. Do not use an open-type lug
(
).
MJ-A6SRMD
SHIELD
TEMP
TEMP0V/SPD0V
SPD
+V
NC
1
2
3
4
5
6
MJ-A10SRMD
NC
NC
NC
NC
NC
NC
NC
XDR+
XDR SHIELD
XDR-
1
2
3
4
5
6
7
8
9
10
4
7
3
1
2
5
6
8
9
10
MJ-A10SPF
TEMP
TEMP0V
TEMP0V/SHIELD
SPD
+12V
NC
NC
XDR+
XDR-SHIELD
XDR-
GP-7000F
Speed/Water
Temp.
Sensor
Transducer
