Adjusting

1. Using a straight edge, sight the underside of the sensor relative to the underside of the hull.

The stern of the sensor should be 1-3 mm (1/16-1/8") below the bow of the sensor or parallel
to the bottom of the hull.

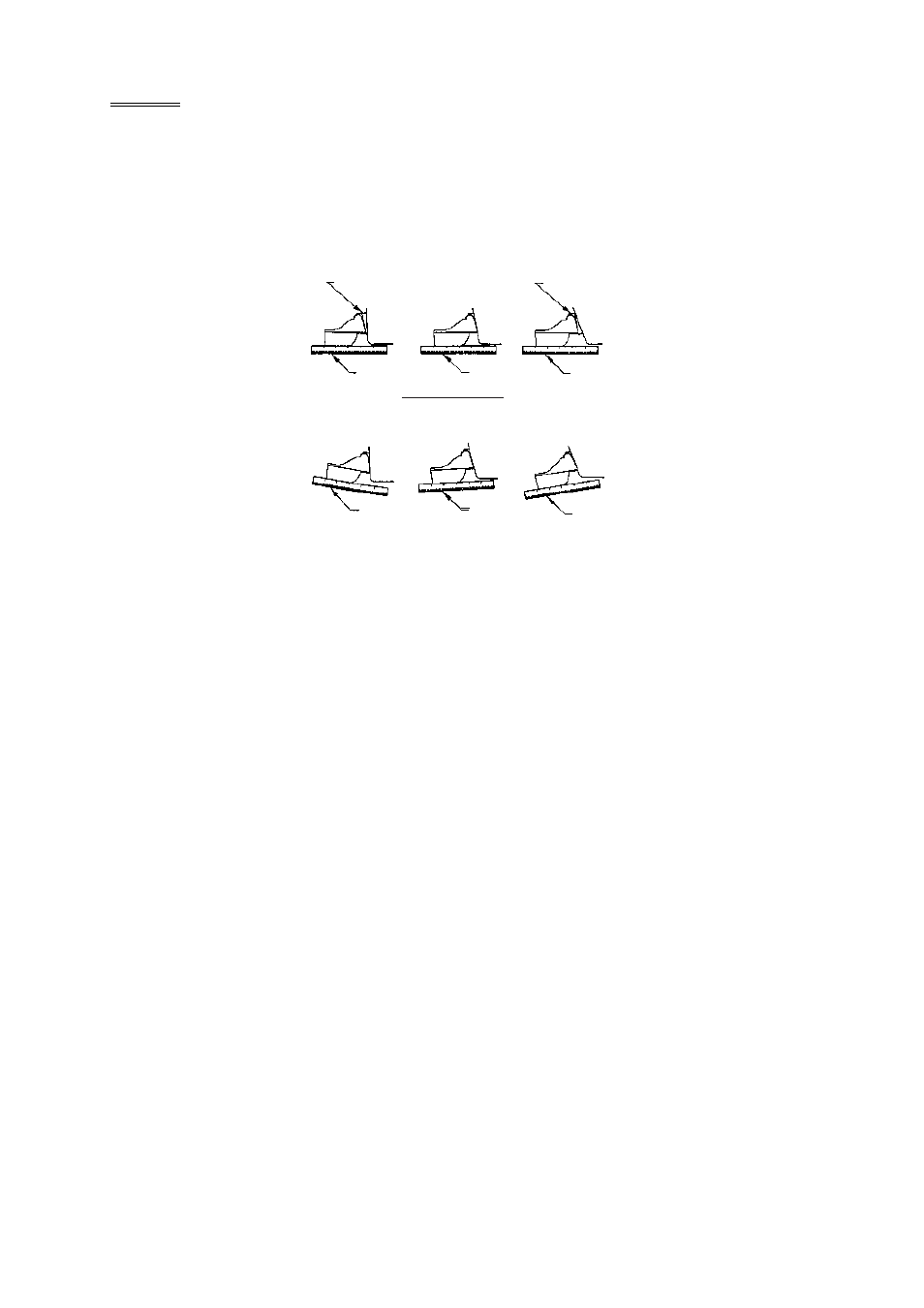

Sensor position and transom angle

Note: Do not position the bow of the sensor lower than the stern because aeration will occur.

2. To adjust the sensor's angle relative to the hull, use the tapered plastic shim provided. If the

bracket has been temporarily fastened to the transom, remove it. Key the shim in place on the
back of the bracket.
2° - 10° transom angle (stepped transom and jet boats): Position the shim with the tapered
end down.
19° - 22° transom angle (small aluminum and fiberglass boats): Position the shim with the
tapered end up.

3. If the bracket has been temporarily fastened to the transom, remove it. Apply a marine sealant

to the threads of the two #10 x 1-1/4" self tapping screws to prevent water seeping into the
transom. Screw the bracket to the hull. Do not tighten the screws completely at this time.

4. Repeat step 1 to ensure that the angle of the sensor is correct.

Note: Do not position the sensor farther into the water than necessary to avoid increasing drag,
spray, and water noise and reducing boat speed.

transom angle

NO SHIM

-18

transom angle

NO SHIM

-10

transom

angle

-22

transom

angle

shim with
taper up

shim with
taper down

parallel

slight
angle

angle
too steep

angle
reversed

YES
