LESSON 3: POWERTRAIN

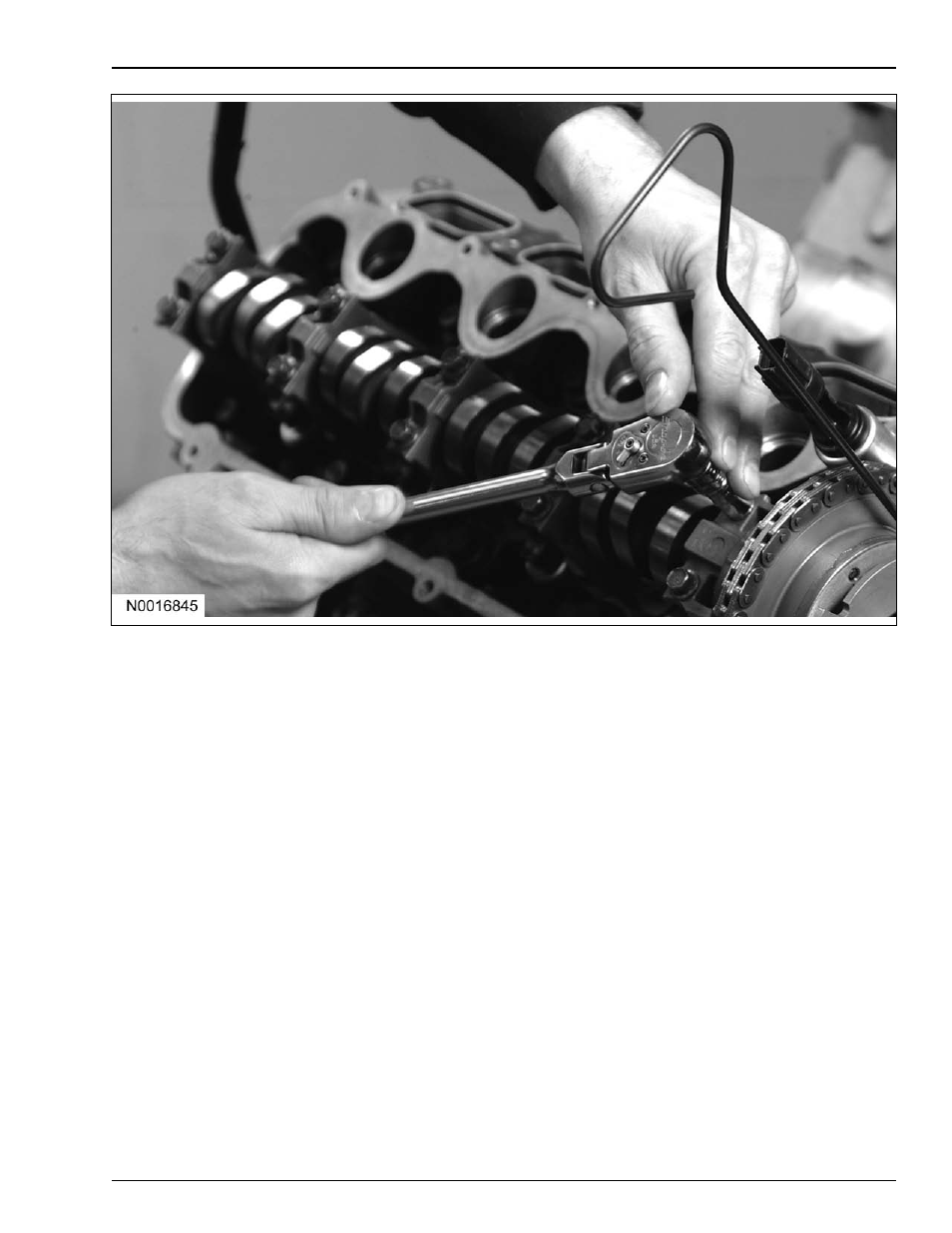

Installing the Bearing Caps
Install the camshaft bearing caps in the reverse order of removal.
NOTE: The camshaft bearing caps must be installed in their original locations.
The front thrust cap should be installed last to prevent the cap from breaking.
Next, install the phaser bolt by hand. Remove the timing chain wedge. Rotate the crankshaft pulley
counter-clockwise back to the 12 o’clock position.
NOTE: Tighten the phaser bolt to 40 Nm (30 lb-ft), plus 90 degrees.
