FORD FCSD TECHNICAL TRAINING FCS-14000-DL - Manual (Page 26)

LESSON 2: CHASSIS
Wheels and Tires
Tire Pressure Monitor
•

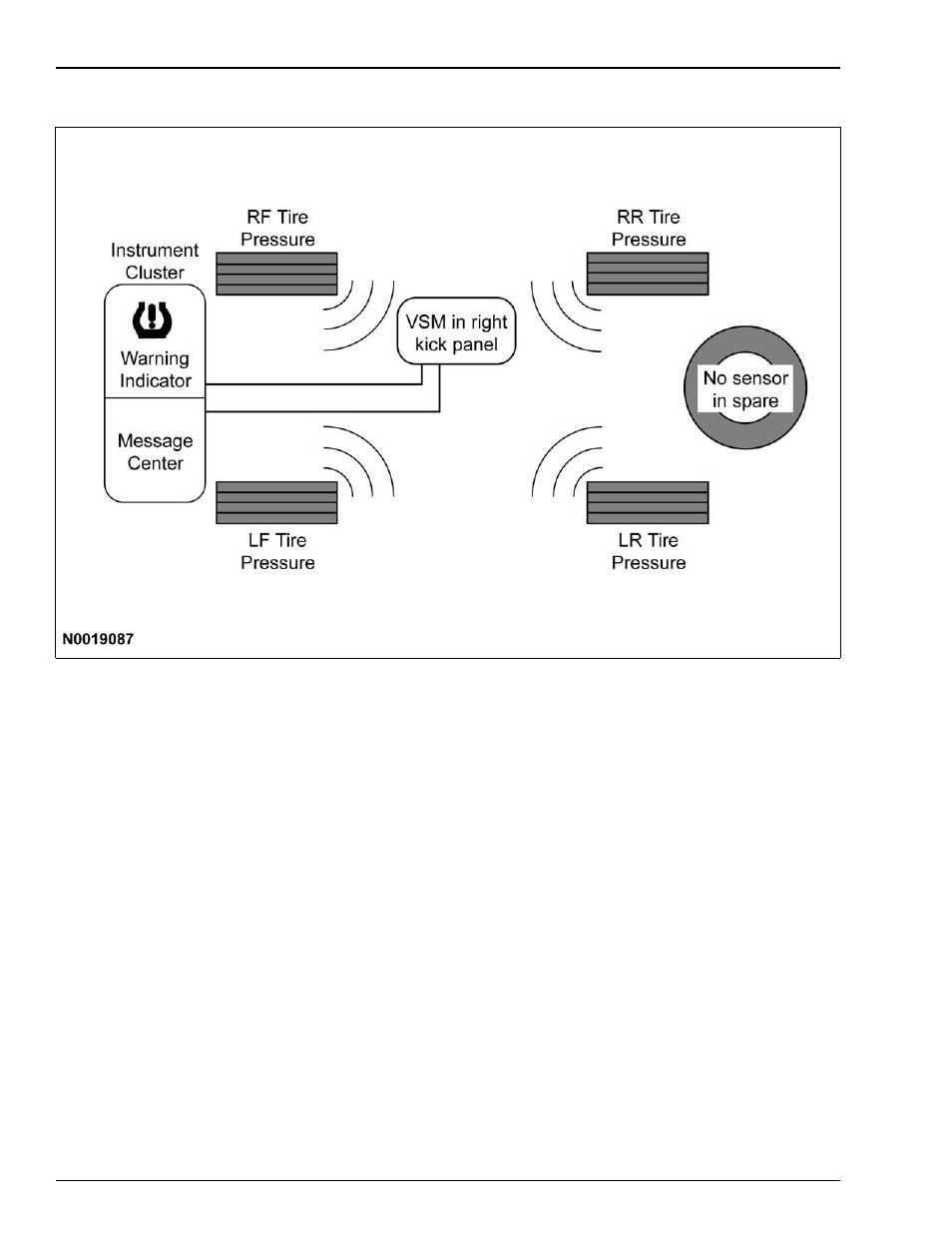

TPMS functionality is integrated into Vehicle Security Module (VSM) located in the right kick panel.
• Communicates with sensor at 315 MHz.
• Blue colored sensor (315 MHz), unique for 2005 Expedition and Navigator.
• Sensor Training process is same as previous TPM system (with exception of spare tire).
• 2004 sensor (Black, 433 MHz) will NOT work on 2005 Expedition or Navigator.
• Sensor removal and installation process is same as 2004 system.
• Cluster messages for TPMS are different than 2004.
•
A separate warning indicator is used on Expedition models that are not equipped with the optional message
center.
2005 Expedition/Navigator New Model Technician Training 02-SEP-04 2-2
