LESSON 3: POWERTRAIN

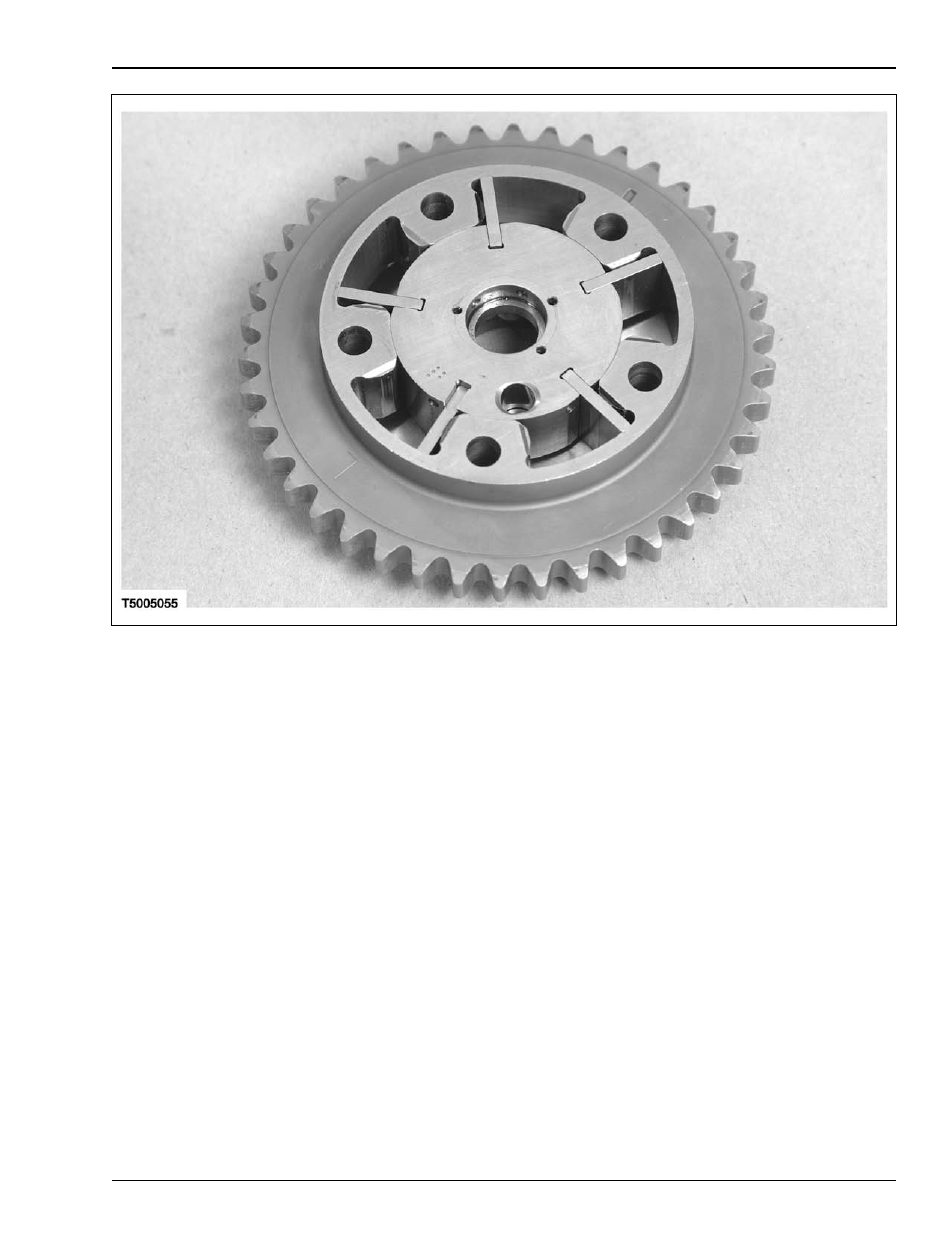

Phaser Oil Vanes
The oil vanes create oil cavities for valve-directed oil to rotate the camshaft in relation to the crankshaft.
• Oil pushes on one side of the vanes to rotate the cam in one direction to advance timing.
• Oil pushes on the other side of the vane to rotate the cam in the other direction to retard timing.
