LESSON 3: POWERTRAIN
Phaser Components

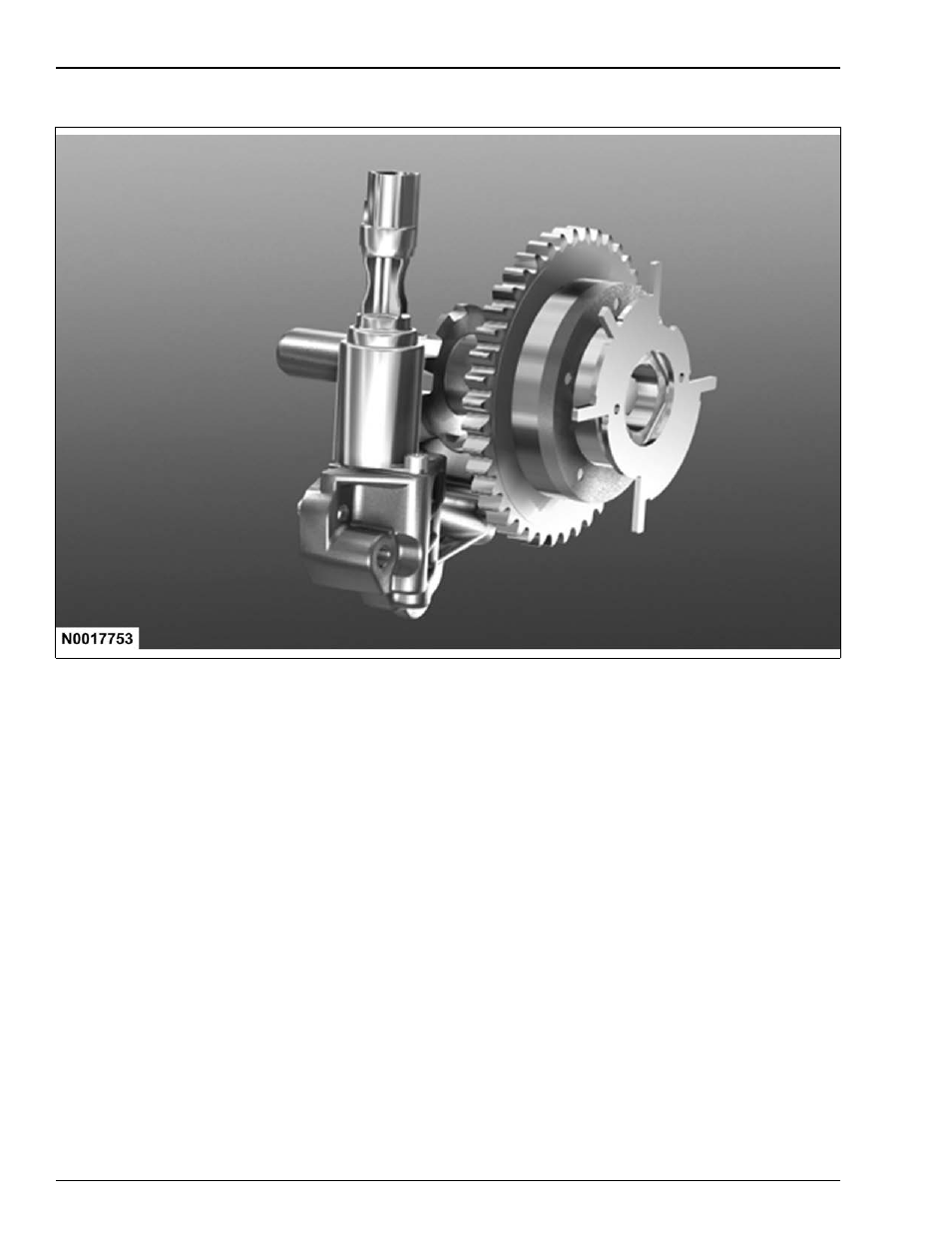

VCT Phaser
The VCT components include:
• Camshaft phaser sprockets.
• Right and left camshaft phaser sprocket assembly bolt and washer.
• VCT valve bodies (housing).
• VCT solenoids.
• Right and left camshafts.
NOTE: The phaser, phaser sprocket, vanes and the return spring are serviced as an assembly.
2005 Expedition/Navigator New Model Technician Training 02-SEP-04 3-16
