LESSON 4: ELECTRICAL

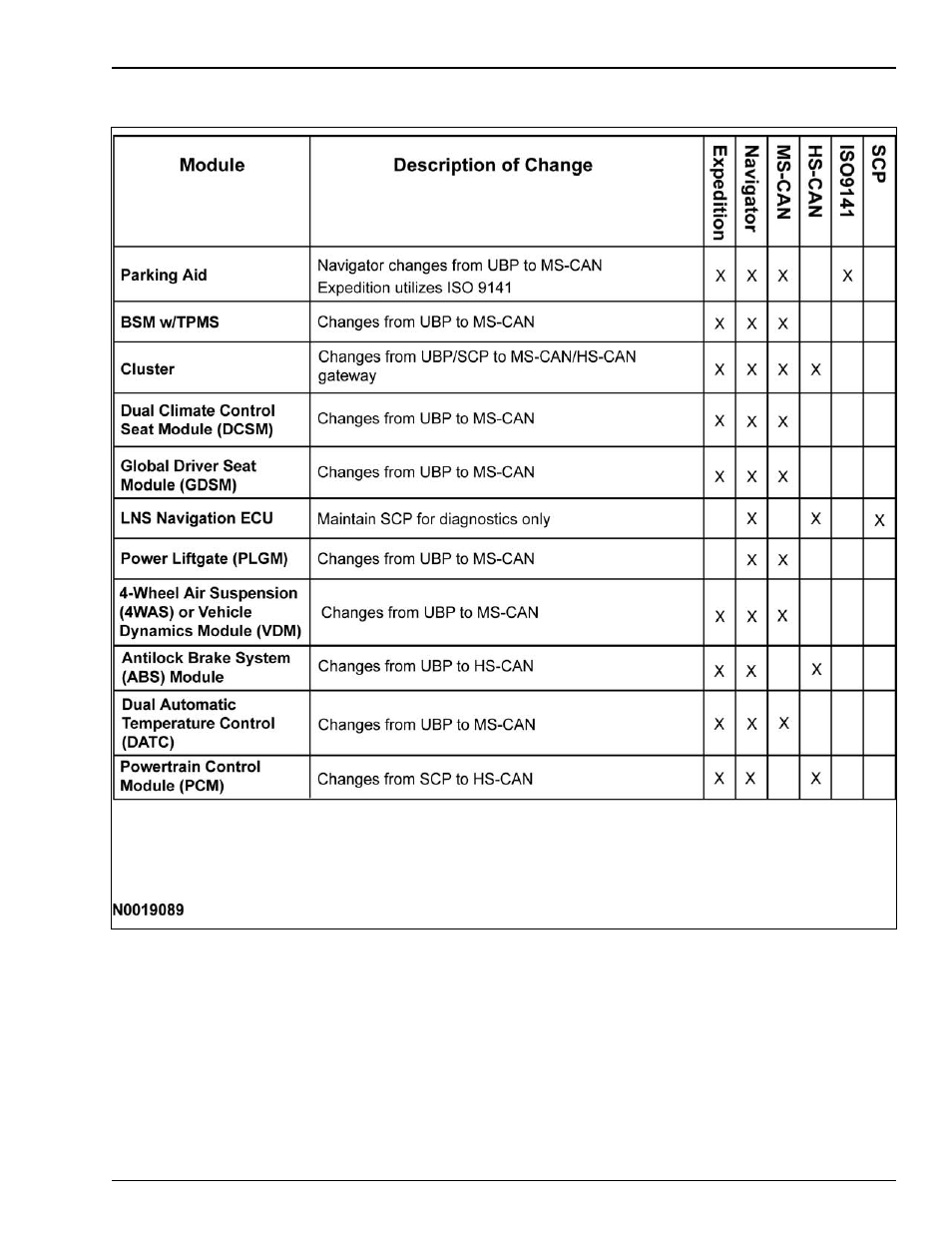

Module Communication Network
Module Communication Network
The diagnostic tool connects to each network through the Data Link Connector (DLC). This makes diagnosis and
testing of these systems easier by allowing one diagnostic tester to diagnose and control any module on the four
networks from one connector. The DLC is located under the instrument panel between the steering column and
the audio unit.
2005 Expedition/Navigator New Model Technician Training 02-SEP-04 4-7
