LESSON 3: POWERTRAIN

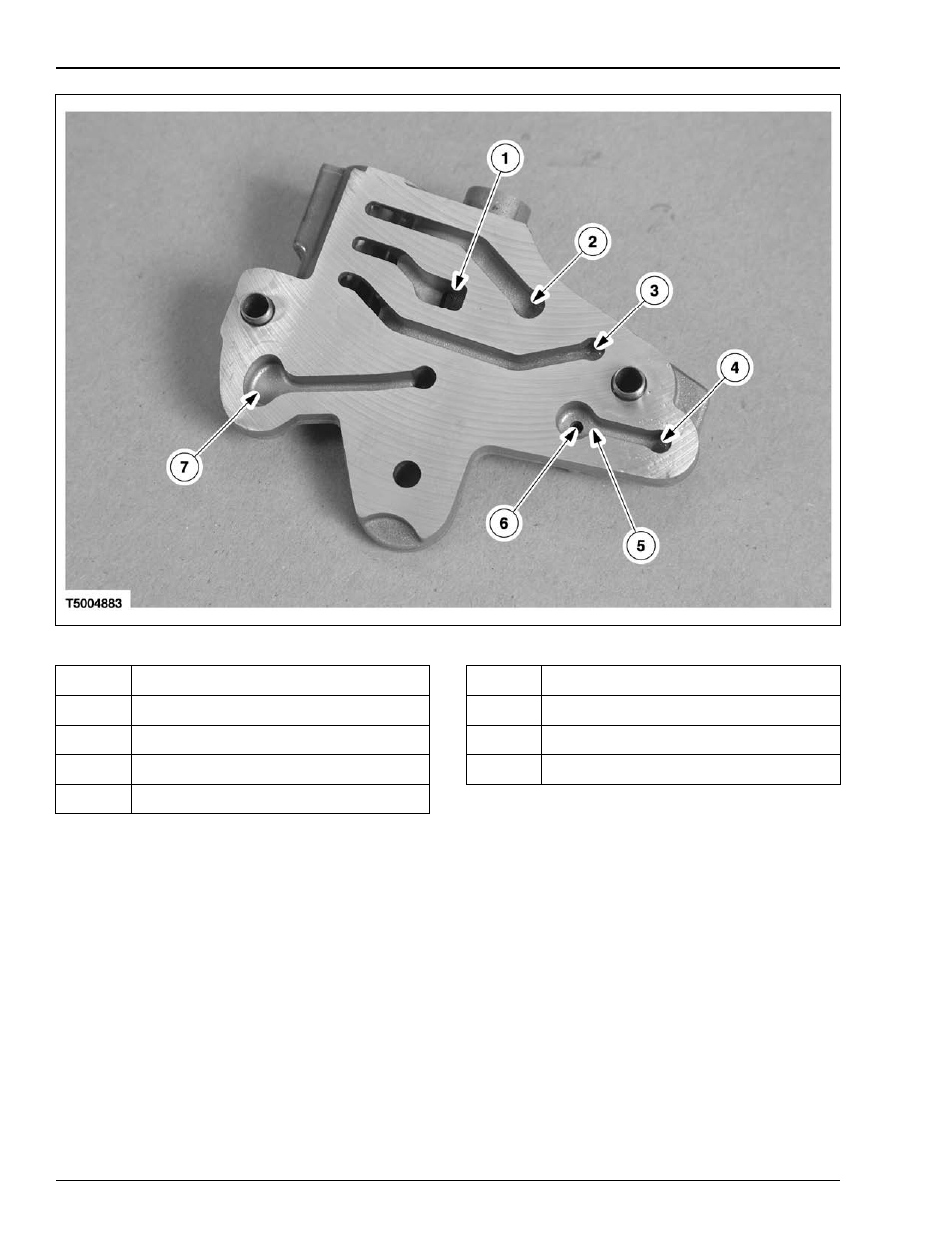

VCT Valve Body Oil Passages
Item Description Item Description
1 Solenoid filter 5 Oil passage back into head
2 Oil passage to advance side of VCT 6 Oil metering orifice
3 Oil passage to retard side of VCT 7 Oil passage from head
4 Oil passage to chain tensioner
The valve body and solenoid work together to route oil to the vanes in the camshaft phaser to operate the VCT
system.
NOTE: The solenoid filter is not removable or serviceable and is located in the valve body. The filter is designed
to be self-cleaning and should not require any service. Oil change interval recommendations are still important.
2005 Expedition/Navigator New Model Technician Training 02-SEP-04 3-20
